DF36A Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT 15POS 0.016 GOLD SMD
| Part | Insulation Material | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Current Rating (Amps) | Mounting Type | Number of Positions Loaded | Fastening Type | Features | Pitch - Mating | Pitch - Mating | Style | Connector Type | Contact Finish - Mating | Contact Type | Material Flammability Rating | Voltage Rating | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Number of Rows | Number of Positions | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

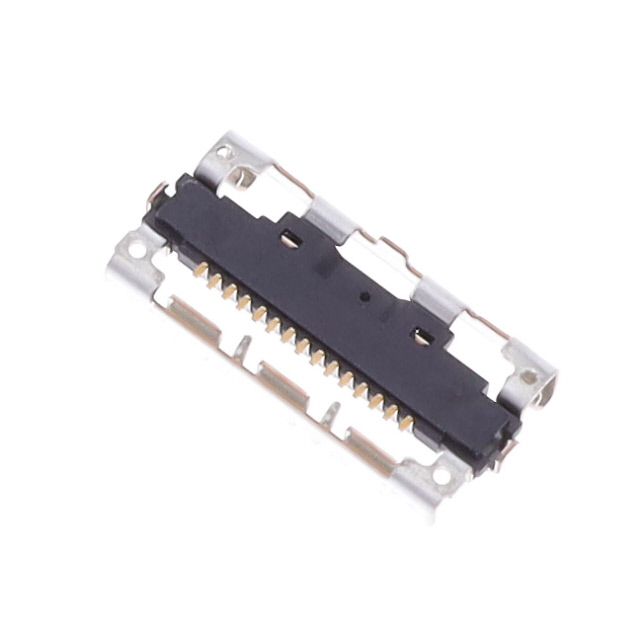

 Hirose Electric Co Ltd | Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.099 µm | 3.9 µin | Black | Varies by Wire Gauge | Surface Mount | All | Friction Lock | Metal Cover Solder Retention | 0.4 mm | 0.016 in | Board to Cable/Wire | Receptacle | Gold | Center Strip Contact | UL94 V-0 | 30 VAC | Solder | 12 Áin | 0.3 Ám | 0.059 in | 1.5 mm | 1 | 15 | Gold | 85 °C | -35 °C | ||

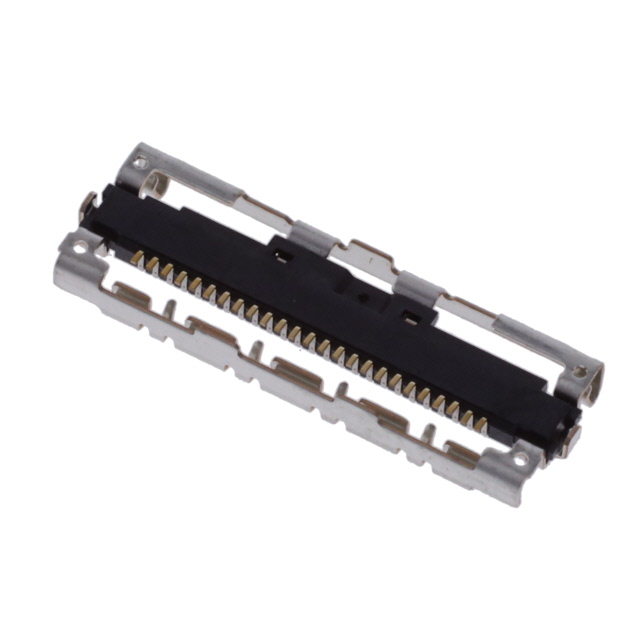

 Hirose Electric Co Ltd | Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.099 µm | 3.9 µin | Black | Varies by Wire Gauge | Surface Mount | All | Friction Lock | Metal Cover Solder Retention | 0.4 mm | 0.016 in | Board to Cable/Wire | Receptacle | Gold | Center Strip Contact | UL94 V-0 | 30 VAC | Solder | 12 Áin | 0.3 Ám | 0.059 in | 1.5 mm | 1 | 25 | Gold | 85 °C | -35 °C | ||

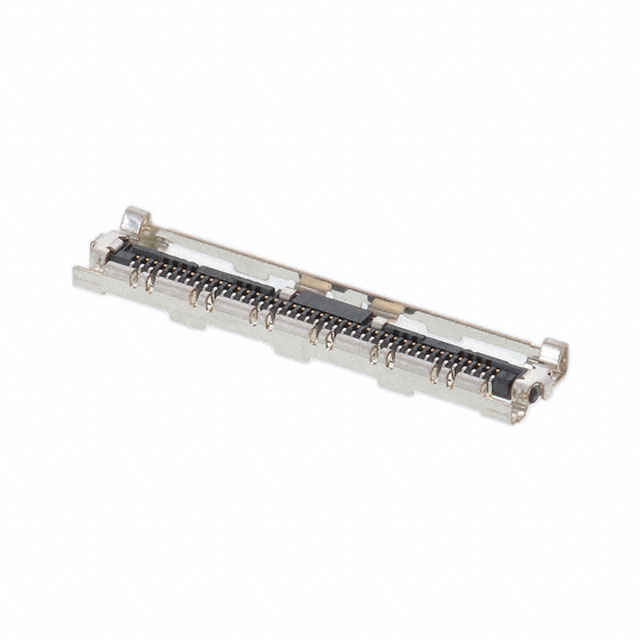

 Hirose Electric Co Ltd | Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.099 µm | 3.9 µin | Black | Varies by Wire Gauge | Surface Mount | All | Friction Lock | Metal Cover Solder Retention | 0.4 mm | 0.016 in | Board to Cable/Wire | Receptacle | Gold | Center Strip Contact | UL94 V-0 | 30 VAC | Solder | 12 Áin | 0.3 Ám | 0.059 in | 1.5 mm | 1 | 40 | Gold | 85 °C | -35 °C | ||

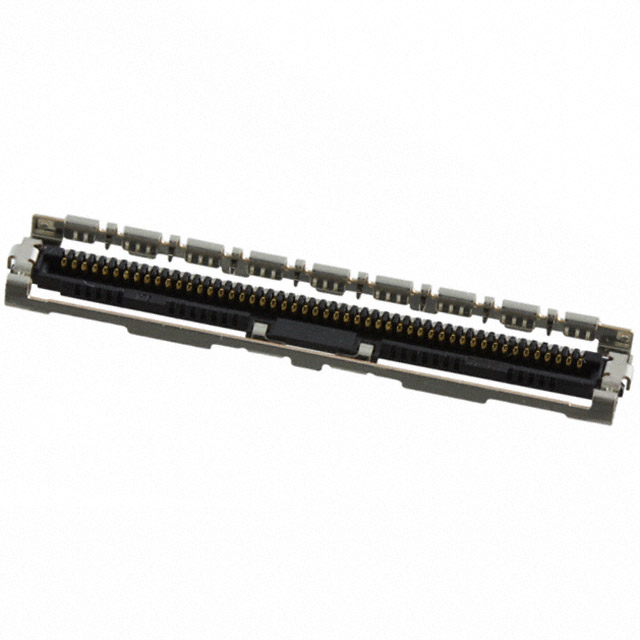

 Hirose Electric Co Ltd | Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.099 µm | 3.9 µin | Black | Varies by Wire Gauge | Surface Mount | All | Friction Lock | Metal Cover Solder Retention | 0.4 mm | 0.016 in | Board to Cable/Wire | Receptacle | Gold | Center Strip Contact | UL94 V-0 | 30 VAC | Solder | 12 Áin | 0.3 Ám | 0.059 in | 1.5 mm | 1 | 50 | Gold | 85 °C | -35 °C | ||

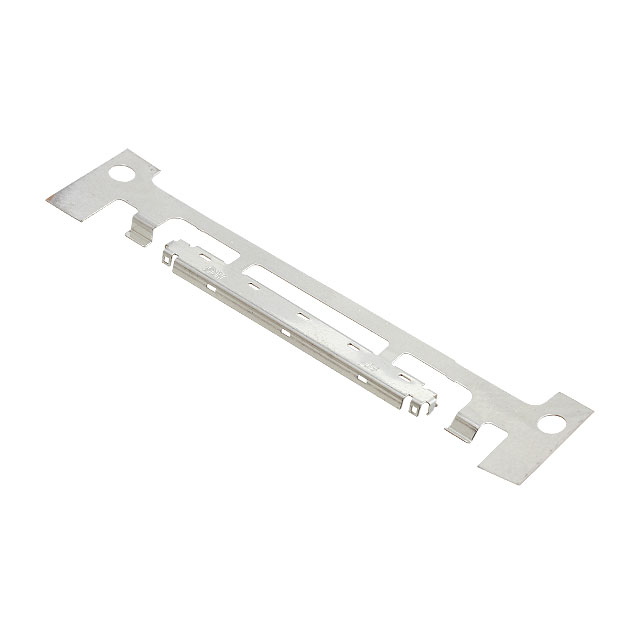

 Hirose Electric Co Ltd | 50 | DF36 Series | Shield | |||||||||||||||||||||||||||
 Hirose Electric Co Ltd | Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.099 µm | 3.9 µin | Black | Varies by Wire Gauge | Surface Mount | All | Friction Lock | Metal Cover Solder Retention | 0.4 mm | 0.016 in | Board to Cable/Wire | Receptacle | Gold | Center Strip Contact | UL94 V-0 | 30 VAC | Solder | 12 Áin | 0.3 Ám | 0.059 in | 1.5 mm | 1 | 15 | Gold | 85 °C | -35 °C | ||
Hirose Electric Co Ltd | 25 | DF36 Series | Shield | |||||||||||||||||||||||||||
Hirose Electric Co Ltd | Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.099 µm | 3.9 µin | Black | Varies by Wire Gauge | Surface Mount | All | Friction Lock | Metal Cover Solder Retention | 0.4 mm | 0.016 in | Board to Cable/Wire | Receptacle | Gold | Center Strip Contact | UL94 V-0 | 30 VAC | Solder | 12 Áin | 0.3 Ám | 0.059 in | 1.5 mm | 1 | 50 | Gold | 85 °C | -35 °C | ||
Hirose Electric Co Ltd | 40 | DF36 Series | Shield | |||||||||||||||||||||||||||
Hirose Electric Co Ltd | Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.099 µm | 3.9 µin | Black | Varies by Wire Gauge | Surface Mount | All | Friction Lock | Metal Cover Solder Retention | 0.4 mm | 0.016 in | Board to Cable/Wire | Receptacle | Gold | Center Strip Contact | UL94 V-0 | 30 VAC | Solder | 12 Áin | 0.3 Ám | 0.059 in | 1.5 mm | 1 | 40 | Gold | 85 °C | -35 °C |
