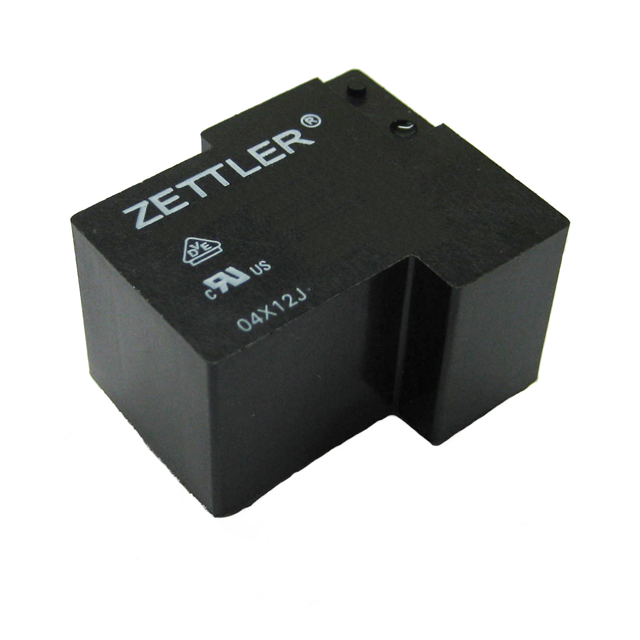

AZ2150-1A Series
Manufacturer: American Zettler
Catalog
RELAY GEN PURPOSE SPST 40A 12V
| Part | Seal Rating | Coil Current | Coil Type | Coil Resistance | Release Time | Load - Max Switching | Switching Voltage [Max] | Must Release Voltage | Operate Time | Contact Form | Coil Insulation | Termination Style | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Must Operate Voltage | Mounting Type | Relay Type | Contact Material | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | Sealed - Fully | 77.4 mA | Non Latching | 155 Ohms | 5 ms | 1200 W 12000 VA | 30 VDC 300 VAC | 1.2 VDC | 12 ms | SPST-NO (1 Form A) | Class F | PC Pin | 40 A | 85 °C | -55 °C | cURus VDE | 9 VDC | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | 12 VDC |
American Zettler | Sealed - Fully | 12.7 mA | Non Latching | 5.5 kOhms | 5 ms | 1200 W 12000 VA | 30 VDC 300 VAC | 7 VDC | 12 ms | SPST-NO (1 Form A) | Class B | PC Pin | 40 A | 85 °C | -55 °C | cURus VDE | 52.5 VDC | Through Hole | General Purpose | Silver Tin Oxide (AgSnO) | 70 VDC |
American Zettler | 185.2 mA | Non Latching | 27 Ohms | 5 ms | 1200 W 12000 VA | 30 VDC 300 VAC | 0.5 VDC | 12 ms | SPST-NO (1 Form A) | Class B | PC Pin | 40 A | 85 °C | -55 °C | cURus VDE | 3.75 VDC | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | 5 VDC | |
American Zettler | Sealed - Fully | 185.2 mA | Non Latching | 27 Ohms | 5 ms | 1200 W 12000 VA | 30 VDC 300 VAC | 0.5 VDC | 12 ms | SPST-NO (1 Form A) | Class B | PC Pin | 40 A | 85 °C | -55 °C | cURus VDE | 3.75 VDC | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | 5 VDC |
American Zettler | Sealed - Fully | 47.4 mA | Non Latching | 380 Ohms | 5 ms | 1200 W 12000 VA | 30 VDC 300 VAC | 1.8 VDC | 12 ms | SPST-NO (1 Form A) | Class F | PC Pin | 40 A | 105 ░C | -55 °C | cURus VDE | 13.5 VDC | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | 18 VDC |
American Zettler | Sealed - Fully | 47.4 mA | Non Latching | 380 Ohms | 5 ms | 1200 W 12000 VA | 30 VDC 300 VAC | 1.8 VDC | 12 ms | SPST-NO (1 Form A) | Class B | PC Pin | 40 A | 85 °C | -55 °C | cURus VDE | 13.5 VDC | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | 18 VDC |
American Zettler | Sealed - Fully | 36.4 mA | Non Latching | 660 Ohms | 5 ms | 1200 W 12000 VA | 30 VDC 300 VAC | 2.4 VDC | 12 ms | SPST-NO (1 Form A) | Class F | PC Pin | 40 A | 85 °C | -55 °C | cURus VDE | 18 VDC | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | 24 VDC |
American Zettler | Sealed - Fully | 185.2 mA | Non Latching | 27 Ohms | 5 ms | 1200 W 12000 VA | 30 VDC 300 VAC | 0.5 VDC | 12 ms | SPST-NO (1 Form A) | Class F | PC Pin | 40 A | 105 ░C | -55 °C | cURus VDE | 3.75 VDC | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | 5 VDC |
American Zettler | Sealed - Fully | 36.4 mA | Non Latching | 660 Ohms | 5 ms | 1200 W 12000 VA | 30 VDC 300 VAC | 2.4 VDC | 12 ms | SPST-NO (1 Form A) | Class B | PC Pin | 40 A | 85 °C | -55 °C | cURus VDE | 18 VDC | Through Hole | General Purpose | Silver Tin Oxide (AgSnO) | 24 VDC |
American Zettler | 36.4 mA | Non Latching | 660 Ohms | 5 ms | 1200 W 12000 VA | 30 VDC 300 VAC | 2.4 VDC | 12 ms | SPST-NO (1 Form A) | Class B | PC Pin | 40 A | 85 °C | -55 °C | cURus VDE | 18 VDC | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | 24 VDC |
