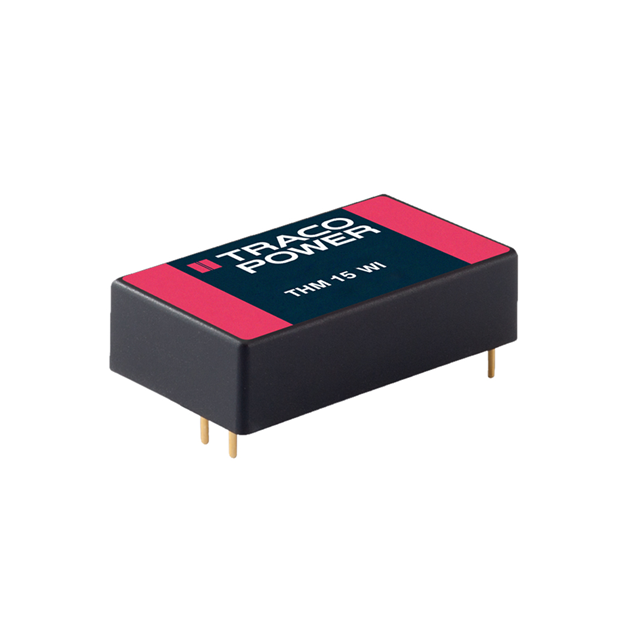

THM 15 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 12V 15W
| Part | Voltage - Input (Max) [Max] | Features | Type | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Applications | Voltage - Input (Min) [Min] | Power (Watts) | Voltage - Isolation | Number of Outputs | Efficiency | Package / Case | Mounting Type | Voltage - Output 1 | Current - Output (Max) [Max] | Current - Output (Max) [Max] | Voltage - Output 2 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 75 V | OCP OTP OVP SCP | Isolated Module | -40 °C | 85 °C | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Medical | 36 V | 15 W | 5000 V | 1 | 88 % | 5-DIP Module | Through Hole | 12 V | 1.25 A | |||
Traco Power | 75 V | OCP OTP OVP SCP | Isolated Module | -40 °C | 85 °C | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Medical | 36 V | 15 W | 5000 V | 1 | 89 % | 5-DIP Module | Through Hole | 15 V | 1 A | |||
 Traco Power | 36 V | OCP OTP OVP SCP | Isolated Module | -40 °C | 85 °C | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Medical | 9 V | 15 W | 5000 V | 2 | 88 % | 5-DIP Module | Through Hole | 12 V | 625 mA | 625 mA | -12 V | |
Traco Power | 36 V | OCP OTP OVP SCP | Isolated Module | -40 °C | 85 °C | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Medical | 18 V | 15 W | 5000 V | 1 | 90 % | 5-DIP Module | Through Hole | 12 V | 1.25 A | |||
Traco Power | 18 V | OCP OTP OVP SCP | Isolated Module | -40 °C | 85 °C | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Medical | 9 V | 15 W | 5000 V | 2 | 89 % | 5-DIP Module | Through Hole | 12 V | 625 mA | 625 mA | -12 V | |
Traco Power | 36 V | OCP OTP OVP SCP | Isolated Module | -40 °C | 85 °C | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Medical | 9 V | 15 W | 5000 V | 2 | 86 % | 5-DIP Module | Through Hole | 5 V | -5 V | 1.5 A | ||
Traco Power | 75 V | OCP OTP OVP SCP | Isolated Module | -40 °C | 85 °C | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Medical | 18 V | 15 W | 5000 V | 1 | 88.5 % | 5-DIP Module | Through Hole | 24 V | 625 mA | |||
Traco Power | 36 V | OCP OTP OVP SCP | Isolated Module | -40 °C | 85 °C | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Medical | 18 V | 15 W | 5000 V | 1 | 90 % | 5-DIP Module | Through Hole | 5 V | 3 A | |||
Traco Power | 18 V | OCP OTP OVP SCP | Isolated Module | -40 °C | 85 °C | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Medical | 9 V | 15 W | 5000 V | 2 | 89 % | 5-DIP Module | Through Hole | 15 V | -15 V | 500 mA | ||
Traco Power | 18 V | OCP OTP OVP SCP | Isolated Module | -40 °C | 85 °C | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | Medical | 9 V | 15 W | 5000 V | 2 | 86 % | 5-DIP Module | Through Hole | 5 V | -5 V | 1.5 A |
