ECMF02-2AMX6 Series

Common-mode filter and ESD protection for USB 2.0 and MIPI/MDDI interfaces

Catalog

Common-mode filter and ESD protection for USB 2.0 and MIPI/MDDI interfaces

Part	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Max) [Max]	Height (Max) [z]	Height (Max) [z]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Filter Type	Number of Lines	Mounting Type	Package / Case

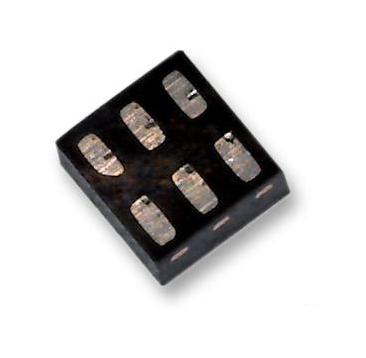

STMicroelectronics ECMF02-2AMX6	TVS Diode ESD Protection	0.067 in	0.059 in	1.7 mm	1.5 mm	200 mA	0.55 mm	0.022 in	85 °C	-40 C	2.5 Ohm	Signal Line	2	Surface Mount	6-UFQFN

Catalog

Common-mode filter and ESD protection for USB 2.0 and MIPI/MDDI interfaces

Description

The device is a highly integrated common mode filter designed to suppress EMI/RFI common mode noise on high speed differential serial buses like MIPI D-PHY, MDDI or USB 2.0. Also it can protect and filter one differential lane.
