QAP Series
Manufacturer: Nichicon
Beta
⌘K

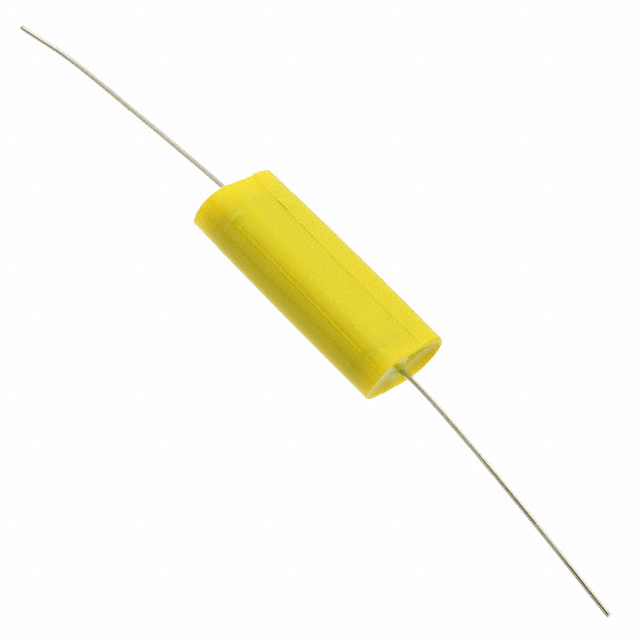

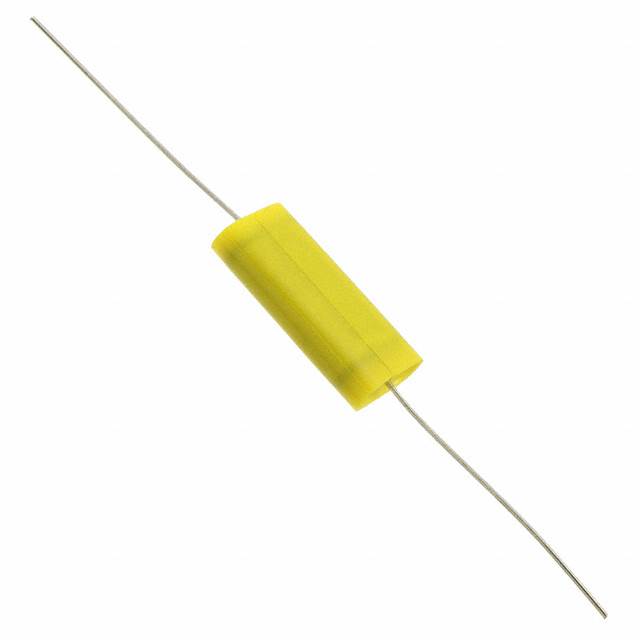

FILM CAPACITORS 0.68UF 630V 10% PLASTIC FILM
| Part | Tolerance | Termination | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Capacitance | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 10 % | PC Pins | 35 mm | 1.378 in | 0.449 " | 0.772 in | 19.6 mm | 11.4 mm | Axial | Through Hole | 85 °C | -40 C | Polypropylene (PP) Metallized | 0.68 µF | High Frequency Switching |
 Nichicon | 10 % | PC Pins | 35 mm | 1.378 in | 0.366 in | 0.685 " | 17.4 mm | 9.3 mm | Axial | Through Hole | 85 °C | -40 C | Polypropylene (PP) Metallized | 0.47 µF | High Frequency Switching |
 Nichicon | 10 % | PC Pins | Axial | Through Hole | 85 °C | -40 C | Polypropylene (PP) Metallized | 0.22 µF | High Frequency Switching |
