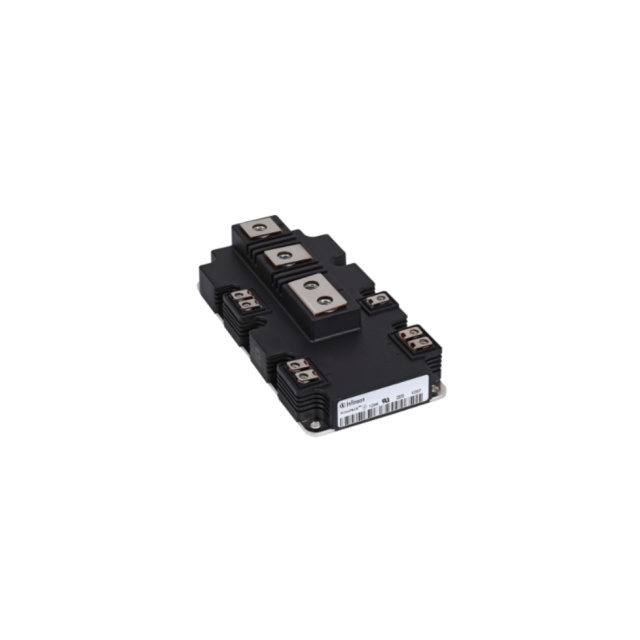

FD900R12 Series

Manufacturer: INFINEON

Catalog

IGBT MOD 1200V 900A 5100W

Part	Power - Max [Max]	NTC Thermistor	IGBT Type	Mounting Type	Input Capacitance (Cies) @ Vce	Supplier Device Package	Package / Case	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Input	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Vce(on) (Max) @ Vge, Ic [Max]	Configuration
INFINEON FD900R12IP4DVBOSA1	5100 W		Trench Field Stop	Chassis Mount	54 nF	Module	Module	5 mA	1200 V	Standard	900 A	-40 C	150 °C	2.05 V	Single
INFINEON FD900R12IP4DBOSA1	5100 W			Chassis Mount	54 nF	Module	Module	5 mA	1200 V	Standard	900 A	-40 C	150 °C	2.05 V	Single Chopper
