APPM Series

Catalog

COMMON MODE CHOKES / FILTERS CHILISIN POWER - COMMON MODE CHOKE (CMC) AUTOMOTIVE POWER LINE & MULTIMEDIA

Part	Current Rating (Max) [Max]	Filter Type	Number of Lines	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Mounting Type	Impedance @ Frequency	Height (Max) [z]	Height (Max) [z]	Package / Case	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max] [z]	Height (Max) [Max] [z]

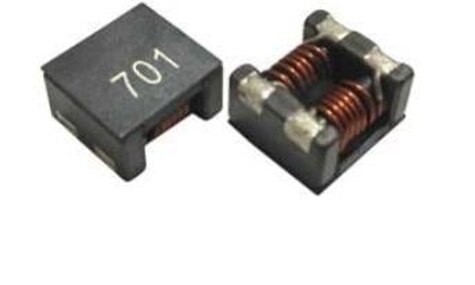

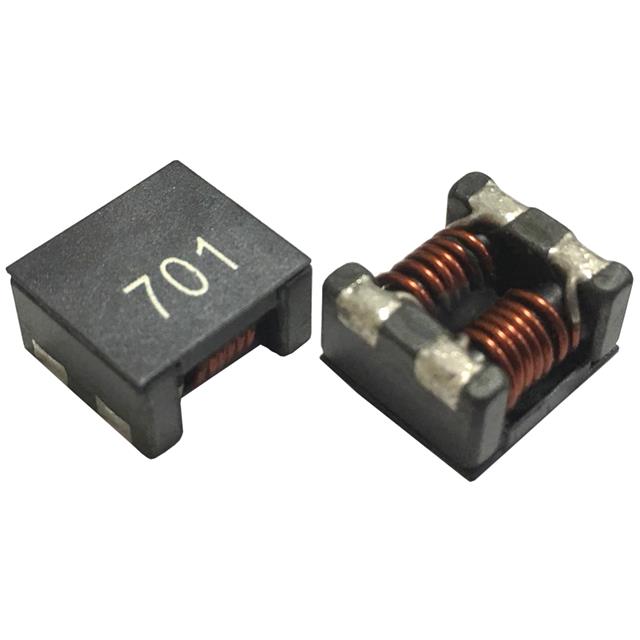

Pulse Electronics APPM00070638132XY0	2.5 A	Power Line	2	AEC-Q200	125 °C	-40 C	21 mOhm	Surface Mount	1.3 kOhms	0.15 in	3.8 mm	Horizontal 4 PC Pad	125 VDC	7.5 mm	6 mm	0.295 "	0.236 "
Pulse Electronics APPM00151365102XY0	8.5 A	Power Line	2	AEC-Q200	125 °C	-40 C	9 mOhm	Surface Mount	1 kOhms	0.256 in	6.5 mm	Horizontal 4 PC Pad	125 VDC	15 mm	13 mm	0.591 in	0.512 "
Pulse Electronics APPM00485023102XY0	3 A	Power Line	2	AEC-Q200	125 °C	-40 C	24 mOhm	Surface Mount	1 kOhms			Horizontal 4 PC Pad	50 VDC	5 mm	4.8 mm	0.197 in	0.189 in	2.5 mm	0.098 in
