AD9789 Series
Manufacturer: Analog Devices
Beta
⌘K

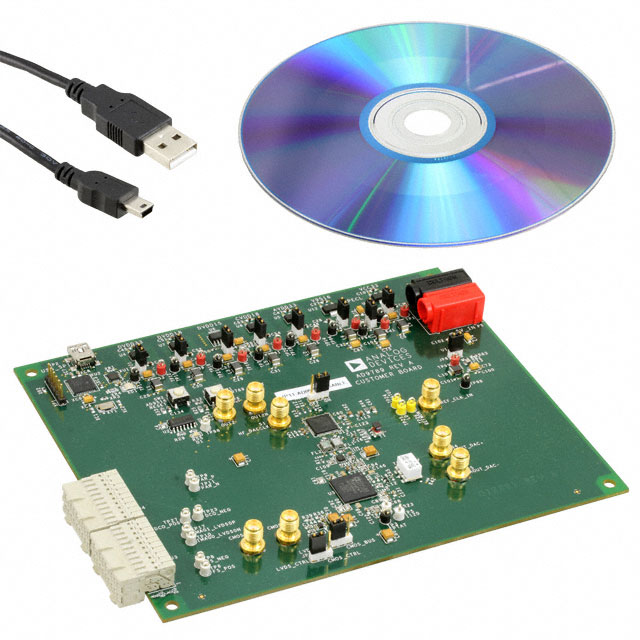

BOARD EVAL FOR MIXED MODE AD9789
| Part | Settling Time | Number of Bits | Sampling Rate (Per Second) | Utilized IC / Part | Number of DAC's | Supplied Contents | Data Interface | DAC Type | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Architecture | Package / Case | Reference Type | Differential Output | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Supplier Device Package | Output Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices | 13 ns | 14 | 2.4 G | AD9789 | 4 | Board(s) Cable(s) | SPI | Voltage | |||||||||||||

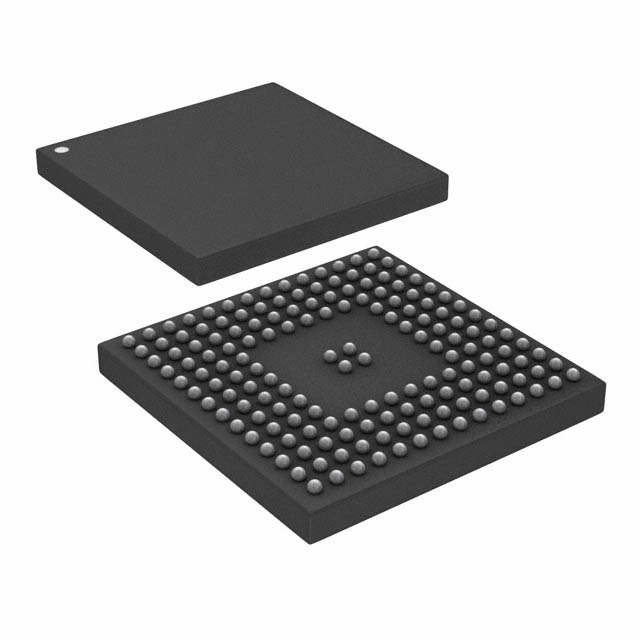

 Analog Devices | 13 ns | 14 | LVDS - Parallel Parallel | 3.14 V | 3.47 V | Oversampling Interpolating DAC | 164-LFBGA CSPBGA | External Internal | 85 °C | -40 °C | Surface Mount | 164-CSPBGA (12x12) | Current - Unbuffered | 1.58 V 1.89 V 3.47 V | 1.43 V 1.71 V 3.14 V | ||||||
 Analog Devices | 13 ns | 14 | 2.4 G | AD9789 | 4 | Board(s) Cable(s) | SPI | Voltage |
