STGIB10 Series

Catalog

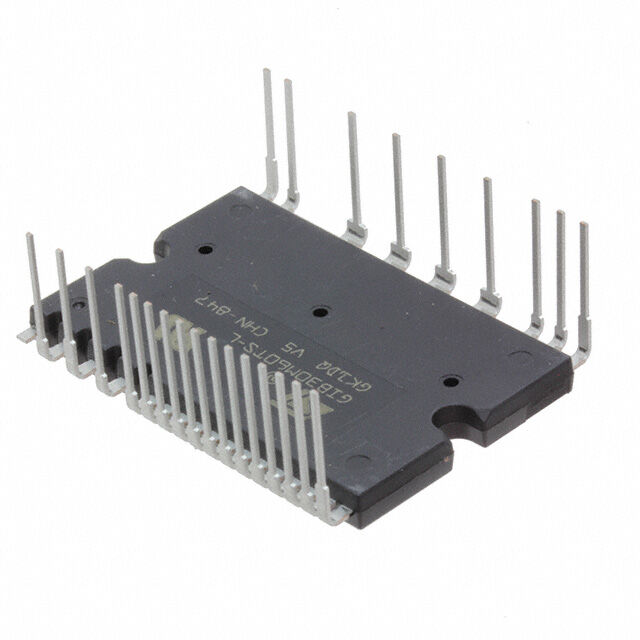

INTELLIGENT POWER MODULE (IPM), IGBT, 600 V, 15 A, 1.5 KV, DIP

Part	Package / Case	Package / Case	Configuration	Package / Case [x]	Package / Case [x]	Voltage	Mounting Type	Current	Voltage - Isolation	Type
STMicroelectronics STGIB10CH60S-L	1.146 in 29.1 mm	26-PowerDIP Module	3 Phase Inverter	29.4 mm	1.157 in	600 V	Through Hole	15 A	1500 VAC	IGBT

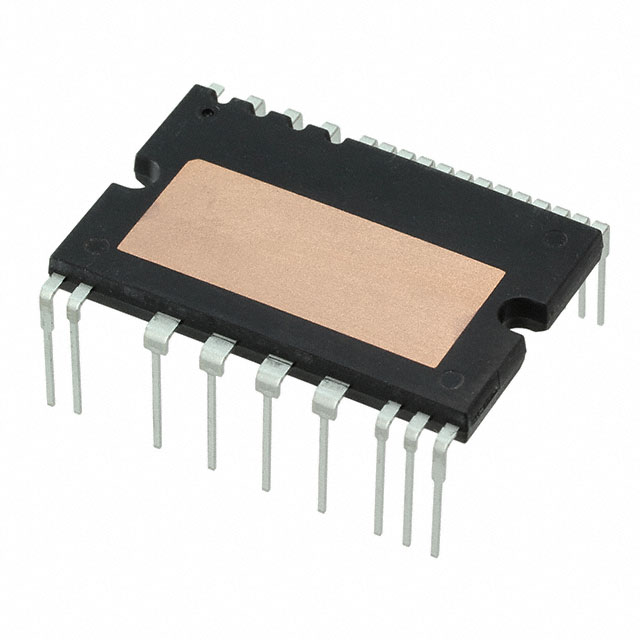

STMicroelectronics STGIB10CH60TS-E		26-PowerDIP Module (1.327" 33.70mm)	3 Phase Inverter			600 V	Through Hole	15 A	1500 VAC	IGBT
STMicroelectronics STGIB10CH60TS-X	1.146 in 1.154 " 29.1 mm 29.3 mm	26-PowerDIP Module	3 Phase Inverter			600 V	Through Hole	15 A	1500 VAC	IGBT
STMicroelectronics STGIB10CH60S-XZ	1.146 in 29.1 mm	26-PowerDIP Module	3 Phase Inverter			600 V	Through Hole	15 A	1600 Vrms	IGBT
STMicroelectronics STGIB10CH60TS-LZ	1.146 in 29.1 mm	26-PowerDIP Module	3 Phase Inverter	29.4 mm	1.157 in	600 V	Through Hole	15 A	1500 VAC	IGBT
