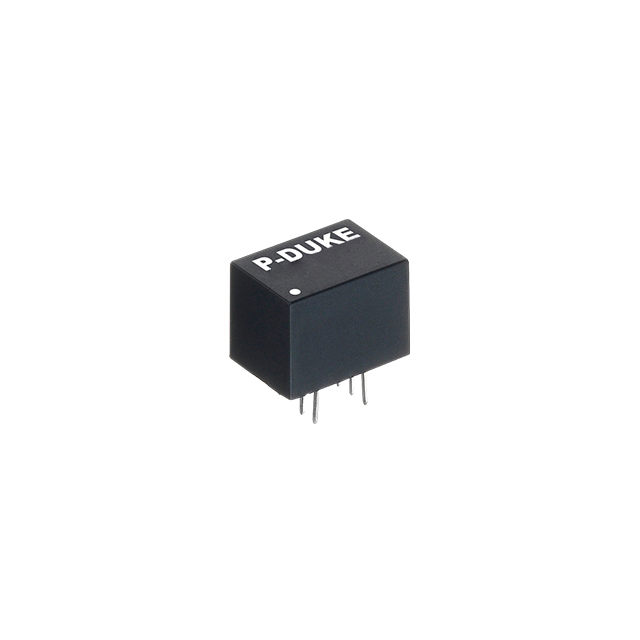

SDH01 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER 5V 1W
| Part | Package / Case | Mounting Type | Current - Output (Max) [Max] | Voltage - Isolation | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Type | Applications | Number of Outputs | Voltage - Input (Max) [Max] | Efficiency | Approval Agency | Voltage - Output 1 | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 7-DIP Module 6 Leads | Through Hole | 200 mA | 1.6 kV | 9 V | 105 C | -40 °C | 0.36 in | 10.2 mm | 13.2 mm | 0.52 in | 9.1 mm | 0.4 " | Isolated Module | ITE (Commercial) Laboratory | 1 | 36 V | 78 % | CE | 5 V | Remote On/Off |
