BD7F200EFJ-LB Series

Optocoupler-less Isolated Flyback Converter

Catalog

Optocoupler-less Isolated Flyback Converter

Part	Current - Output	Voltage - Output	Board Type	Outputs and Type	Outputs and Type	Voltage - Input	Utilized IC / Part	Supplied Contents	Main Purpose	Frequency - Switching	Regulator Topology	Output Configuration	Function	Voltage - Output (Max) [Max]	Number of Outputs	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Topology	Package / Case	Package / Case	Package / Case	Voltage - Output (Min/Fixed) [Min]	Voltage - Input (Min) [Min]	Output Type	Contents

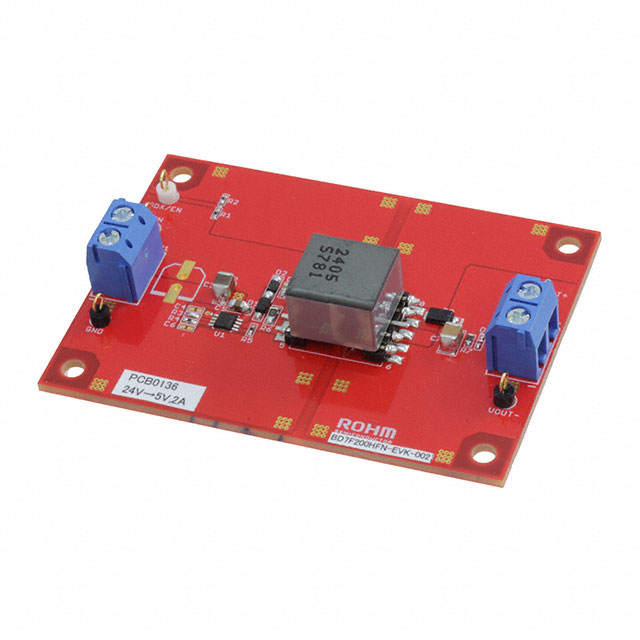

Rohm Semiconductor BD7F200HFN-EVK-002	2 A	5 V	Fully Populated	Isolated	1	24 V	BD7F200	Board(s)	DC/DC Step Down	400 kHz	Flyback
Rohm Semiconductor BD7F200EFJ-EVK-001	150 mA	15 VDC	Fully Populated	Isolated	4	24 V	BD7F200	Board(s)	DC/DC Step Down	400 kHz	Flyback

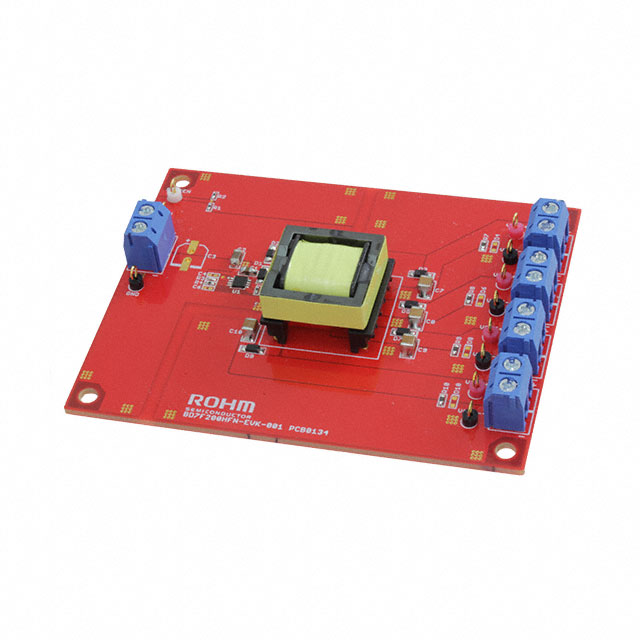

Rohm Semiconductor BD7F200HFN-EVK-001	150 mA	15 VDC	Fully Populated	Isolated	4	24 V	BD7F200	Board(s)	DC/DC Step Down	400 kHz	Flyback
Rohm Semiconductor BD7F200EFJ-LBE2	2.2 A									400 kHz		Isolation Capable Positive	Step-Up/Step-Down	50 V	1	8-HTSOP-J	-40 °C	125 ¯C	Surface Mount	Flyback	0.154 in	8-SOIC	3.9 mm	0.78 V	8 V	Adjustable

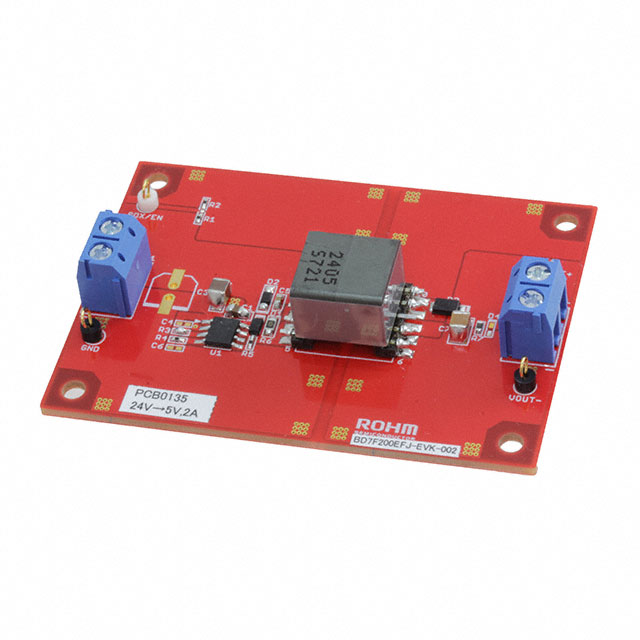

Rohm Semiconductor BD7F200EFJ-EVK-002	2 A	5 V	Fully Populated	1 Isolated Output Isolated	1	24 V	BD7F200	Board(s)	DC/DC Step Down	400 kHz	Flyback																Board(s)

Catalog

Optocoupler-less Isolated Flyback Converter

Key Features

• Guaranteed long time supply availability for Industrial Applications., No need for an optocoupler or a transformer tertiary winding. The output voltage can be set by two external resistors and the transformer turns ratio., Uses Original Adapted Type ON-Time Control Technology. High-speed load response is realized and external phase compensation parts are unnecessary., Fixed switching frequency and low output ripple, Highly efficient light load mode available(PFM operation), Shutdown / Enable Control, Built-in N-Channel MOSFET, Soft start function, Output load compensation function, Protection functions:VIN Under Voltage Lock-Out (VIN UVLO)Over Current Protection (OCP)Thermal Shutdown Protection (TSD)

Description

This product guarantees long time supply availability in the industrial instrumentation market. BD7F200 is an optocoupler-less Isolated Flyback Converter. An optocoupler or the tertiary winding feedback circuit which was needed to obtain a stable output voltage isolated by a transformer in the conventional application becomes unnecessary, thus, the number of parts is reduced drastically, producing a small-sized and high-reliability application isolated type power supply. Furthermore, a highly by the use of the Original Adapted-Type ON-Time Control Technology, it makes the external phase compensation parts become unnecessary, therefore a highly efficient isolated type power supply application can easily be produced.
