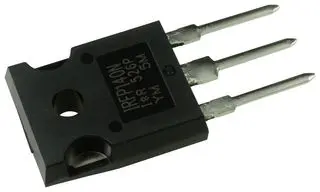

IRFP140 Series
Manufacturer: INFINEON
Beta
⌘K
POWER MOSFET, HEXFET, N CHANNEL, 100 V, 33 A, 0.052 OHM, TO-247AC, THROUGH HOLE
| Part | Input Capacitance (Ciss) (Max) @ Vds | Gate Charge (Qg) (Max) @ Vgs | Drive Voltage (Max Rds On, Min Rds On) | Operating Temperature [Max] | Operating Temperature [Min] | Vgs(th) (Max) @ Id | Mounting Type | Package / Case | Drain to Source Voltage (Vdss) | FET Type | Rds On (Max) @ Id, Vgs | Current - Continuous Drain (Id) @ 25°C | Supplier Device Package | Power Dissipation (Max) [Max] | Vgs (Max) | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 1400 pF | 94 nC | 10 V | 175 °C | -55 °C | 4 V | Through Hole | TO-247-3 | 100 V | N-Channel | 52 mOhm | 33 A | TO-247AC | 140 W | 20 V | MOSFET (Metal Oxide) |
