74AUC08 Series

Catalog

4-CH, 2-INPUT 0.8-V TO 2.7-V ULTRA-HIGH-SPEED (2.4 NS) AND GATE

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Logic Level - High [x]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Max Propagation Delay @ V, Max CL	Mounting Type	Number of Circuits	Current - Quiescent (Max) [Max]	Logic Type	Number of Inputs	Package / Case	Current - Output High, Low

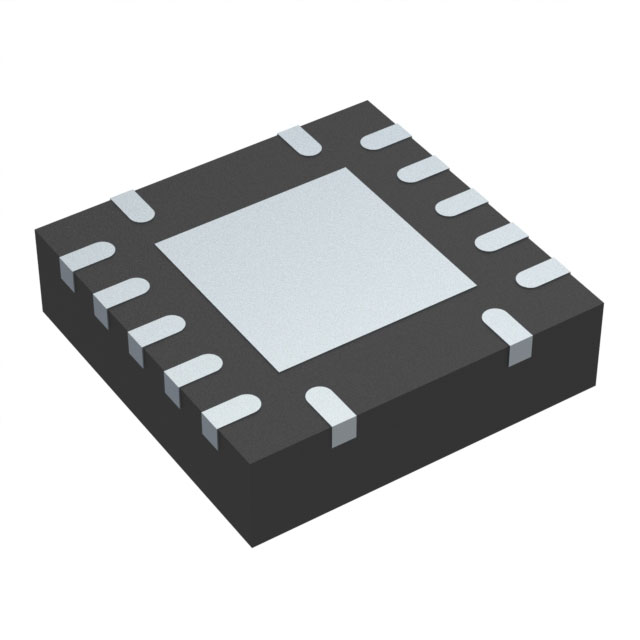

Texas Instruments SN74AUC08RGYR	2.7 V	0.8 V	1.7 V	14-VQFN 3.5x3.5	85 °C	-40 C	0.7 V	0 V	1.8 ns	Surface Mount	4	10 µA	AND Gate	2	14-VFQFN Exposed Pad	9 mA
Texas Instruments SN74AUC08RGYRG4	2.7 V	0.8 V	1.7 V	14-VQFN 3.5x3.5	85 °C	-40 C	0.7 V	0 V	1.8 ns	Surface Mount	4	10 µA	AND Gate	2	14-VFQFN Exposed Pad	9 mA
