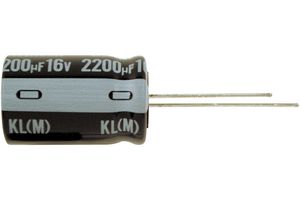

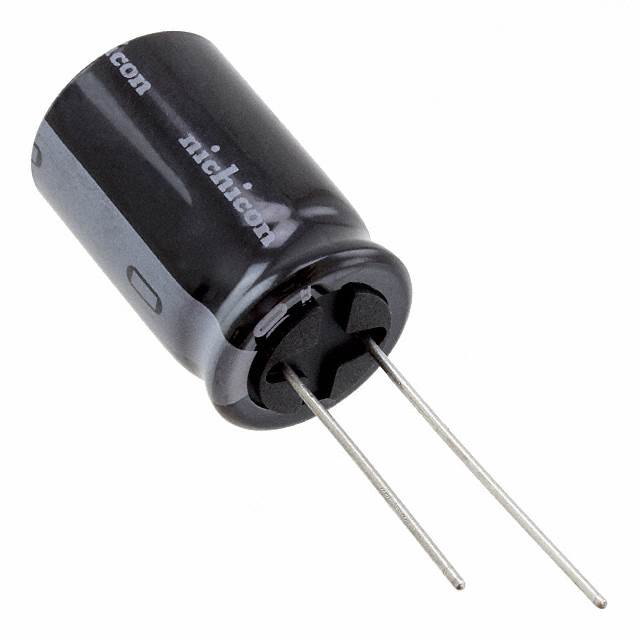

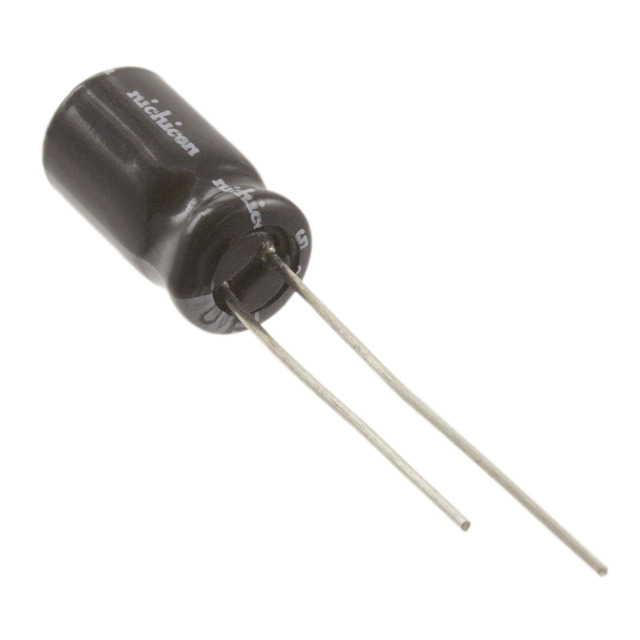

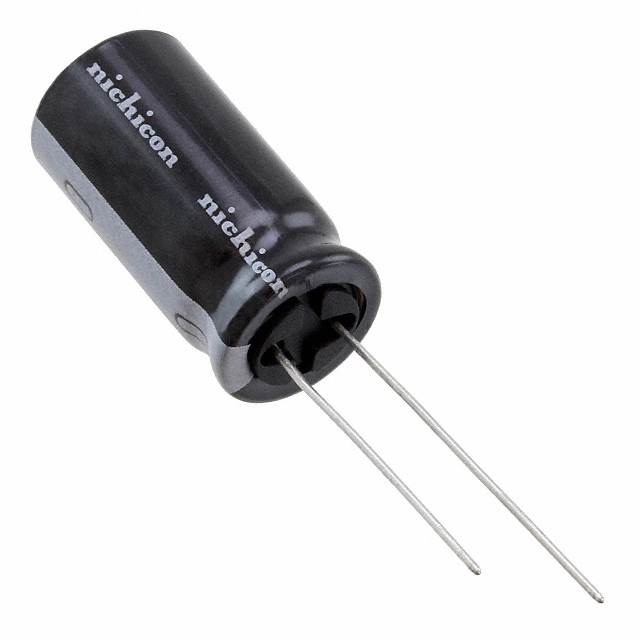

UKL Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 100UF 25V 85C

Part	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Applications	Voltage - Rated	Polarization	Mounting Type	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max)
Nichicon UKL1E101MPD1TA	2000 Hrs	0.138 in	3.5 mm	Can Radial	0.315 in	8 mm	100 µF	420 mA	280 mA	General Purpose	25 VDC	Polar	Through Hole	20 %	85 °C	-40 C	0.492 in	12.5 mm
Nichicon UKL0J152MHD	2000 Hrs	0.197 "	5 mm	Can Radial	0.492 in	12.5 mm	1.5 mF	1.0465 A	910 mA	General Purpose	6.3 VDC	Polar	Through Hole	20 %	85 °C	-40 C			26.5 mm	1.043 in
Nichicon UKL1V471MHD	2000 Hrs	0.197 "	5 mm	Can Radial	0.492 in	12.5 mm	470 µF	1.02 A	680 mA	General Purpose	35 V	Polar	Through Hole	20 %	85 °C	-40 C			26.5 mm	1.043 in
Nichicon UKL1H101KPD1TD	2000 Hrs	0.197 "	5 mm	Can Radial	0.394 in	10 mm	100 µF	480 mA	320 mA	General Purpose	50 VDC	Polar	Through Hole	20 %	85 °C	-40 C			0.689 in		17.5 mm
Nichicon UKL1A680MEDANA	1000 Hrs	0.098 in	2.5 mm	Can Radial	0.248 "	6.3 mm	68 µF	300 mA	150 mA	General Purpose	10 V	Polar	Through Hole	20 %	105 ░C	-40 C						0.472 in	12 mm
Nichicon UKL2AR68KDD1TA	2000 Hrs	0.197 "	5 mm	Can Radial	0.197 in	5 mm	0.68 µF	29 mA	14.5 mA	General Purpose	100 V	Polar	Through Hole	20 %	85 °C	-40 C						0.472 in	12 mm
Nichicon UKL0J103KHD	2000 Hrs	0.295 in	7.5 mm	Can Radial	0.709 in	18 mm	10000 µF	2.185 A	1.9 A	General Purpose	6.3 VDC	Polar	Through Hole	10 %	85 °C	-40 C						1.634 in	41.5 mm
Nichicon UKL1A222KHD	2000 Hrs	0.295 in	7.5 mm	Can Radial	0.63 in	16 mm	2200 µF	1.38 A	1.2 A	General Purpose	10 V	Polar	Through Hole	10 %	85 °C	-40 C			26.5 mm	1.043 in
Nichicon UKL1E102MHD	2000 Hrs	0.295 in	7.5 mm	Can Radial	0.63 in	16 mm	1000 µF	1.1615 A	1.01 A	General Purpose	25 VDC	Polar	Through Hole	20 %	85 °C	-40 C			26.5 mm	1.043 in
Nichicon UKL1C471KPD	2000 Hrs	0.197 "	5 mm	Can Radial	0.394 in	10 mm	470 µF	825 mA		General Purpose	16 V	Polar	Through Hole	10 %	85 °C	-40 C	21.5 mm					0.846 "
