TSR 0.5 Series

Catalog

DC DC CONVERTER 1.5V 750MW

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Package / Case	Applications	Number of Outputs	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Type	Power (Watts)	Efficiency	Voltage - Input (Max) [Max]
Traco Power TSR 0.5-2415SM	90 °C	-40 °C	Surface Mount	9.2 mm	15.3 mm	0.38 "	9.6 mm	0.36 in	0.6 "	OTP Remote On/Off SCP	10-SMD Module	ITE (Commercial)	1	1.5 V	500 mA	4.75 V	Linear Regulator Replacement	0.75 W	73 %	32 V
Traco Power TSR 0.5-24150SM	90 °C	-40 °C	Surface Mount	9.2 mm	15.3 mm	0.38 "	9.6 mm	0.36 in	0.6 "	OTP Remote On/Off SCP	10-SMD Module	ITE (Commercial)	1	15 V	500 mA	18 V	Linear Regulator Replacement	7.5 W	97 %	32 V

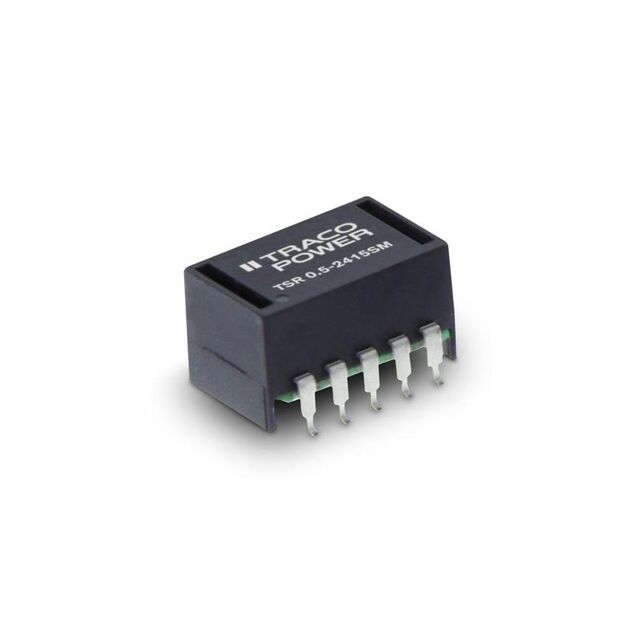

Traco Power TSR 0.5-24120SM	90 °C	-40 °C	Surface Mount	9.2 mm	15.3 mm	0.38 "	9.6 mm	0.36 in	0.6 "	OTP Remote On/Off SCP	10-SMD Module	ITE (Commercial)	1	12 V	500 mA	15 V	Linear Regulator Replacement	6 W	97 %	32 V
Traco Power TSR 0.5-24150	90 °C	-40 °C	Through Hole	10.2 mm	11.5 mm	0.3 "	7.6 mm	0.4 "	0.45 "	OTP SCP	3-SIP Module	ITE (Commercial)	1	15 V	500 mA	18 V	Linear Regulator Replacement	7.5 W	97 %	32 V
Traco Power TSR 0.5-2425	90 °C	-40 °C	Through Hole	10.2 mm	11.5 mm	0.3 "	7.6 mm	0.4 "	0.45 "	OTP SCP	3-SIP Module	ITE (Commercial)	1	2.5 V	500 mA	4.75 V	Linear Regulator Replacement	1.3 W	87 %	32 V
