TF38 Series

Catalog

CONN FFC VERT 20POS 0.5MM SMD

Part	Actuator Color	Housing Color	Current Rating (Amps)	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Material	Flat Flex Type	FFC, FCB Thickness	Material Flammability Rating	Voltage Rating	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	Actuator Material	Contact Finish	Mounting Type	Cable End Type	Locking Feature	Housing Material	Height Above Board [z]	Height Above Board [z]	Termination

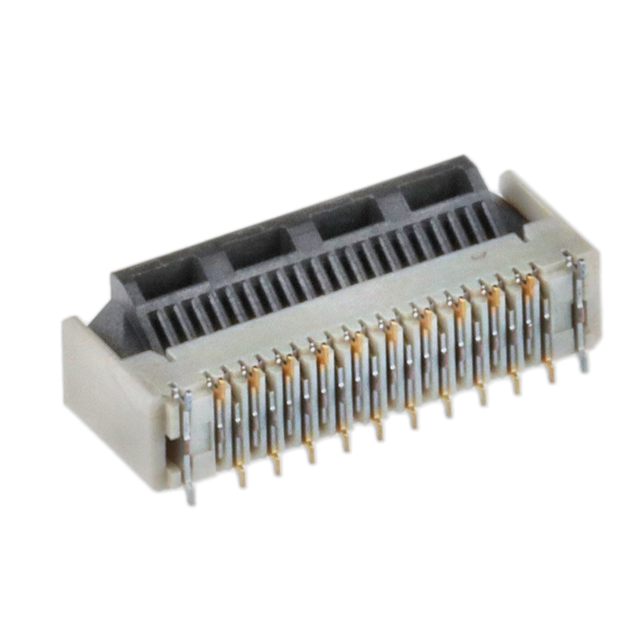

Hirose Electric Co Ltd TF38-20S-0.5SV(830)	Black	Beige	0.5 A	20	1.25 Áin	0.03 Ám	20	Phosphor Bronze	FFC FPC	0.3 mm	UL94 V-0	50 V	0.02 "	0.5 mm	85 °C	-40 C	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	Tabbed	Flip Lock	Liquid Crystal Polymer (LCP)	5.2 mm	0.205 in	Solder

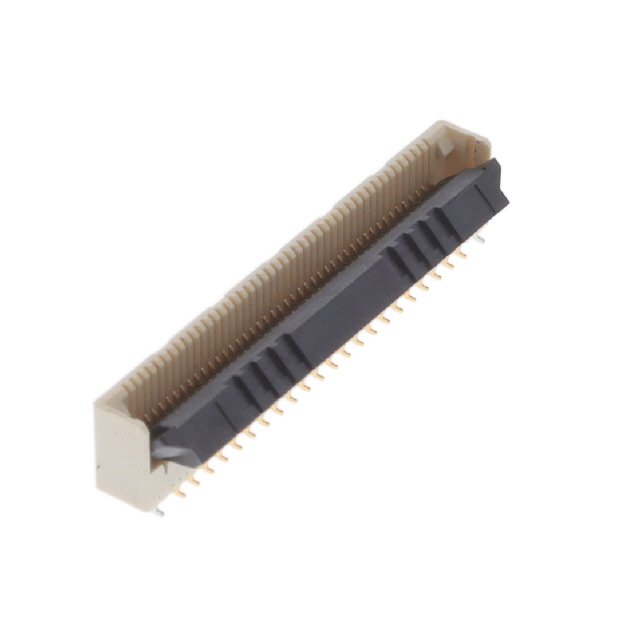

Hirose Electric Co Ltd TF38-45S-0.5SV(830)	Black	Beige	0.5 A	20	1.25 Áin	0.03 Ám	45	Phosphor Bronze	FFC FPC	0.3 mm	UL94 V-0	50 V	0.02 "	0.5 mm	85 °C	-40 C	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	Tabbed	Flip Lock	Liquid Crystal Polymer (LCP)	5.2 mm	0.205 in	Solder

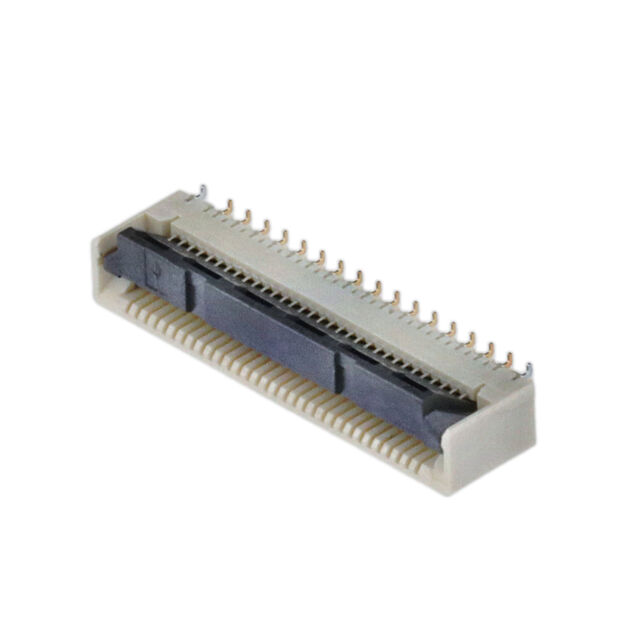

Hirose Electric Co Ltd TF38-32S-0.5SV(830)	Black	Beige	0.5 A	20	1.25 Áin	0.03 Ám		Phosphor Bronze	FFC FPC	0.3 mm	UL94 V-0	50 V	0.02 "	0.5 mm	85 °C	-40 C	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	Tabbed	Flip Lock	Liquid Crystal Polymer (LCP)	5.2 mm	0.205 in	Solder

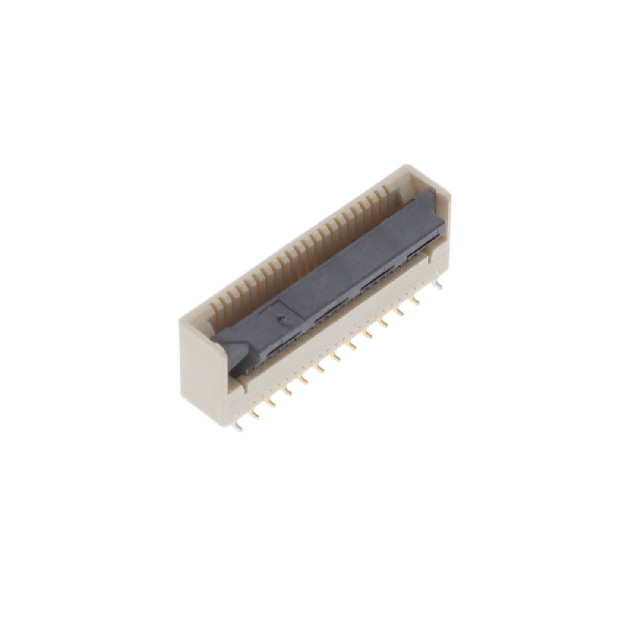

Hirose Electric Co Ltd TF38-22S-0.5SV(830)	Black	Beige	0.5 A	20	1.25 Áin	0.03 Ám	22	Phosphor Bronze	FFC FPC	0.3 mm	UL94 V-0	50 V	0.02 "	0.5 mm	85 °C	-40 C	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	Tabbed	Flip Lock	Liquid Crystal Polymer (LCP)	5.2 mm	0.205 in	Solder

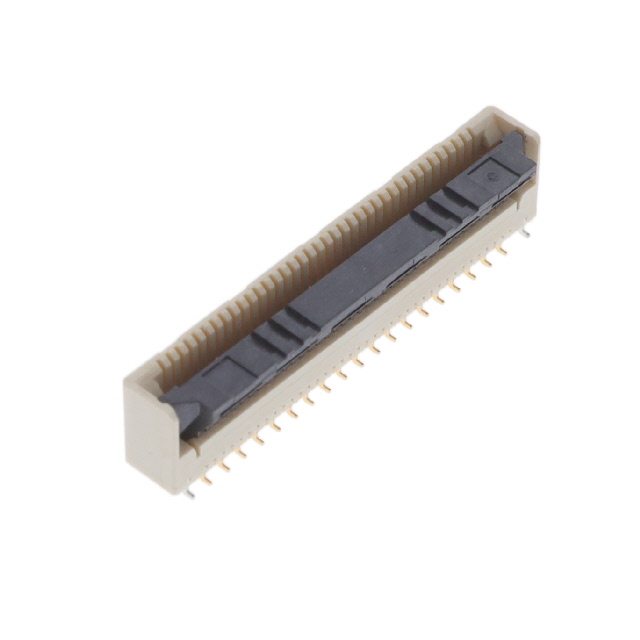

Hirose Electric Co Ltd TF38-38S-0.5SV(830)	Black	Beige	0.5 A	20	1.25 Áin	0.03 Ám	38	Phosphor Bronze	FFC FPC	0.3 mm	UL94 V-0	50 V	0.02 "	0.5 mm	85 °C	-40 C	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	Tabbed	Flip Lock	Liquid Crystal Polymer (LCP)	5.2 mm	0.205 in	Solder

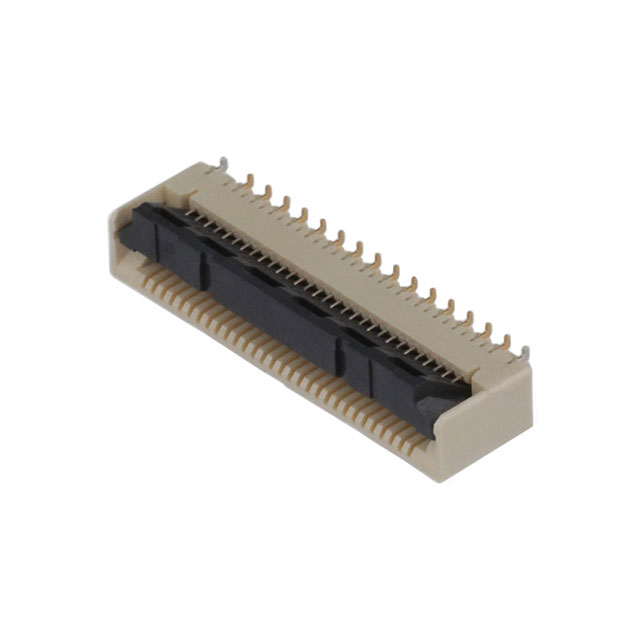

Hirose Electric Co Ltd TF38-30S-0.5SV(830)	Black	Beige	0.5 A	20	1.25 Áin	0.03 Ám	30	Phosphor Bronze	FFC FPC	0.3 mm	UL94 V-0	50 V	0.02 "	0.5 mm	85 °C	-40 C	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	Tabbed	Flip Lock	Liquid Crystal Polymer (LCP)	5.2 mm	0.205 in	Solder

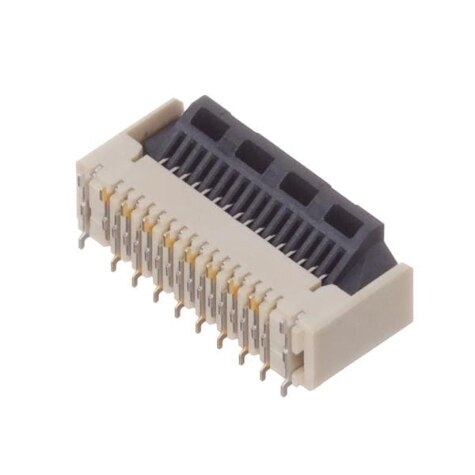

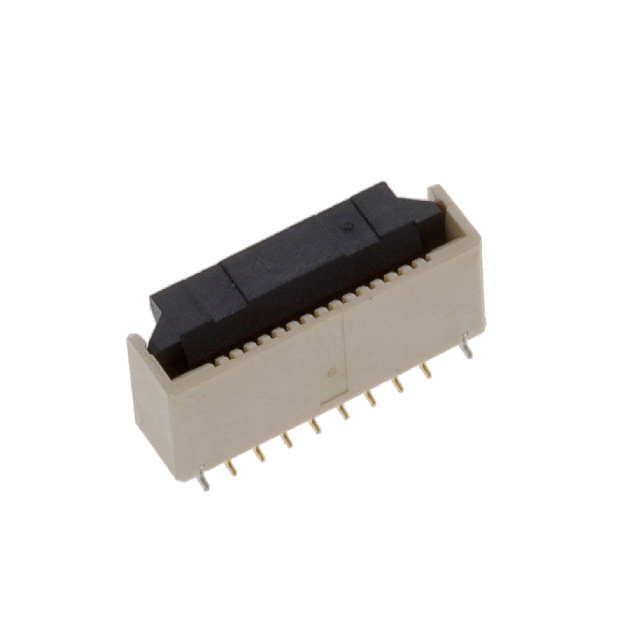

Hirose Electric Co Ltd TF38-16S-0.5SV(830)	Black	Beige	0.5 A	20	1.25 Áin	0.03 Ám	16	Phosphor Bronze	FFC FPC	0.3 mm	UL94 V-0	50 V	0.02 "	0.5 mm	85 °C	-40 C	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	Tabbed	Flip Lock	Liquid Crystal Polymer (LCP)	5.2 mm	0.205 in	Solder

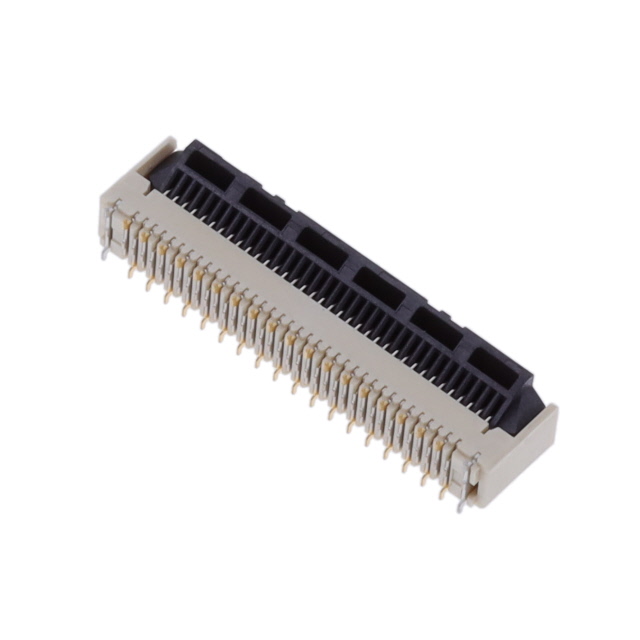

Hirose Electric Co Ltd TF38-36S-0.5SV(830)	Black	Beige	0.5 A	20	1.25 Áin	0.03 Ám	36	Phosphor Bronze	FFC FPC	0.3 mm	UL94 V-0	50 V	0.02 "	0.5 mm	85 °C	-40 C	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	Tabbed	Flip Lock	Liquid Crystal Polymer (LCP)	5.2 mm	0.205 in	Solder

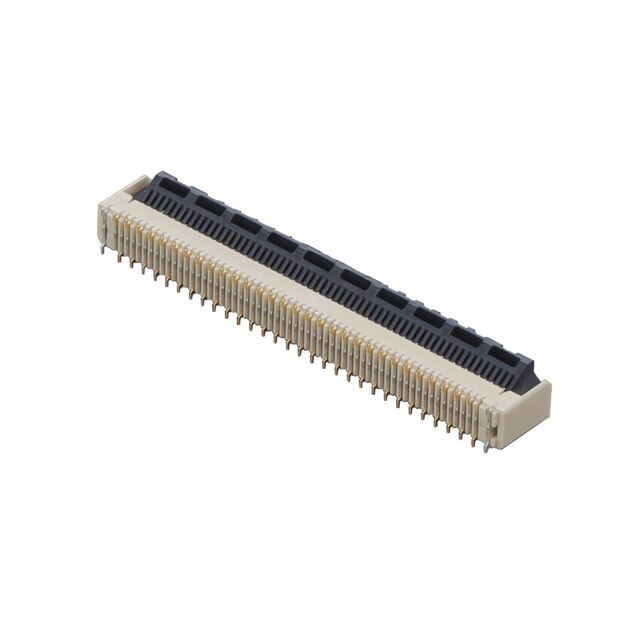

Hirose Electric Co Ltd TF38-60S-0.5SV(830)	Black	Gray	0.5 A	20	1.25 Áin	0.03 Ám	60	Phosphor Bronze	FFC FPC	0.3 mm	UL94 V-0	50 V	0.02 "	0.5 mm	105 ░C	-40 C	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	Tabbed	Flip Lock	Liquid Crystal Polymer (LCP)	5.2 mm	0.205 in	Solder

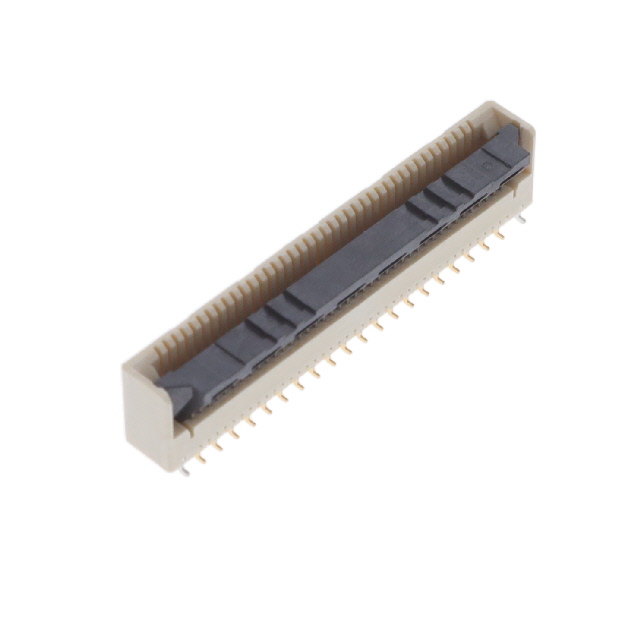

Hirose Electric Co Ltd TF38-40S-0.5SV(830)	Black	Beige	0.5 A	20	1.25 Áin	0.03 Ám	40	Phosphor Bronze	FFC FPC	0.3 mm	UL94 V-0	50 V	0.02 "	0.5 mm	85 °C	-40 C	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	Gold	Surface Mount	Tabbed	Flip Lock	Liquid Crystal Polymer (LCP)	5.2 mm	0.205 in	Solder
