BNC-BPR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

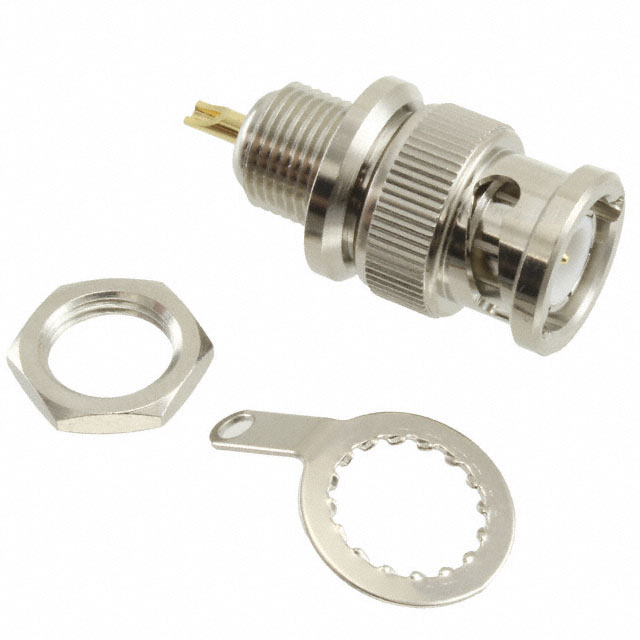

CONN BNC PLUG STR 50 OHM SOLDER
| Part | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Mating Cycles | Includes | Connector Type | Mounting Type | Number of Ports | Shield Termination | Housing Color | Connector Style | Fastening Type | Frequency - Max [Max] | Center Contact Material | Mounting Feature | Contact Termination | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Brass | Gold | -55 C | 85 °C | Polytetrafluoroethylene (PTFE) | Nickel | 1000 | 1 Connector 1 Nut 1 Solder Tag | Plug Male Pin | Panel Mount | 1 | Solder Tag | Silver | BNC | Bayonet Lock | 4 GHz | Brass | Bulkhead - Rear Side Nut | Solder Cup | 50 Ohms |
