TYN30 Series

Catalog

SCR 800V 30A IITO220E

Part	Supplier Device Package	Current - On State (It (RMS)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - Off State	Voltage - On State (Vtm) (Max) [Max]	Mounting Type	Current - On State (It (AV)) (Max) [Max]	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm) [custom]	Current - Non Rep. Surge 50, 60Hz (Itsm) [custom]	SCR Type	Operating Temperature	Current - Off State (Max) [Max] [custom]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Hold (Ih) (Max)

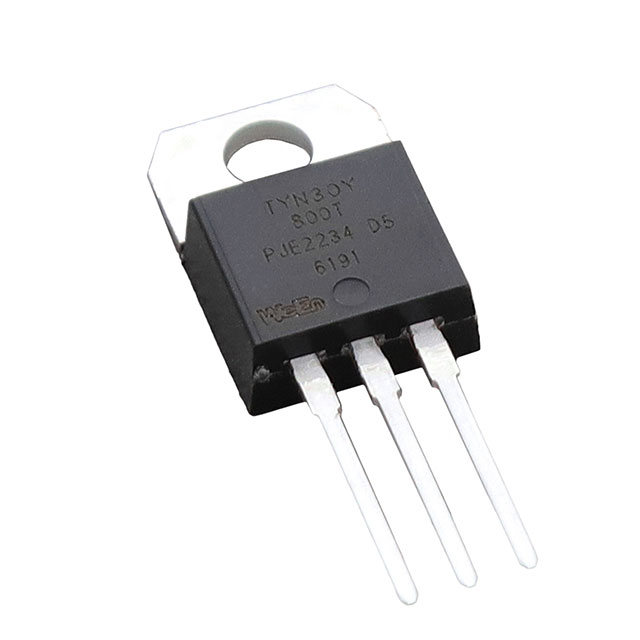

WeEn Semiconductors TYN30Y-800TQ	IITO-220E	30 A	1 V	15 mA	60 mA	800 V	1.5 V	Through Hole	19 A	TO-220-3 Isolated Tab	350 A	385 A	Standard Recovery	150 °C	1 mA
WeEn Semiconductors TYN30Y-600TFQ	TO-220AB	30 A	1 V	10 mA		600 V	1.5 V	Through Hole	19 A	TO-220-3 Isolated Tab			Standard Recovery	150 °C	10 µA	360 A 396 A	40 mA
WeEn Semiconductors TYN30-800TQ	TO-220E	30 A	1 V	15 mA	60 mA	800 V	1.5 V	Through Hole	19 A	TO-220-3	350 A	385 A	Standard Recovery	150 °C	1 mA
WeEn Semiconductors TYN30-600TFQ	TO-220AB	30 A	1 V	10 mA		600 V	1.5 V	Through Hole	19 A	TO-220-3			Standard Recovery	150 °C	10 µA	360 A 396 A	40 mA
