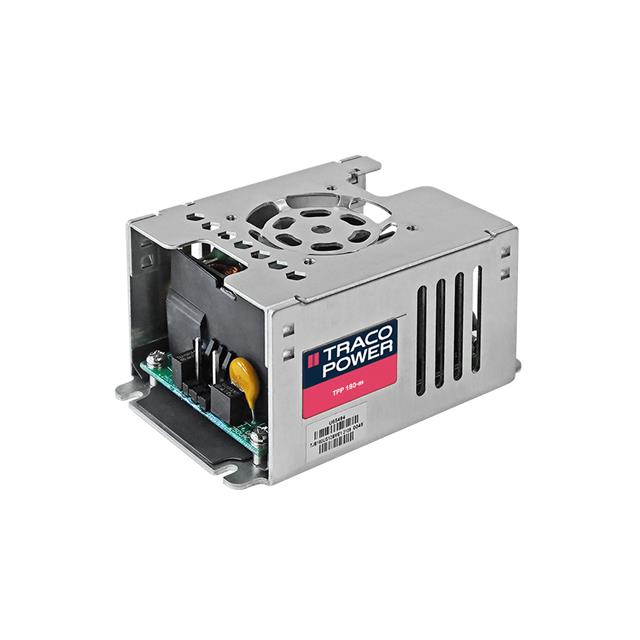

TPP 180-M Series
Manufacturer: Traco Power
Beta
⌘K
SWITCHING POWER SUPPLIES
| Part | Minimum Load Required | Features | Number of Outputs | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Efficiency | Applications | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Approval Agency | Type | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Adjustable Output DC Input Capable PFC Standby Output Universal Input | 1 | 24 V | 240 VAC 264 VAC 370 VDC | 85 VAC 100 VAC 120 VDC | 150 W | 94 % | ITE (Commercial) Medical | 4000 V | -40 °C | 85 °C | 3.6 " | 91.4 mm | 62 mm | 1.75 in | 2.44 " | 44.5 mm | Chassis Mount | CB CE cURus EAC UKCA | Enclosed | 60601-1; 62368-1 |
