AMP Mezalok Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MEZALOK, SOCKET, 114 P, 12 MM, 50 AU, TL

Part	Contact Material	Insulation Material	Applications	Contact Shape	Connector Type	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Number of Rows	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Insulation Color	Features	Number of Positions Loaded	Contact Finish - Post	Mounting Type	Fastening Type	Mated Stacking Heights	Insulation Height	Insulation Height	Shrouding	Insulation Height [custom]	Insulation Height [custom]	Current Rating (Amps)
TE Connectivity AMP Connectors 2102061-3	Beryllium Copper	Liquid Crystal Polymer (LCP)	General Purpose Military	Square	Receptacle	Gold	0.05 in	1.27 mm	Female Socket	6	250 VAC	50 µin	1.27 µm	Solder	114	-55 C	125 °C	1.27 mm	0.05 in	Natural	Pick and Place	All	Tin-Lead	Surface Mount	Push-Pull	12 mm	8 mm	0.315 in
TE Connectivity AMP Connectors 2102060-4	Phosphor Bronze	Liquid Crystal Polymer (LCP)		Square	Header	Gold	0.05 in	1.27 mm	Male Pin	6		30 Áin	0.76 Ám	Solder	114			1.27 mm	0.05 in	Natural	Pick and Place	All	Tin	Surface Mount	Push-Pull		9.14 mm	0.36 in	Shrouded - 4 Wall

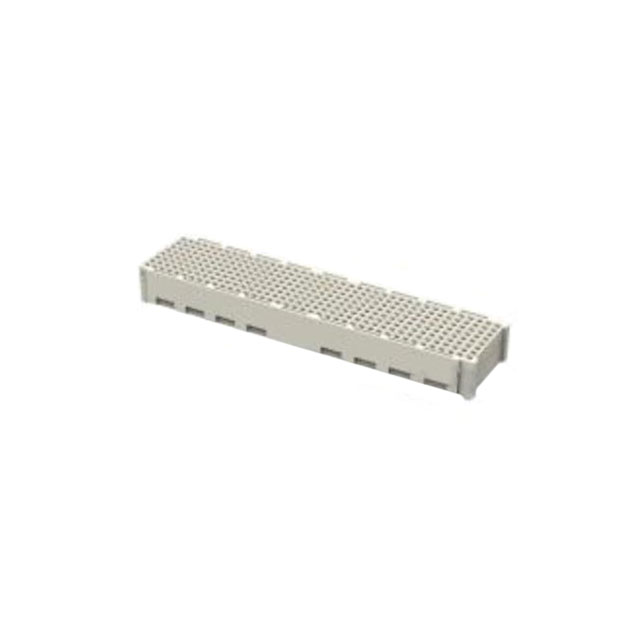

TE Connectivity AMP Connectors 2102430-1	Beryllium Copper	Liquid Crystal Polymer (LCP)		Square	Receptacle	Gold	0.05 in	1.27 mm	Female Socket	8	250 VAC	50 µin	1.27 µm	Solder	320	-55 C	125 °C	1.27 mm	0.05 in	Natural	Pick and Place	All	Tin-Lead	Surface Mount	Push-Pull	10 mm				0.236 "	6 mm
TE Connectivity AMP Connectors 1-2102061-0	Beryllium Copper	Liquid Crystal Polymer (LCP)	General Purpose Military	Square	Receptacle	Gold	0.05 in	1.27 mm	Female Socket	6	250 VAC	50 µin	1.27 µm	Solder	114	-55 C	125 °C	1.27 mm	0.05 in	Natural	Pick and Place	All	Tin	Surface Mount	Push-Pull	18 mm	14 mm	0.551 "

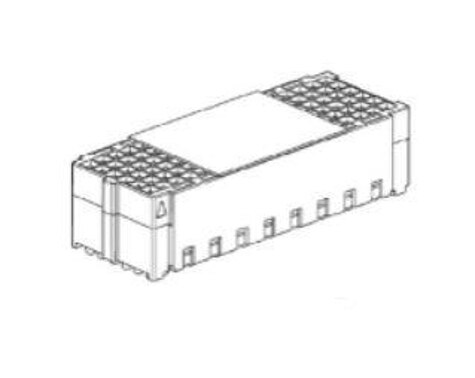

TE Connectivity AMP Connectors 1-2102061-8	Beryllium Copper	Liquid Crystal Polymer (LCP)		Square	Receptacle	Gold	0.05 in	1.27 mm	Female Socket	6	250 VAC	50 µin	1.27 µm	Solder	114	-55 C	125 °C	1.27 mm	0.05 in	Natural	Pick and Place	All	Tin	Surface Mount	Push-Pull		17 mm	0.669 in				1.5 A
TE Connectivity AMP Connectors 1-2102061-1	Beryllium Copper	Liquid Crystal Polymer (LCP)	General Purpose Military	Square	Receptacle	Gold	0.05 in	1.27 mm	Female Socket	6	250 VAC	30 Áin	0.76 Ám	Solder	114	-55 C	125 °C	1.27 mm	0.05 in	Natural	Pick and Place	All	Tin-Lead	Surface Mount	Push-Pull	18 mm	14 mm	0.551 "
TE Connectivity AMP Connectors 1-2102061-2	Beryllium Copper	Liquid Crystal Polymer (LCP)	General Purpose Military	Square	Receptacle	Gold	0.05 in	1.27 mm	Female Socket	6	250 VAC	30 Áin	0.76 Ám	Solder	114	-55 C	125 °C	1.27 mm	0.05 in	Natural	Pick and Place	All	Tin	Surface Mount	Push-Pull	18 mm	14 mm	0.551 "
TE Connectivity AMP Connectors 2102061-1					Receptacle	Gold	0.05 in	1.27 mm	Female Socket	6	250 VAC	50 µin	1.27 µm	Solder	114	-55 C	125 °C	1.27 mm	0.05 in	Natural	Pick and Place	All	Tin-Lead	Surface Mount	Push-Pull	10 mm				0.236 "	6 mm
TE Connectivity AMP Connectors 2102061-4	Beryllium Copper	Liquid Crystal Polymer (LCP)	General Purpose Military	Square	Receptacle	Gold	0.05 in	1.27 mm	Female Socket	6	250 VAC	50 µin	1.27 µm	Solder	114	-55 C	125 °C	1.27 mm	0.05 in	Natural	Pick and Place	All	Tin	Surface Mount	Push-Pull	12 mm	8 mm	0.315 in
TE Connectivity AMP Connectors 1-2102430-2					Receptacle	Gold	0.05 in	1.27 mm	Female Socket	8	250 VAC	30 Áin	0.76 Ám	Solder	320	-55 C	125 °C	1.27 mm	0.05 in	Natural	Pick and Place	All	Tin	Surface Mount	Push-Pull	18 mm	14 mm	0.551 "
