ICM Series
Manufacturer: Adam Tech
Beta
⌘K
IC & COMPONENT SOCKETS MACHINE PIN SOCKET, IC, DIP, 24P
| Part | Termination | Type | Type | Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Contact Finish - Mating | Contact Material - Post | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Contact Finish Thickness - Mating | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Mounting Type | Termination Post Length | Termination Post Length | Contact Resistance | Material Flammability Rating | Current Rating (Amps) | Type [custom] | Type [custom] | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Solder | 7.62 mm | 0.3 in | DIP | Open Frame | -40 C | 105 ░C | Tin | Gold | Beryllium Copper | 12 | 2 | 24 | Flash | Beryllium Copper | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | ||||||||

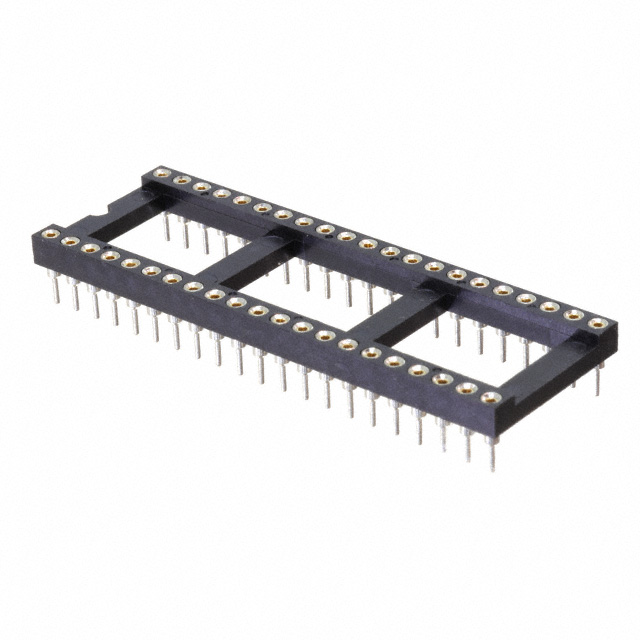

 Adam Tech | Solder | DIP | Open Frame | -40 C | 105 ░C | Tin | Gold | Beryllium Copper | 42 | Flash | Beryllium Copper | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | 0.11 in | 2.78 mm | 4 mOhm | UL94 V-0 | 3 A | 15.24 mm | 0.6 in | |||||
 Adam Tech | Solder | DIP | Open Frame | -55 C | 105 ░C | Tin | Phosphor Bronze | 40 | Phosphor Bronze | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Through Hole | 15.24 mm | 0.6 in | Polybutylene Terephthalate (PBT) Glass Filled |
