TPS22954 Series

5.7-V, 5-A, 14-mΩ load switch with adj. rise time, -Voltage monitoring and output discharge

Catalog

5.7-V, 5-A, 14-mΩ load switch with adj. rise time, -Voltage monitoring and output discharge

Part	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Rds On (Typ)	Ratio - Input:Output [custom]	Output Type	Number of Outputs	Features	Interface	Switch Type	Current - Output (Max) [Max]	Input Type	Mounting Type	Output Configuration	Fault Protection	Supplier Device Package	Function	Utilized IC / Part	Supplied Contents	Type
Texas Instruments TPS22954DQCR	2.5 V	5.7 V	105 °C	-40 °C	10-WFDFN Exposed Pad	14 mOhm	1:1	N-Channel	1	Auto Restart Load Discharge Power Good Slew Rate Controlled	On/Off	General Purpose	5 A	Non-Inverting	Surface Mount	High Side	Over Temperature UVLO	10-WSON (3x2)

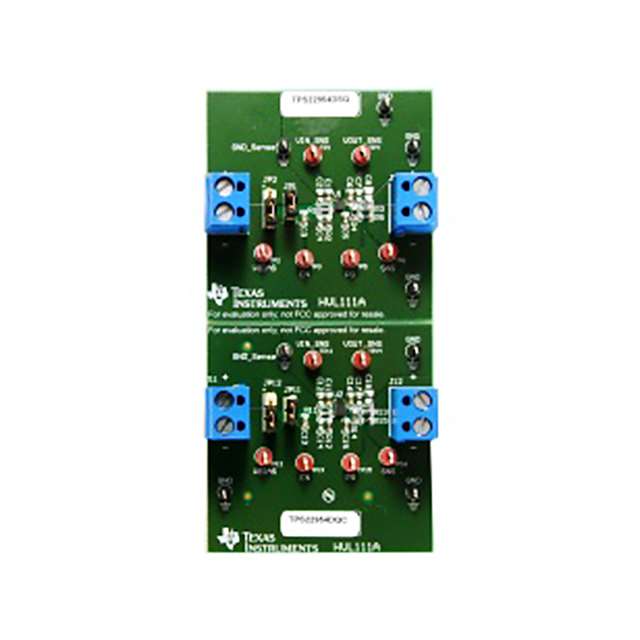

Texas Instruments TPS22954EVM																			Power Distribution Switch (Load Switch)	TPS22954	Board(s)	Power Management
Texas Instruments TPS22954DSQR	2.5 V	5.7 V	105 °C	-40 °C	10-WFDFN Exposed Pad	14 mOhm	1:1	N-Channel	1	Auto Restart Load Discharge Power Good Slew Rate Controlled	On/Off	General Purpose	5 A	Non-Inverting	Surface Mount	High Side	Over Temperature UVLO	10-WSON (2x2)

Catalog

5.7-V, 5-A, 14-mΩ load switch with adj. rise time, -Voltage monitoring and output discharge

Key Features

• Integrated Single Channel Load SwitchInput Voltage Range: 0.7 V to 5.7 VRONResistanceRON= 14 mΩ at VIN= 5 V (VBIAS= 5 V)5-A Maximum Continuous Switch CurrentAdjustable Undervoltage Lockout Threshold (UVLO)Adjustable Voltage Supervisor with Power Good (PG) IndicatorAdjustable Output Slew Rate ControlEnhanced Quick Output Discharge Remains Active after Power is Removed (TPS22954 Only)15 Ω (Typ) Discharges 100 µF Within 10 msReverse Current Blocking when Disabled (TPS22953 Only)Automatic Restart after Supervisor Fault Detection When EnabledThermal ShutdownLow Quiescent Current ≤ 50 µASON 10-pin Package with Thermal PadESD Performance Tested Per JESD 222-kV HBM and 750-V CDMIntegrated Single Channel Load SwitchInput Voltage Range: 0.7 V to 5.7 VRONResistanceRON= 14 mΩ at VIN= 5 V (VBIAS= 5 V)5-A Maximum Continuous Switch CurrentAdjustable Undervoltage Lockout Threshold (UVLO)Adjustable Voltage Supervisor with Power Good (PG) IndicatorAdjustable Output Slew Rate ControlEnhanced Quick Output Discharge Remains Active after Power is Removed (TPS22954 Only)15 Ω (Typ) Discharges 100 µF Within 10 msReverse Current Blocking when Disabled (TPS22953 Only)Automatic Restart after Supervisor Fault Detection When EnabledThermal ShutdownLow Quiescent Current ≤ 50 µASON 10-pin Package with Thermal PadESD Performance Tested Per JESD 222-kV HBM and 750-V CDM

Description

The TPS22953/54 are small, single channel load switches with controlled turn on. The devices contain a N-channel MOSFET that can operate over an input voltage range of 0.7 V to 5.7 V and can support a maximum continuous current of 5 A. The integrated adjustable undervoltage lockout (UVLO) and adjustable power good (PG) threshold provides voltage monitoring as well as robust power sequencing. The adjustable rise time control of the device greatly reduces inrush current for a wide variety of bulk load capacitances, thereby reducing or eliminating power supply droop. The switch is independently controlled by an on and off input (EN), which is capable of interfacing directly with low-voltage control signals. A 15-Ω on-chip load is integrated into the device for a quick discharge of the output when switch is disabled. The enhanced Quick Output Discharge (QOD) remains active for short time after power is removed from the device to finish discharging the output. The TPS22953/54 are available in small, space-saving 10-SON packages with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of –40°C to +105°C. The TPS22953/54 are small, single channel load switches with controlled turn on. The devices contain a N-channel MOSFET that can operate over an input voltage range of 0.7 V to 5.7 V and can support a maximum continuous current of 5 A. The integrated adjustable undervoltage lockout (UVLO) and adjustable power good (PG) threshold provides voltage monitoring as well as robust power sequencing. The adjustable rise time control of the device greatly reduces inrush current for a wide variety of bulk load capacitances, thereby reducing or eliminating power supply droop. The switch is independently controlled by an on and off input (EN), which is capable of interfacing directly with low-voltage control signals. A 15-Ω on-chip load is integrated into the device for a quick discharge of the output when switch is disabled. The enhanced Quick Output Discharge (QOD) remains active for short time after power is removed from the device to finish discharging the output. The TPS22953/54 are available in small, space-saving 10-SON packages with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of –40°C to +105°C.
