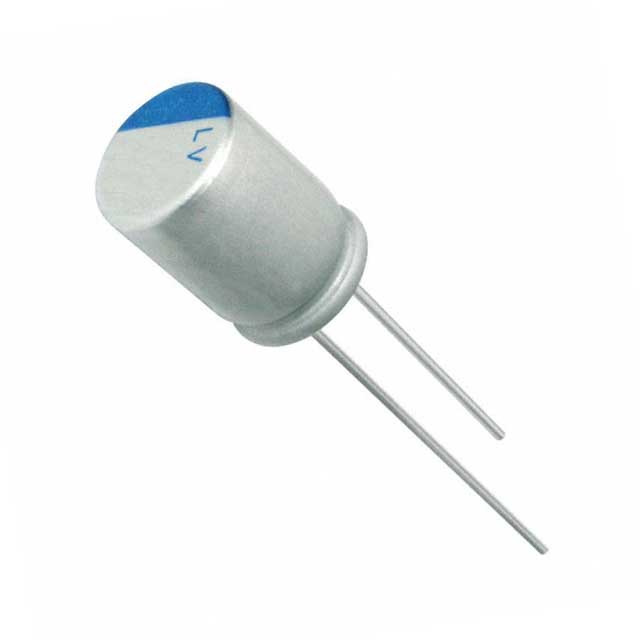

PLV Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ORGANIC POLYMER CAPACITORS 27UF 63 VOLTS 20% AEC-Q200
| Part | Lifetime @ Temp. | Mounting Type | Voltage - Rated | Ripple Current @ High Frequency | Lead Spacing | Lead Spacing | Capacitance | ESR (Equivalent Series Resistance) | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) | Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 3000 Hrs | Through Hole | 63 V | 2.1 A | 0.138 in | 3.5 mm | 27 µF | 33 mOhms | -55 C | 105 ░C | General Purpose | Can Radial | 0.472 in | 12 mm | Polymer | 0.315 in | 8 mm | 20 % | ||
 Nichicon | 3000 Hrs | Through Hole | 80 V | 2.3 A | 0.197 " | 5 mm | 22 µF | 35 mOhms | -55 C | 105 ░C | General Purpose | Can Radial | Polymer | 0.394 in | 10 mm | 20 % | 0.512 " | 13 mm |
