ST3DV Series

Catalog

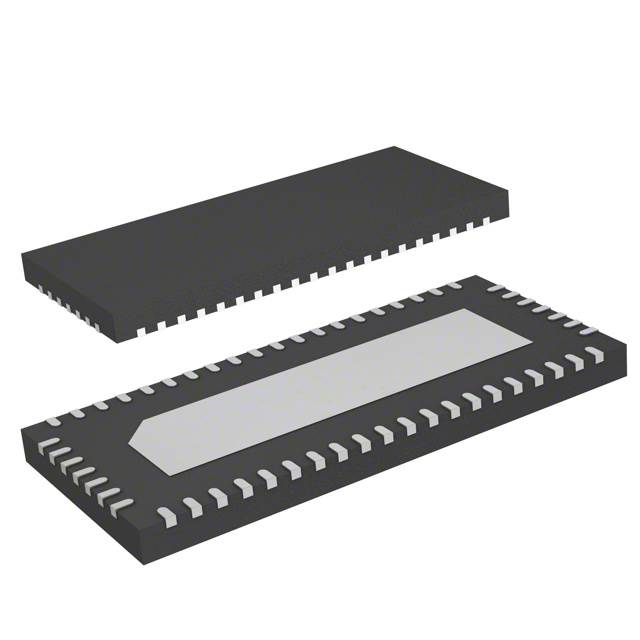

IC MUX/DEMUX 2X2 56QFN

Part	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Supplier Device Package	Applications	Switch Circuit	-3db Bandwidth	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Channels [custom]	Features	On-State Resistance (Max) [Max]	Multiplexer/Demultiplexer Circuit	Package / Case	Channel Capacitance (CS(off), CD(off))	Channel-to-Channel Matching (ΔRon)	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Current - Leakage (IS(off)) (Max) [Max]	Crosstalk	Number of Circuits
STMicroelectronics ST3DV520AQTR	3 V	3.6 V	56-QFN (11x5)	Video	SPDT	600 MHz	85 C	-40 ¯C	Surface Mount	10	Bi-Directional	6.5 Ohm	2:1	56-WFQFN Exposed Pad
STMicroelectronics ST3DV520QTR	3 V	3.6 V	56-QFN (11x5)		SPDT	450 MHz	125 °C	-55 °C	Surface Mount			7.5 Ohms	2:1	56-WFQFN Exposed Pad	6 pF	500 mOhm	9 ns	8.5 ns	5 µA	-45 dB	4
