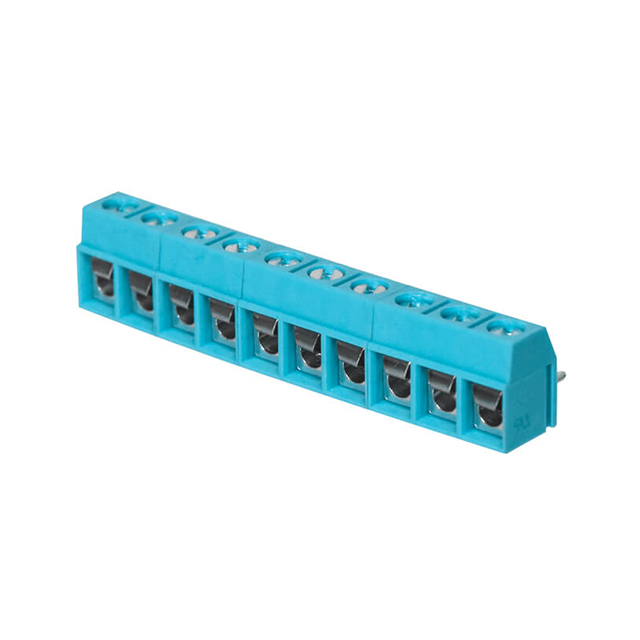

TB002 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K

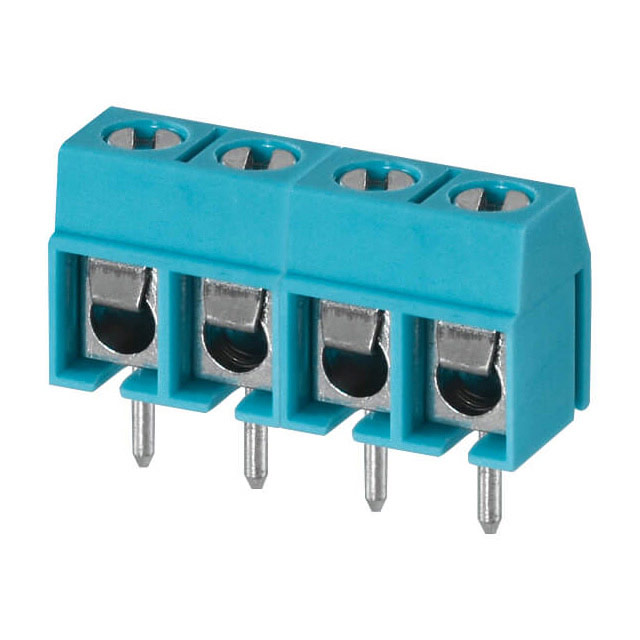

TERMINAL BLOCK, SCREW TYPE, 5.00
| Part | Wire Termination | Pitch | Pitch | Mounting Type | Positions Per Level [custom] | Features | Number of Levels | Color | Wire Gauge [Max] | Wire Gauge [Min] | Current | Mating Orientation | Voltage | Screw Thread | Clamp Material - Plating [custom] | Contact Material - Plating | Torque - Screw | Torque - Screw | Positions Per Level | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Screw Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | Screw - Leaf Spring Wire Guard | 0.197 in | 5 mm | Through Hole | 7 | Interlocking (Side) | 1 | Blue | 22 AWG | 12 AWG | 15 A | Horizontal with Board | 300 VDC | ||||||||||
 Same Sky (Formerly CUI Devices) | Screw - Leaf Spring Wire Guard | 0.197 in | 5 mm | Through Hole | Interlocking (Side) | 1 | Blue | 22 AWG | 12 AWG | 15 A | Vertical with Board | 300 VDC | M2.5 | Stainless Steel | Copper Alloy - Tin Plated | 3.5 Lb-In | 0.4 Nm | 4 | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | Steel - Zinc Plated | |
 Same Sky (Formerly CUI Devices) | Screw - Leaf Spring Wire Guard | 0.197 in | 5 mm | Through Hole | 24 | Interlocking (Side) | 1 | Blue | 22 AWG | 12 AWG | 15 A | Vertical with Board | 300 VDC | ||||||||||
 Same Sky (Formerly CUI Devices) | Screw - Leaf Spring Wire Guard | 0.197 in | 5 mm | Through Hole | Interlocking (Side) | 1 | Blue | 22 AWG | 12 AWG | 15 A | Vertical with Board | 300 VDC | 8 | ||||||||||
Same Sky (Formerly CUI Devices) | Screw - Leaf Spring Wire Guard | 0.197 in | 5 mm | Through Hole | Interlocking (Side) | 1 | Blue | 22 AWG | 12 AWG | 15 A | Horizontal with Board | 300 VDC | M2.5 | Stainless Steel | Copper Alloy - Tin Plated | 3.5 Lb-In | 0.4 Nm | 15 | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | Steel - Zinc Plated | |
 Same Sky (Formerly CUI Devices) | Screw - Leaf Spring Wire Guard | 0.197 in | 5 mm | Through Hole | Interlocking (Side) | 1 | Blue | 22 AWG | 12 AWG | 15 A | Horizontal with Board | 300 VDC | M2.5 | Stainless Steel | Copper Alloy - Tin Plated | 3.5 Lb-In | 0.4 Nm | 4 | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | Steel - Zinc Plated | |
Same Sky (Formerly CUI Devices) | Screw - Leaf Spring Wire Guard | 0.197 in | 5 mm | Through Hole | Interlocking (Side) | 1 | Blue | 22 AWG | 12 AWG | 15 A | Vertical with Board | 300 VDC | 4 | ||||||||||
Same Sky (Formerly CUI Devices) | Screw - Leaf Spring Wire Guard | 0.197 in | 5 mm | Through Hole | Interlocking (Side) | 1 | Blue | 22 AWG | 12 AWG | 15 A | Horizontal with Board | 300 VDC | M2.5 | Stainless Steel | Copper Alloy - Tin Plated | 3.5 Lb-In | 0.4 Nm | 17 | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | Steel - Zinc Plated | |
Same Sky (Formerly CUI Devices) | Screw - Leaf Spring Wire Guard | 0.197 in | 5 mm | Through Hole | Interlocking (Side) | 1 | Blue | 22 AWG | 12 AWG | 15 A | Horizontal with Board | 300 VDC | M2.5 | Stainless Steel | Copper Alloy - Tin Plated | 3.5 Lb-In | 0.4 Nm | 20 | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | Steel - Zinc Plated | |
 Same Sky (Formerly CUI Devices) | Screw - Leaf Spring Wire Guard | 0.197 in | 5 mm | Through Hole | Interlocking (Side) | 1 | Blue | 22 AWG | 12 AWG | 15 A | Vertical with Board | 300 VDC | 10 |
