11LC040 Series

Catalog

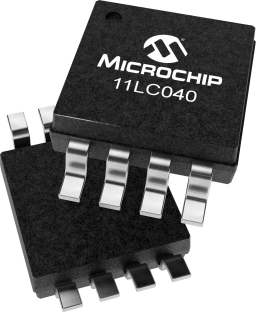

4K, 512 X 8 2.5V SERIAL EE, EXT 3 SOT-23 1.3MM T/R ROHS COMPLIANT: YES

Part	Technology	Memory Size	Mounting Type	Memory Format	Clock Frequency	Write Cycle Time - Word	Write Cycle Time - Page	Memory Interface (Type)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Memory Type	Memory Width	Memory Depth	Package Name	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Package Length	Package Width
Microchip Technology 11LC040T-E/TT	EEPROM	4 Kbit	Surface Mount	EEPROM	100 kHz	5 ms	5 ms	Single Wire	2.5 V	5.5 V	Non-Volatile	8 bit	512	SOT-23-3	SC-59 SOT-23-3 TO-236-3	125 °C	-40 °C
Microchip Technology 11LC040T-I/SN	EEPROM	4 Kbit	Surface Mount	EEPROM	100 kHz	5 ms	5 ms	Single Wire	2.5 V	5.5 V	Non-Volatile	8 bit	512	8-SOIC		85 °C	-40 °C	0.154 in	3.9 mm
Microchip Technology 11LC040-I/MS	EEPROM	4 Kbit	Surface Mount	EEPROM	100 kHz	5 ms	5 ms	Single Wire	2.5 V	5.5 V	Non-Volatile	8 bit	512	8-MSOP 8-TSSOP 8-MSOP		85 °C	-40 °C	0.118 in	3 mm
Microchip Technology 11LC040T-E/MS	EEPROM	4 Kbit	Surface Mount	EEPROM	100 kHz	5 ms	5 ms	Single Wire	2.5 V	5.5 V	Non-Volatile	8 bit	512	8-MSOP 8-TSSOP 8-MSOP		125 °C	-40 °C	0.118 in	3 mm
Microchip Technology 11LC040T-I/MS	EEPROM	4 Kbit	Surface Mount	EEPROM	100 kHz	5 ms	5 ms	Single Wire	2.5 V	5.5 V	Non-Volatile	8 bit	512	8-MSOP 8-TSSOP 8-MSOP		85 °C	-40 °C	0.118 in	3 mm
Microchip Technology 11LC040T-E/MNY	EEPROM	4 Kbit	Surface Mount	EEPROM	100 kHz	5 ms	5 ms	Single Wire	2.5 V	5.5 V	Non-Volatile	8 bit	512	8-TDFN	8-WFDFN Exposed Pad	125 °C	-40 °C	2 mm	3 mm
Microchip Technology 11LC040-I/SN	EEPROM	4 Kbit	Surface Mount	EEPROM	100 kHz	5 ms	5 ms	Single Wire	2.5 V	5.5 V	Non-Volatile	8 bit	512	8-SOIC		85 °C	-40 °C	0.154 in	3.9 mm
Microchip Technology 11LC040T-E/SN	EEPROM	4 Kbit	Surface Mount	EEPROM	100 kHz	5 ms	5 ms	Single Wire	2.5 V	5.5 V	Non-Volatile	8 bit	512	8-SOIC		125 °C	-40 °C	0.154 in	3.9 mm
Microchip Technology 11AA040-I/TO	EEPROM	4 Kbit	Through Hole	EEPROM	100 kHz	5 ms	5 ms	Single Wire	1.8 V	5.5 V	Non-Volatile	8 bit	512	TO-92-3	TO-226-3 TO-92-3 (TO-226AA)	85 °C	-40 °C
Microchip Technology 11LC040T-I/TT	EEPROM	4 Kbit	Surface Mount	EEPROM	100 kHz	5 ms	5 ms	Single Wire	2.5 V	5.5 V	Non-Volatile	8 bit	512	SOT-23-3	SC-59 SOT-23-3 TO-236-3	85 °C	-40 °C
