CM Series

Common Mode Chokes / Filters 170ohms 100MHz 10A 1 Choke SMD

Manufacturer: Laird Technologies EMI

Catalog

Common Mode Chokes / Filters 170ohms 100MHz 10A 1 Choke SMD

Catalog

Common Mode Chokes / Filters 170ohms 100MHz 10A 1 Choke SMD

Part	Package / Case	Package / Case	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Mounting Type	Impedance @ Frequency	Height (Max) [z]	Height (Max) [z]	Filter Type	Current Rating (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Height (Max) [Max] [z]	Voltage Rating - DC	Height (Max) [z]	DC Resistance (DCR) (Max)

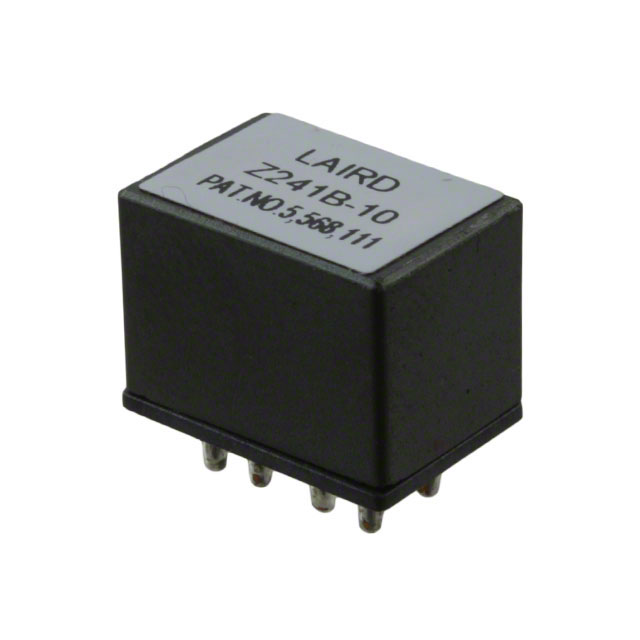

Laird Technologies EMI CM5740Z241B-10	Vertical	8 PC Pad	1.3 mOhm	125 °C	-40 C	4	Through Hole	100 Ohms	0.424 in	10.77 mm	Power Signal Line	20 A	0.395 in	0.57 in	10.03 mm	14.48 mm

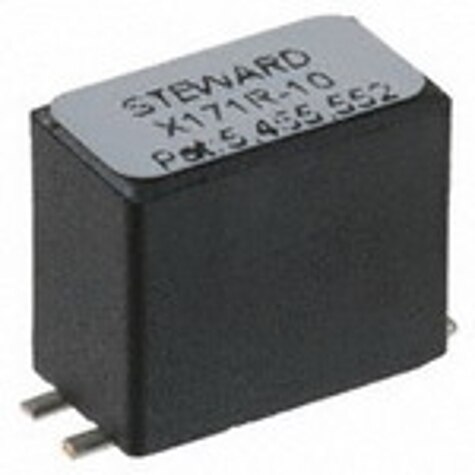

Laird Technologies EMI CM2545X171R-10	Vertical 4 Flat Lead		10 mOhm	125 °C	-40 C	2	Surface Mount	170 Ohms		0.4 in	Power Line	10 A	0.248 in	0.448 "	6.3 mm	11.38 mm	10.16 mm

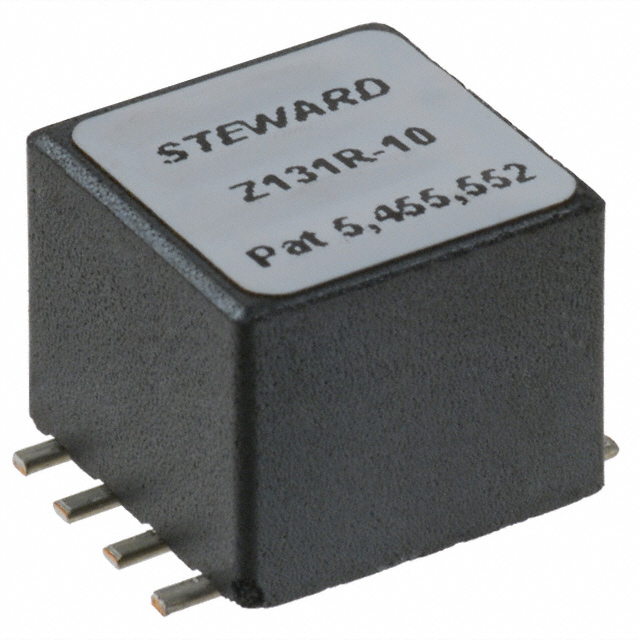

Laird Technologies EMI CM4545Z131R-10	Vertical 8 Flat Lead		10 mOhm	125 °C	-40 C	4	Surface Mount	130 Ohms		0.4 in	Power Line	10 A	0.448 "	0.555 in	11.38 mm	14.1 mm	10.16 mm

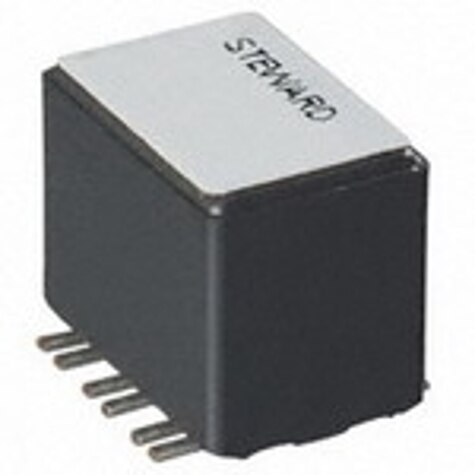

Laird Technologies EMI CM4732V201R-10	Vertical 12 Flat Lead		10 mOhm	125 °C	-40 C	6	Surface Mount	200 Ohms		9.45 mm	Power Line	8 A	0.32 "	0.47 in	8 mm	11.94 mm		0.372 in	30 V
Laird Technologies EMI CM2545X171B-10	Vertical 4 PC Pin		10 mOhm	125 °C	-40 C	2	Through Hole	170 Ohms		9.5 mm	Power Line	10 A	0.248 in	0.448 "	6.3 mm	11.38 mm			340 V	0.374 in

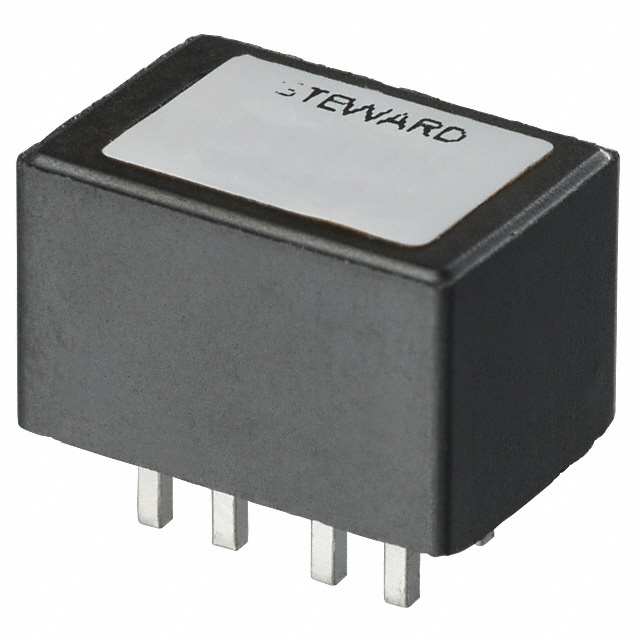

Laird Technologies EMI CM5740Z171B-10	Vertical	8 PC Pad		125 °C	-40 C	4	Through Hole	170 Ohms		0.508 in	Power Line	20 A	0.395 in	0.57 in	10.03 mm	14.48 mm	12.9 mm				1 mOhm
