A3B-26PA Series

Catalog

CONN HEADER R/A 26POS 2MM

Part	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Material Flammability Rating	Termination	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Contact Shape	Contact Finish Thickness - Mating	Number of Positions Loaded	Fastening Type	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Finish - Mating	Insulation Color	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Material	Shrouding	Contact Material	Style	Voltage Rating	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights [z]	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height

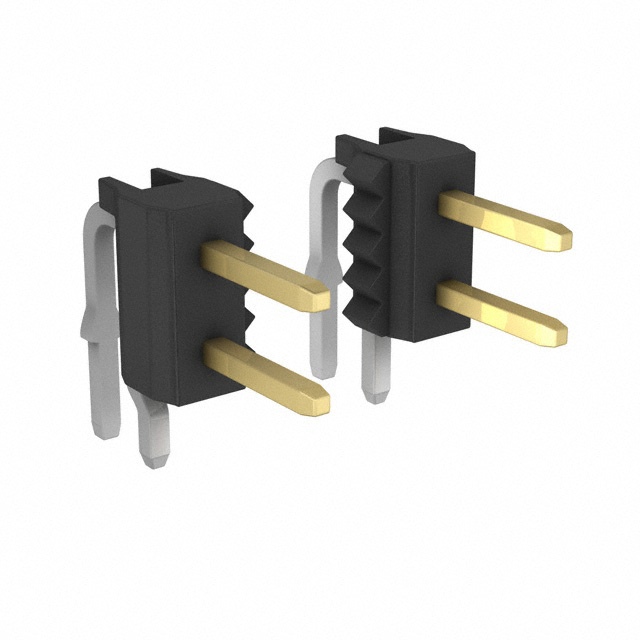

Hirose Electric Co Ltd A3B-26PA-2DS(71)	0.079 "	2 mm	2 mm	0.079 in	Tin	UL94 V-0	Kinked Pin Solder	4 mm	0.157 in	2	Square	Flash	All	Push-Pull	3.5 mm	0.138 in	Right Angle Through Hole	Gold	Black	Header	26	-55 C	85 °C	Male Pin	2.6 mm	0.102 in	Nylon Polyamide (PA)	Unshrouded	Brass	Board to Board Cable	200 VAC
Hirose Electric Co Ltd A3B-26PA-2DS(51)	0.079 "	2 mm	2 mm	0.079 in		UL94 V-0	Kinked Pin Solder	4 mm	0.157 in	2	Square		All	Push-Pull	3.5 mm	0.138 in	Right Angle Through Hole	Gold	Black	Header	26	-55 C	85 °C	Male Pin	2.6 mm	0.102 in	Nylon Polyamide (PA)	Unshrouded	Brass	Board to Board Cable	200 VAC

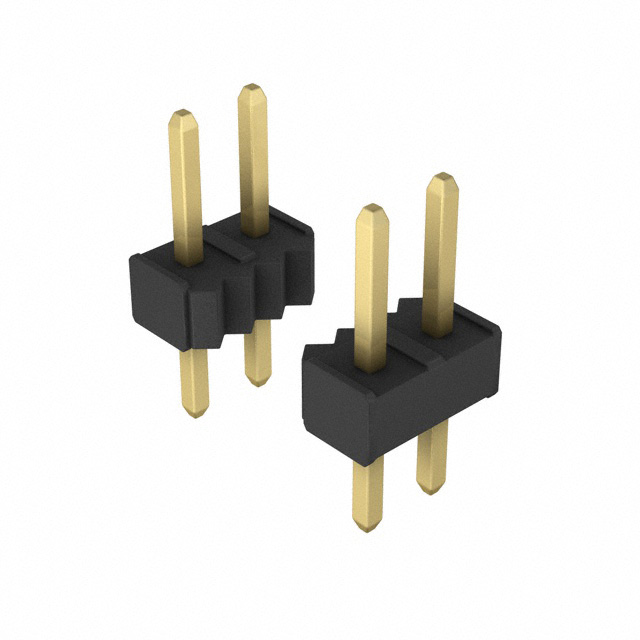

Hirose Electric Co Ltd A3B-26PA-2DSA(71)	0.079 "	2 mm	2 mm	0.079 in	Tin	UL94 V-0	Solder			2	Square	Flash	All	Push-Pull	3.5 mm	0.138 in	Through Hole	Gold	Black	Header	26	-55 C	85 °C	Male Pin	2.6 mm	0.102 in	Nylon Polyamide (PA)	Unshrouded	Brass	Board to Board Cable	200 VAC	78.7 µin	2 µm	6 mm 8.8 mm	7.9 mm	0.311 in	1.8 mm	0.071 in
Hirose Electric Co Ltd A3B-26PA-2DSA(51)	0.079 "	2 mm	2 mm	0.079 in		UL94 V-0	Solder			2	Square		All	Push-Pull	3.5 mm	0.138 in	Through Hole	Gold	Black	Header	26	-55 C	85 °C	Male Pin	2.6 mm	0.102 in	Nylon Polyamide (PA)	Unshrouded	Brass	Board to Board Cable	200 VAC				7.9 mm	0.311 in	1.8 mm	0.071 in
