1437529 Series

Catalog

CONN IC DIP SOCKET 8POS GOLD

Part	Contact Resistance	Material Flammability Rating	Contact Finish - Mating	Termination	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Mounting Type	Contact Material - Mating	Contact Material - Post [custom]	Housing Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length	Current Rating (Amps)	Type
TE Connectivity AMP Connectors 8-1437529-1	10 mOhm	UL94 V-0	Gold	Solder	0.1 "	2.54 mm	8	2	4	47.2 µin	1.2 µm	Closed Frame	Gold	-55 C	105 ░C	0.4 in	DIP	Through Hole	Beryllium Copper	Copper Alloy	Polyester Thermoplastic	0.51 µm	20 µin	0.1 in	2.54 mm
TE Connectivity AMP Connectors 6-1437529-6	10 mOhm	UL94 V-0	Gold	Solder	0.1 "	2.54 mm	6	2	3 positions or pins	47.2 µin	1.2 µm	Closed Frame	Gold	-55 C	105 ░C	0.4 in	DIP	Through Hole	Beryllium Copper	Copper Alloy	Polyester Thermoplastic	0.51 µm	20 µin	0.1 in	2.54 mm

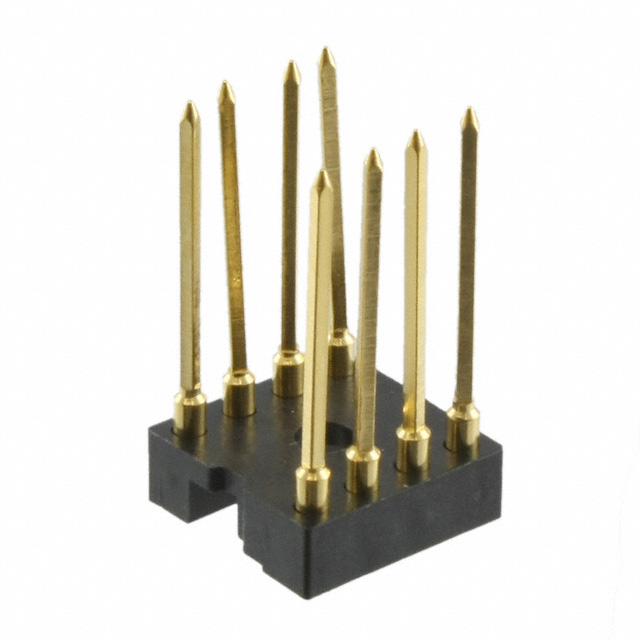

TE Connectivity AMP Connectors 7-1437529-6	10 mOhm		Gold	Solder	0.1 "	2.54 mm	8	2	4			Closed Frame	Gold	-55 C	125 °C	0.3 in	DIP	Through Hole	Copper Alloy	Copper Alloy				0.1 in	2.54 mm	0.125 in	3.18 mm	3 A	7.62 mm
