395-013 Series
Manufacturer: EDAC Inc.
Beta
⌘K
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Material - Insulation | Termination Rows | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Mounting Type | Number of Positions | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Flange Feature | Number of Positions/Bay/Row | Card Type | Contact Type | Color | Features | Number of Rows | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

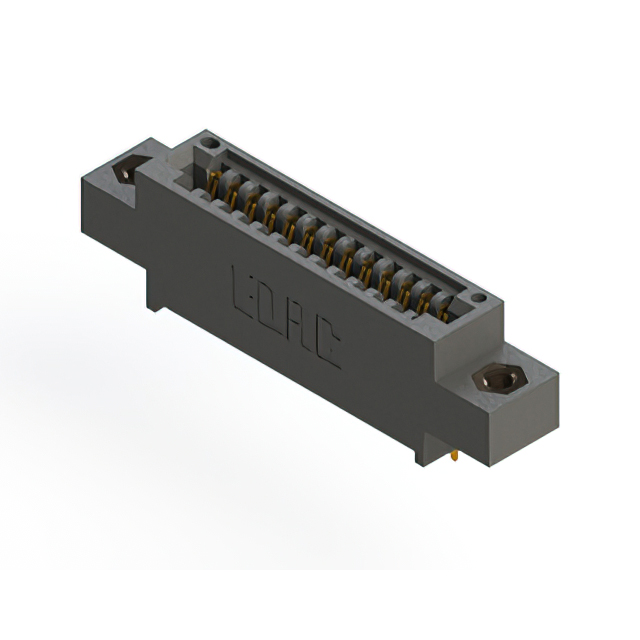

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Through Hole | 13 | Female | -40 C | 105 ░C | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | 13 | Non Specified - Single Edge | Cantilever | Black | Card Guides | 1 | Copper Alloy | ||

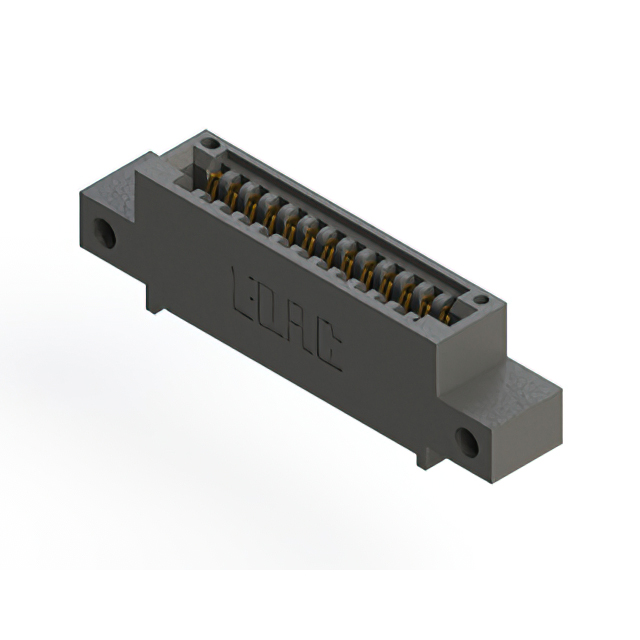

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Through Hole | 13 | Female | -40 C | 105 ░C | Solder | Floating Bobbin Top Mount Opening | 13 | Non Specified - Single Edge | Cantilever | Black | 1 | Copper Alloy | 0.116 " | 2.95 mm | |

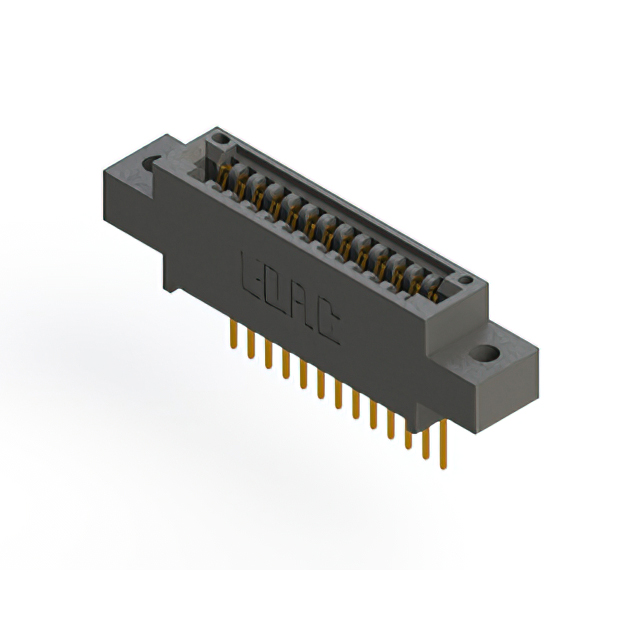

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Through Hole | 13 | Female | -40 C | 105 ░C | Solder | Side Mount Opening Unthreaded | 13 | Non Specified - Single Edge | Cantilever | Black | 1 | Copper Alloy | 0.128 " | 3.25 mm | |

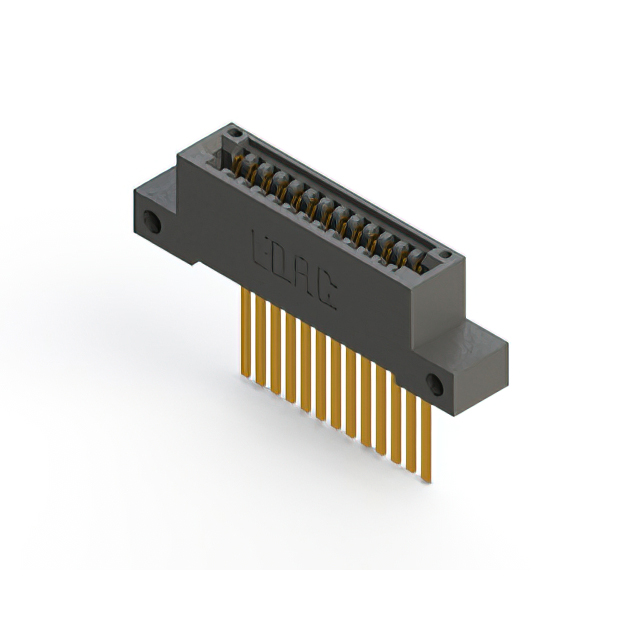

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Through Hole | 13 | Female | -40 C | 105 ░C | Wire Wrap | Side Mount Opening Unthreaded | 13 | Non Specified - Single Edge | Cantilever | Black | 1 | Copper Alloy | 0.128 " | 3.25 mm | |

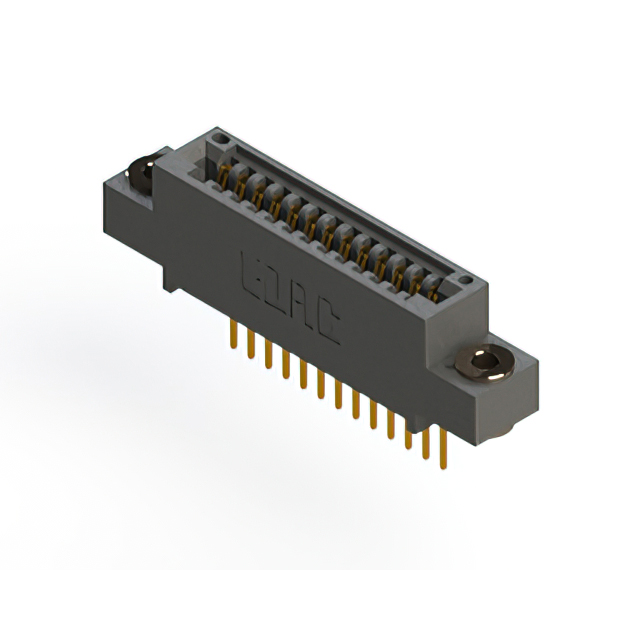

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Through Hole | 13 | Female | -40 C | 105 ░C | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | 13 | Non Specified - Single Edge | Cantilever | Black | 1 | Copper Alloy | |||

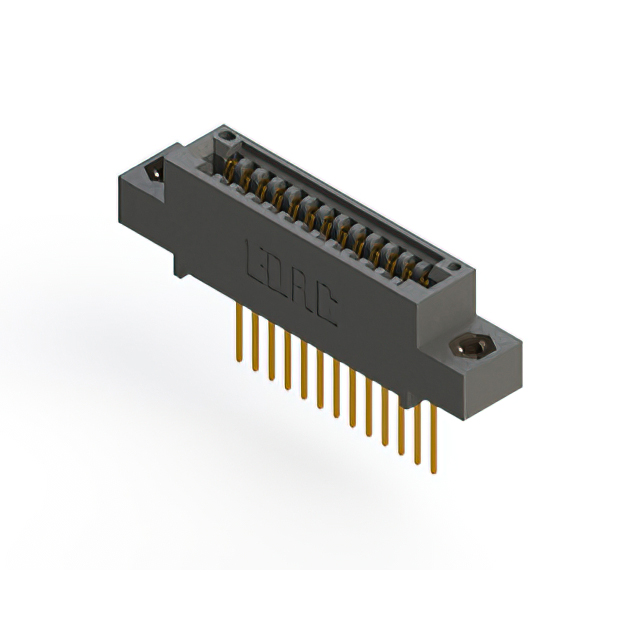

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Through Hole | 13 | Female | -40 C | 105 ░C | Solder | 13 | Non Specified - Single Edge | Cantilever | Black | 1 | Copper Alloy | 0.128 " | 3.25 mm | ||

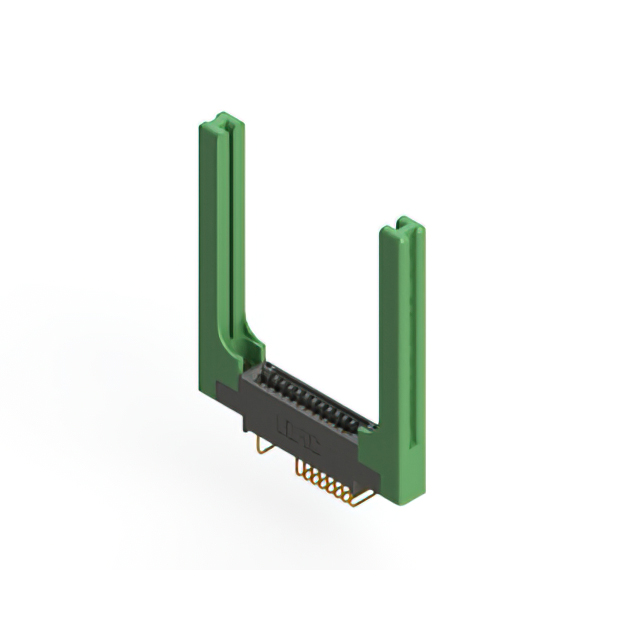

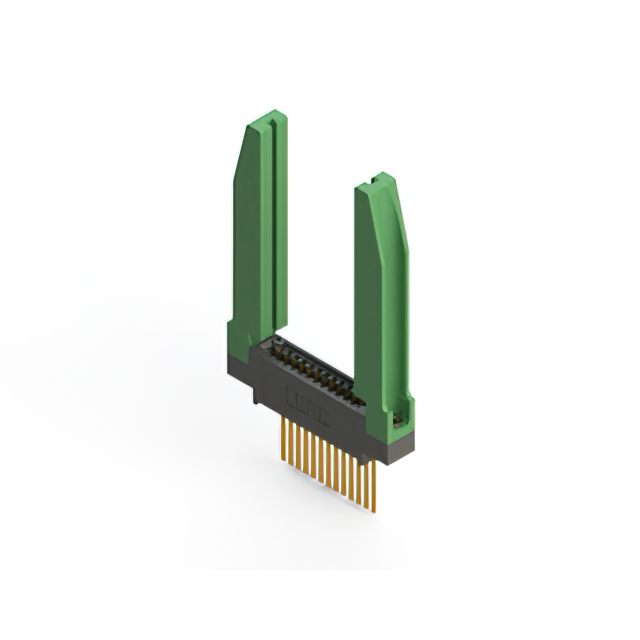

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Right Angle Through Hole | 13 | Female | -40 C | 105 ░C | Solder | 4-40 Threaded Insert Top Mount Opening | 13 | Non Specified - Single Edge | Cantilever | Black | Card Guides | 1 | Copper Alloy | ||

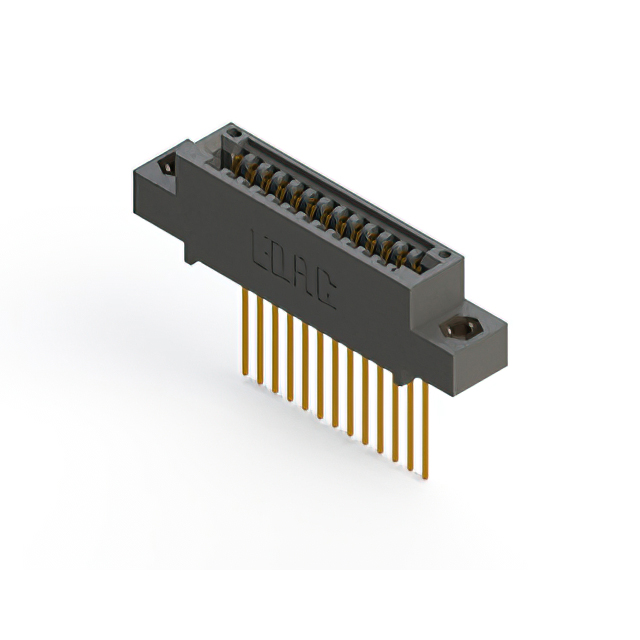

 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Through Hole | 13 | Female | -40 C | 105 ░C | Wire Wrap | Flush Mount Side Opening Unthreaded | 13 | Non Specified - Single Edge | Cantilever | Black | 1 | Copper Alloy | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Through Hole | 13 | Female | -40 C | 105 ░C | Solder | 13 | Non Specified - Single Edge | Cantilever | Black | 1 | Copper Alloy | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | Through Hole | 13 | Female | -40 C | 105 ░C | Solder | Flush Mount Top Opening Unthreaded | 13 | Non Specified - Single Edge | Cantilever | Black | 1 | Copper Alloy | 0.128 " | 3.25 mm |
