1N3154 Series

Catalog

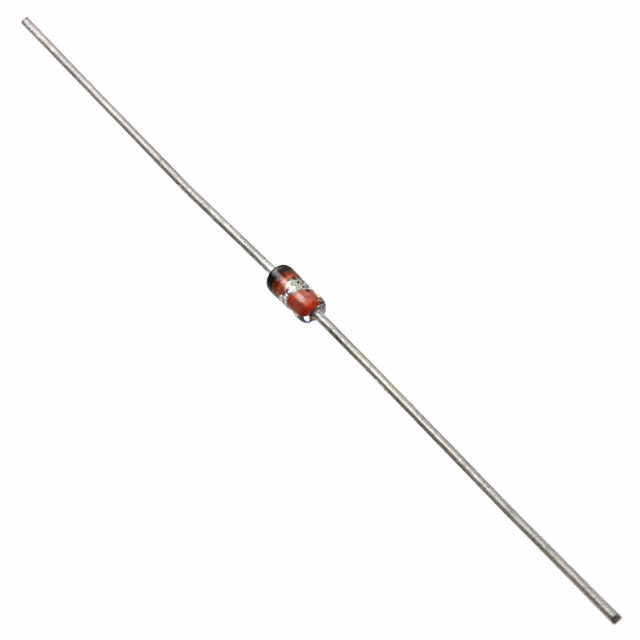

TEMPERATURE COMPENSATED DO-35 ROHS COMPLIANT: YES

Part	Package / Case	Power - Max [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Impedance (Max) (Zzt) [Max]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Zener (Nom) (Vz)
Microchip Technology 1N3154A-1	Axial DO-204AA DO-7	500 mW	10 µA	1.5 V	DO-7	15 Ohms	5 %	175 ░C	-65 °C	Through Hole	8.8 V
Microchip Technology 1N3154A-1/TR	Axial DO-204AA DO-7	500 mW	10 µA	1.5 V	DO-7	15 Ohms	5 %	175 ░C	-65 °C	Through Hole	8.8 V
Microchip Technology 1N3154UR-1	DO-213AA	500 mW	10 µA	1.5 V	DO-213AA	15 Ohms	5 %	175 °C	-65 °C	Surface Mount	8.8 V
Microchip Technology 1N3154-1/TR	Axial DO-204AA DO-7	500 mW	10 µA	1.5 V	DO-7	15 Ohms	5 %	175 ░C	-65 °C	Through Hole	8.8 V
