Headers & Wire Housings 3.3mm Skt Double Row 12 Pos
Headers & Wire Housings 3.3mm Skt Double Row 12 Pos
| Part | Number of Positions | Accessory Type | For Use With/Related Products | Note | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Fastening Type | Contact Termination | Color | Number of Rows | Mounting Type | Insulation Material | Contact Type | Connector Type | Number of Rows [custom] | Row Spacing [x] | Row Spacing [x] | Mated Stacking Heights | Features | Termination | Contact Finish - Post | Material Flammability Rating | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Pitch - Mating | Pitch - Mating | Insulation Color | Number of Positions Loaded | Style | Contact Shape | Contact Length - Post | Contact Length - Post | Voltage Rating | Contact Material | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

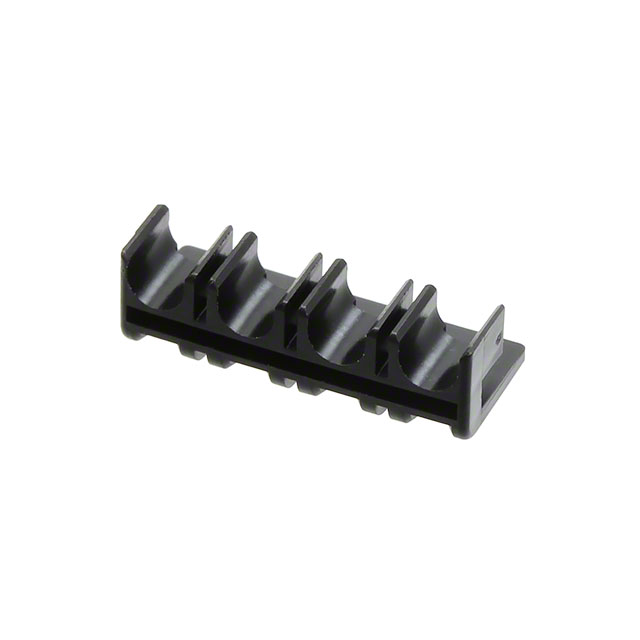

 Hirose Electric Co Ltd | 4 | Retainer | DF33C Series | ||||||||||||||||||||||||||||||||||||||

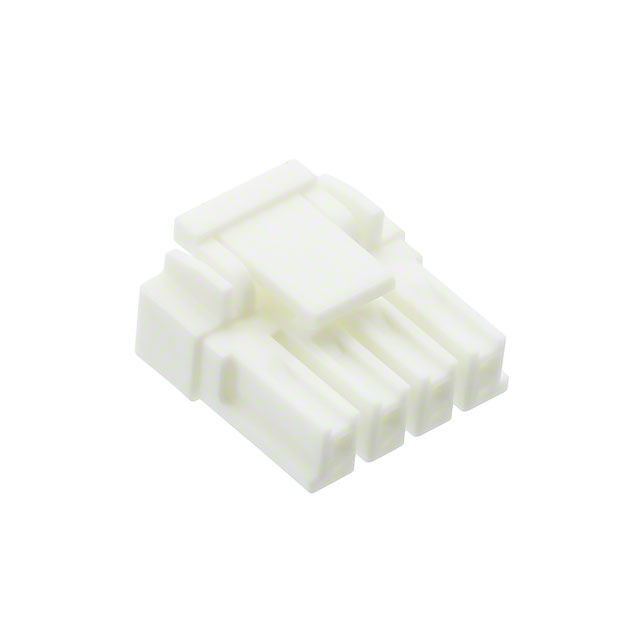

 Hirose Electric Co Ltd | 4 | Contacts Not Included | 85 °C | -35 °C | 0.13 in | 3.3 mm | Latch Lock | Crimp | White | 1 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Female Socket | Receptacle | |||||||||||||||||||||||||||

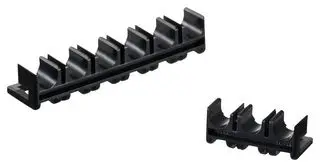

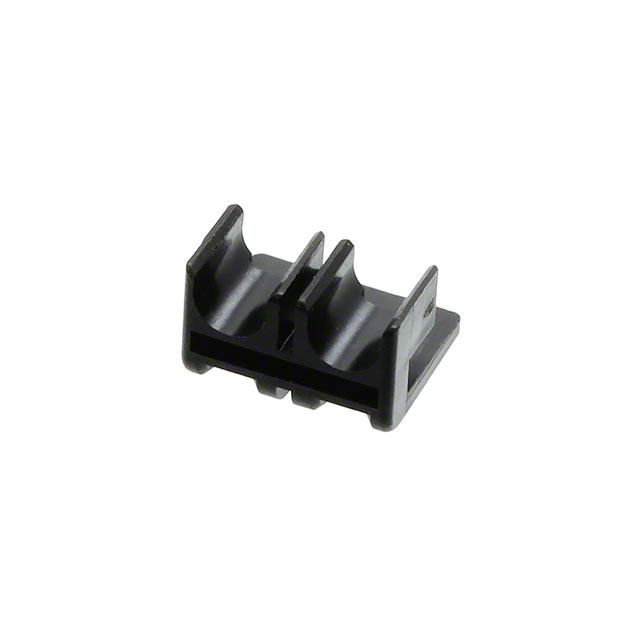

 Hirose Electric Co Ltd | 2 | Retainer | DF33C Series | ||||||||||||||||||||||||||||||||||||||

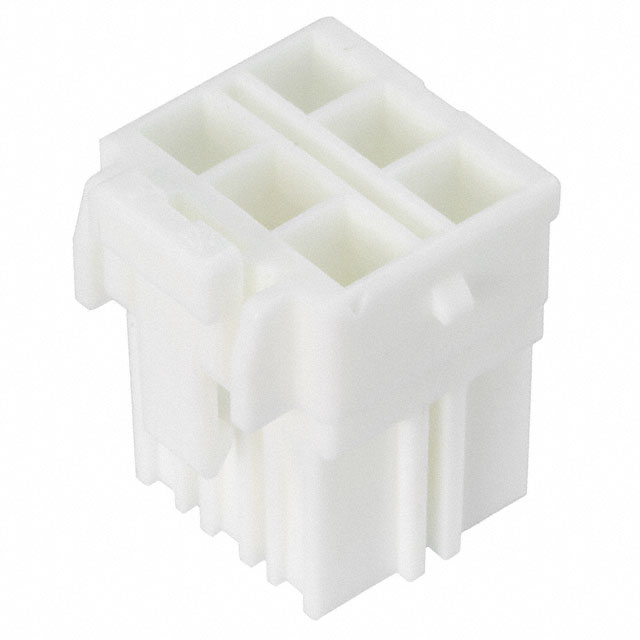

 Hirose Electric Co Ltd | 6 | Contacts Not Included | 85 °C | -35 °C | 0.13 in | 3.3 mm | Latch Lock | Crimp | White | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Female Socket | Receptacle | 2 | 5.8 mm | 0.228 " | |||||||||||||||||||||||||
 Hirose Electric Co Ltd | 4 | Retainer | DF33C Series | ||||||||||||||||||||||||||||||||||||||

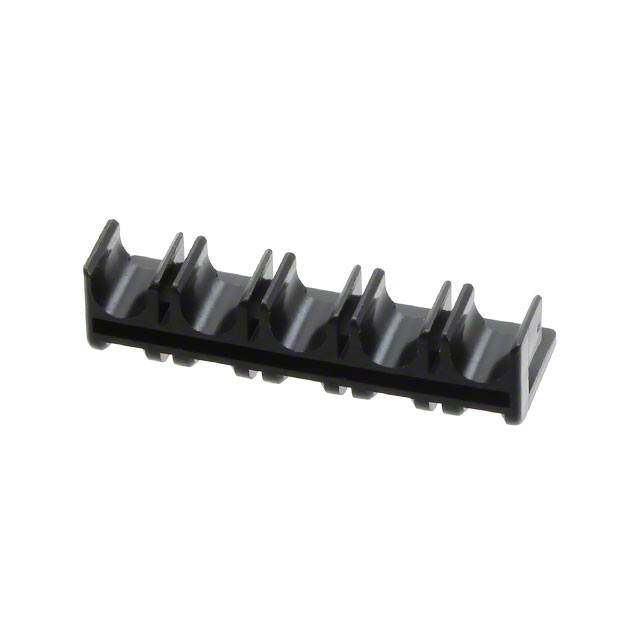

 Hirose Electric Co Ltd | 5 | Retainer | DF33C Series | ||||||||||||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | 6 | Contacts Not Included | 85 °C | -35 °C | 0.13 in | 3.3 mm | Latch Lock | Crimp | White | 1 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Female Socket | Receptacle | |||||||||||||||||||||||||||

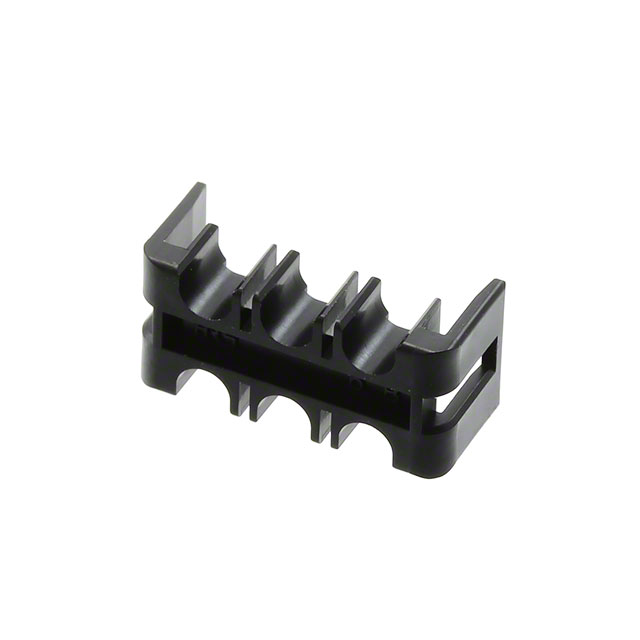

 Hirose Electric Co Ltd | 6 | Retainer | DF33C Series | ||||||||||||||||||||||||||||||||||||||

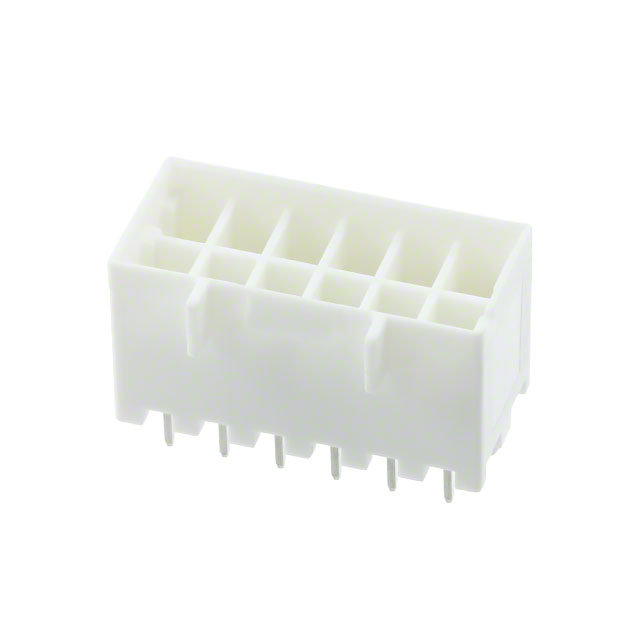

 Hirose Electric Co Ltd | 12 | 85 °C | -35 °C | Locking Ramp | Through Hole | Nylon Polyamide (PA) | Male Pin | Header | 2 | 17.6 mm | Board Guide | Solder | Tin | UL94 V-0 | 0.228 in | 5.8 mm | 11.5 mm | 0.453 in | 39.4 µin | 1 µm | 0.13 in | 3.3 mm | Beige | All | Board to Cable/Wire | Square | 0.118 in | 3 mm | 500 V | Brass | Shrouded - 4 Wall | ||||||||||

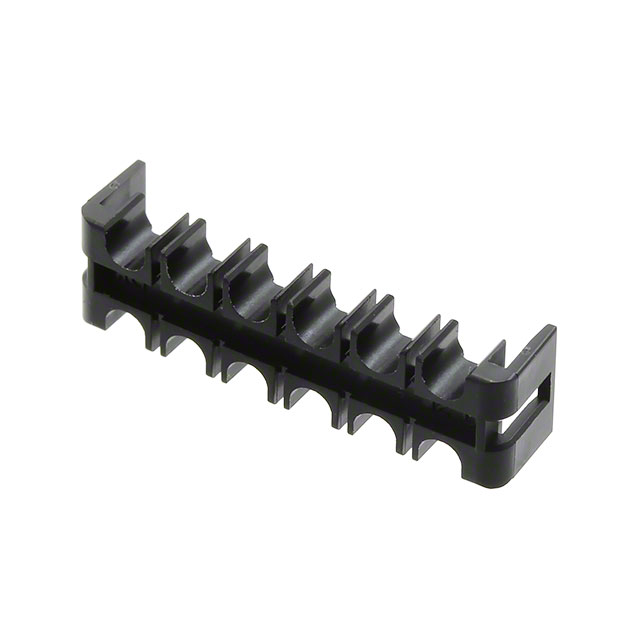

 Hirose Electric Co Ltd | 12 | Retainer | DF33C Series |
