ZX Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

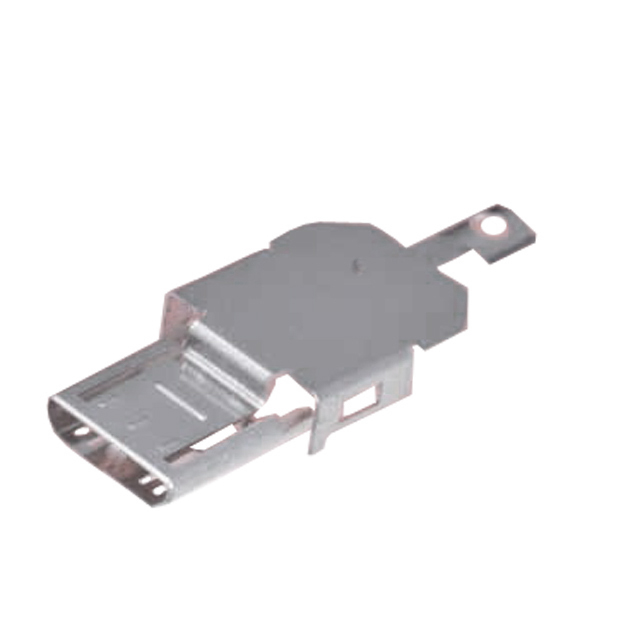

USB CONNECTORS MICRO B PLUG SHIELD TOP FOR ZX40
| Part | For Use With/Related Products | Accessory Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Contacts | Specifications | Number of Ports | Voltage - Rated | Mounting Type | Termination | Connector Type | Shielding | Current Rating (Amps) | Gender | Mating Cycles | Mounting Feature | Ingress Protection | Features | Shell/Shielding Material | Material Flammability Rating | Contact Finish | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | USB - microUSB B Plug | Shielding Plate Top | ||||||||||||||||||||
 Hirose Electric Co Ltd | 85 °C | -30 ░C | 5 | USB 2.0 | 1 | 30 VAC | Surface Mount Right Angle Through Hole | Solder | USB - micro B | Shielded | 1.8 A | Receptacle | 10000 | Horizontal Reverse Mount | Splash Proof | |||||||
 Hirose Electric Co Ltd | 85 °C | -30 ░C | 5 | USB 2.0 | 1 | 30 VAC | Board Edge Cutout Surface Mount Right Angle | Solder | USB - micro B | Shielded | 1.8 A | Receptacle | 10000 | Horizontal Mid Mount | Pick and Place Solder Retention | |||||||
 Hirose Electric Co Ltd | 85 °C | -30 ░C | 5 | USB 2.0 | 1 | 30 VAC | Through Hole | Solder | USB - micro B | Shielded | 1.8 A | Plug | 10000 | Vertical | Stainless Steel | UL94 V-0 | Gold | Black |
