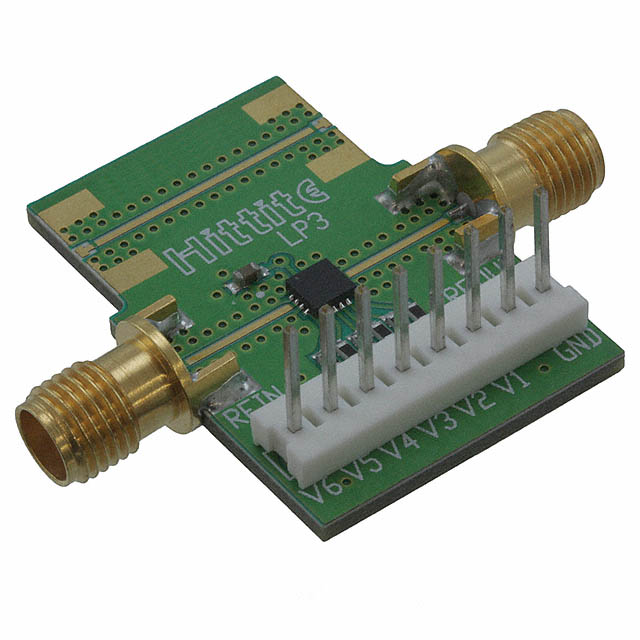

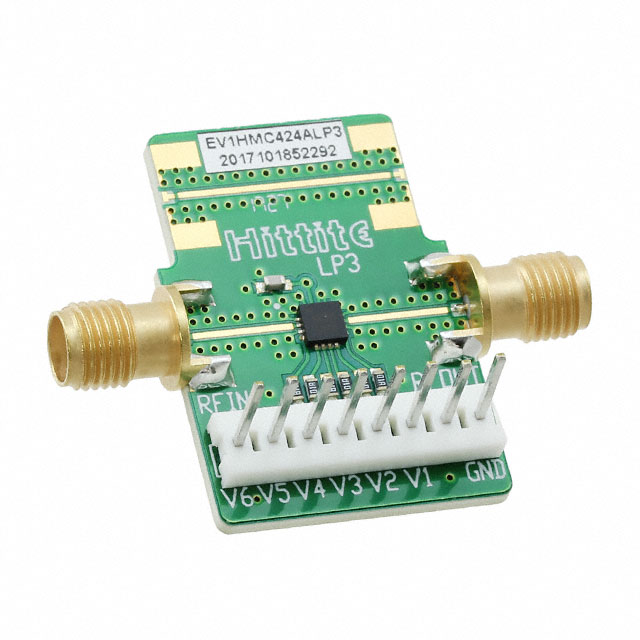

HMC424ALP3E Series
0.1 GHz to 13.0 GHz, 0.5 dB LSB, 6-Bit, GaAs Digital Attenuator
Manufacturer: Analog Devices
Catalog
0.1 GHz to 13.0 GHz, 0.5 dB LSB, 6-Bit, GaAs Digital Attenuator
Key Features
• Attenuation range: 0.5 dB (LSB) steps to 31.5 dB±0.5 dB typical step error
• ±0.5 dB typical step error
• Low insertion loss: 2.8 dB at 4 GHz
• High linearity at VEE= −3 VInput P0.1dB: 22 dBm typicalInput IP3: 45 dBm typical
• Input P0.1dB: 22 dBm typical
• Input IP3: 45 dBm typical
• High RF input power handling: 25 dBm maximum
• Low relative phase: 30° typical at 6.0 GHz
• Single-supply operation: −3 V to −5 V
• 16-lead, 3 mm × 3 mm LFCSP package
Description
AI
The HMC424ALP3E is a broadband, 6-bit, gallium arsenide (GaAs), digital attenuator in low cost, leadless surface-mount package with a 31.5 dB attenuation control range in 0.5 dB steps.The HMC424ALP3E offers excellent attenuation accuracy of ±(0.2 dB + 4% of attenuation state) and high input linearity with a typical insertion loss of less than 4 dB over the specified frequency range from 0.1 GHz to 13.0 GHz. The attenuator bit values are 0.5 dB (LSB), 1 dB, 2 dB, 4 dB, 8 dB, and 16 dB for a total attenuation of 31.5 dB with a ±0.5 dB typical step error.The device allows a user to program the attenuation state via six parallel control inputs toggled between 0 V and VEE.The HMC424ALP3E operates with a single negative supply voltage from −3 V to −5 V, and requires an external level shifter to interface with a CMOS/transistor to transistor logic (TTL) interface.The HMC424ALP3E comes in a RoHS compliant, compact, 3 mm × 3 mm, 16-lead lead frame chip scale package (LFCSP).ApplicationsCellular infrastructureMicrowave radios and very small aperture terminals (VSATs)Test equipment and sensorsIntermediate frequency (IF) and RF designsMilitary and space
