A3-44DA Series

Catalog

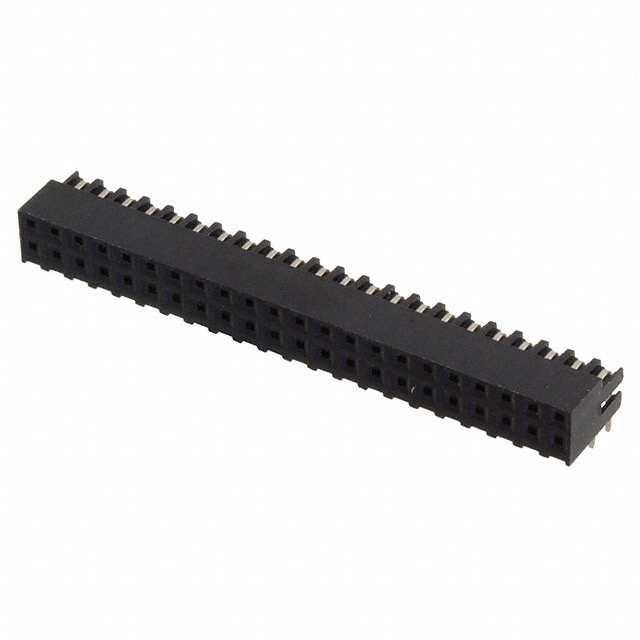

CONN RCPT 44P 0.079 GOLD PCB R/A

Part	Contact Material	Insulation Material	Applications	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Voltage Rating	Style	Connector Type	Contact Finish - Post	Mounting Type	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
Hirose Electric Co Ltd A3-44DA-2DS(71)	Phosphor Bronze	Nylon Polyamide (PA)	General Purpose Telecommunications	Square	39.4 çin	1 çm	Solder	0.079 "	2 mm	44	Gold	All	Black	8 µin	0.203 µm	UL94 V-0	200 VAC	Board to Board Cable	Receptacle	Tin	Right Angle Through Hole	2	2.5 mm	0.098 in	2 mm	0.079 in	4.65 mm	0.183 in	Female Socket	Push-Pull	-55 C	85 °C
