BU941 Series

Catalog

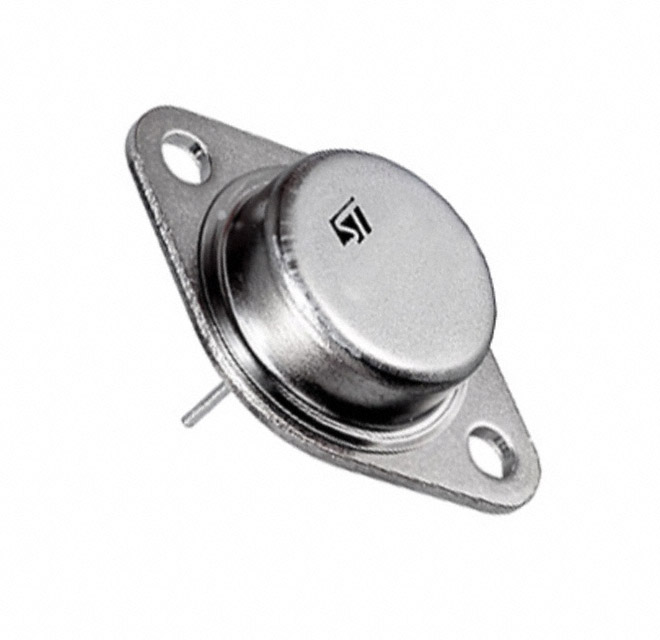

TRANS NPN DARL 400V 15A TO3

Part	Operating Temperature	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Current - Collector (Ic) (Max) [Max]	Grade
STMicroelectronics BU941	200 °C	TO-3	2 V	300	180 W	100 µA	Chassis Mount	400 V	TO-204AA TO-3	15 A
STMicroelectronics BU941ZP	175 °C	TO-247-3	2 V	300	155 W	100 µA	Through Hole	350 V	TO-247-3	15 A
STMicroelectronics BU941ZTFP	175 °C	TO-220AB	1.8 V	300	55 W	100 µA	Through Hole	350 V	TO-220-3 Full Pack	15 A
STMicroelectronics BU941ZPFI	175 °C	TO-3PF	2 V	300	65 W	100 µA	Through Hole	350 V	TO-3PF	15 A	Automotive
