A3-16DA Series

Catalog

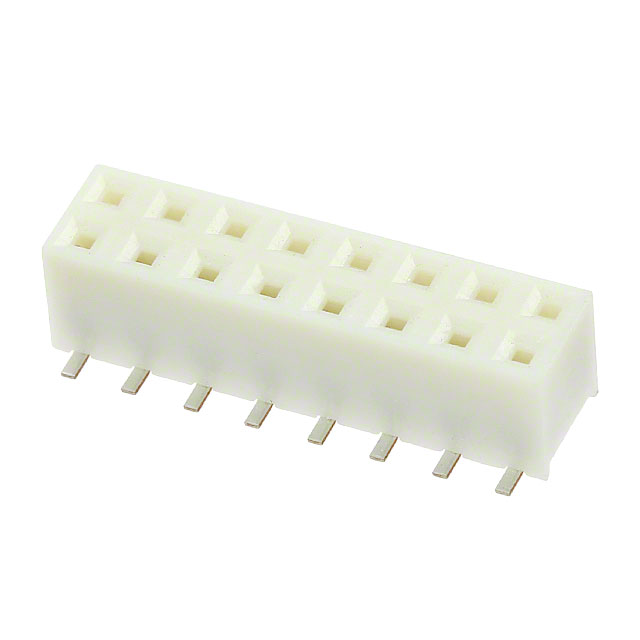

CONN RCPT 16POS 0.079 GOLD SMD

Part	Applications	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Voltage Rating	Pitch - Mating	Pitch - Mating	Fastening Type	Style	Row Spacing - Mating	Row Spacing - Mating	Termination	Mounting Type	Mated Stacking Heights	Number of Rows [custom]	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish - Mating	Number of Positions	Connector Type	Insulation Color	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type
Hirose Electric Co Ltd A3-16DA-2SV(71)	General Purpose Telecommunications	Polyphenylene Sulfide (PPS)	39.4 çin	1 çm	Phosphor Bronze	Square	200 VAC	0.079 "	2 mm	Push-Pull	Board to Board Cable	2 mm	0.079 in	Solder	Surface Mount	5.1 mm 6 mm	2	0.165 in	4.2 mm	All	Gold	16	Receptacle	Brown	Tin	-55 C	85 °C	UL94 V-0	8 µin	0.203 µm	Female Socket
Hirose Electric Co Ltd A3-16DA-2SV	General Purpose Telecommunications	Polyphenylene Sulfide (PPS)	39.4 çin	1 çm	Phosphor Bronze	Square	200 VAC	0.079 "	2 mm	Push-Pull	Board to Board Cable	2 mm	0.079 in	Solder	Surface Mount	5.1 mm 6 mm	2	0.165 in	4.2 mm	All	Gold	16	Receptacle	Brown	Tin	-55 C	85 °C	UL94 V-0	8 µin	0.203 µm	Female Socket
