AMSRO Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 5V 2.5W
| Part | Efficiency | Mounting Type | Number of Outputs | Applications | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Approval Agency | Type | Voltage - Output 1 | Current - Output (Max) [Max] | Power (Watts) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 84 % | Through Hole | 1 | ITE (Commercial) | 36 V | -40 °C | 85 °C | 6.5 V | 3-SIP Module | 10 mm | 0.39 " | 5.4 mm | 11 mm | 0.21 " | 0.43 in | CE cURus | Non-Isolated PoL Module | 5 V | 500 mA | ||

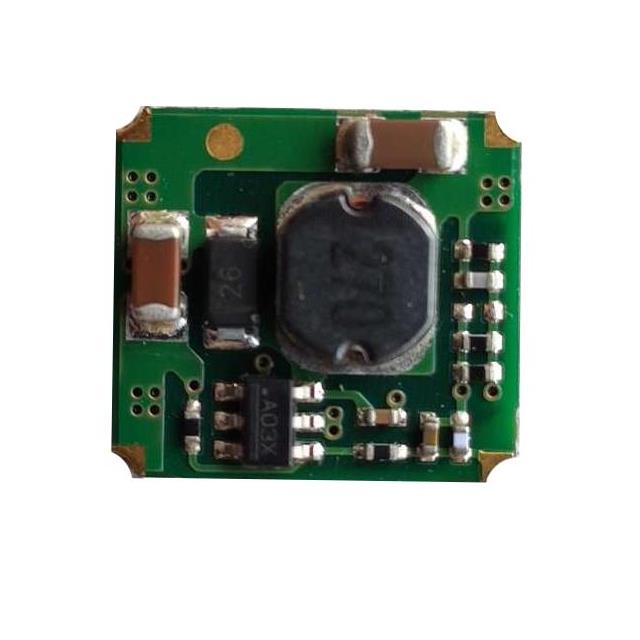

 aimtec | 93 % | Surface Mount | 1 | ITE (Commercial) | 36 V | -40 °C | 85 °C | 12 V | 4-SMD Module | 13.5 mm | 0.53 " | 12.5 mm | 3.5 mm | 0.49 " | 0.14 in | Non-Isolated PoL Module | 9 V | 500 mA | 4.5 W | Remote On/Off | |

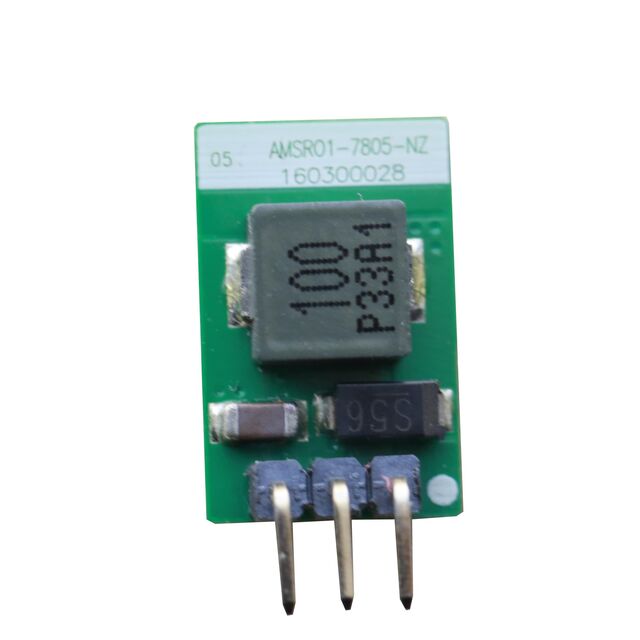

aimtec | 91 % | Through Hole | 1 | ITE (Commercial) | 36 V | -40 °C | 85 °C | 19 V | 3-SIP Module | 10 mm | 0.39 " | 5.4 mm | 11 mm | 0.21 " | 0.43 in | CE cURus | Non-Isolated PoL Module | 12 V | 500 mA | 6 W | |

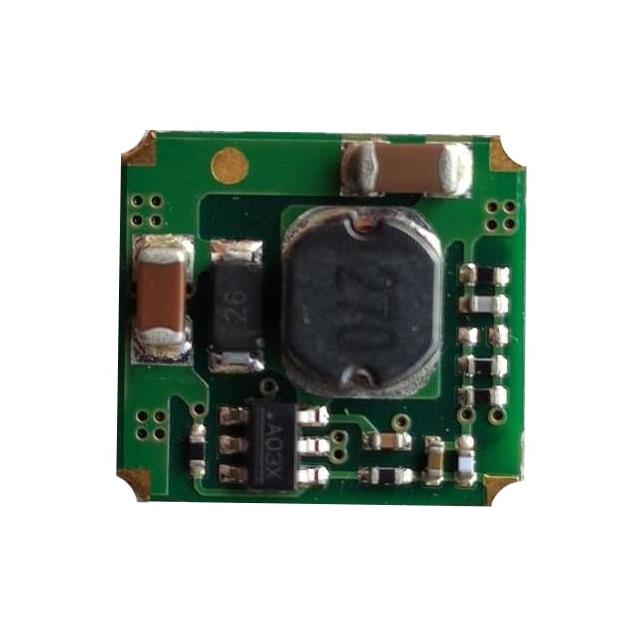

 aimtec | 95 % | Surface Mount | 1 | ITE (Commercial) | 36 V | -40 C | 85 °C | 19 V | 4-SMD Module | 13.5 mm | 0.53 " | 12.5 mm | 3.5 mm | 0.49 " | 0.14 in | Non-Isolated PoL Module | 15 V | 500 mA | 7.5 W | Remote On/Off | |
aimtec | 80 % | Through Hole | 1 | ITE (Commercial) | 36 V | -40 °C | 85 °C | 4.75 V | 3-SIP Module | 10 mm | 0.39 " | 5.4 mm | 11 mm | 0.21 " | 0.43 in | CE cURus | Non-Isolated PoL Module | 3.3 V | 500 mA | 1.65 W |
