AT25M01 Series

1Mb SPI Serial EEPROM

Catalog

1Mb SPI Serial EEPROM

Part	Supplier Device Package	Package / Case [y]	Package / Case	Package / Case [x]	Write Cycle Time - Word, Page	Memory Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Memory Organization	Technology	Clock Frequency	Memory Size	Mounting Type	Memory Interface
Microchip Technology AT25M01-SHM-B	8-SOIJ	5.3 mm	8-SOIC	0.209 "	5 ms	Non-Volatile	5.5 V	1.7 V	EEPROM	85 °C	-40 °C	128K x 8	EEPROM	20 MHz	1 Mbit	Surface Mount	SPI
Microchip Technology AT25M01-SSHM-B	8-SOIC	3.9 mm	8-SOIC	0.154 in	5 ms	Non-Volatile	5.5 V	1.7 V	EEPROM	85 °C	-40 °C	128K x 8	EEPROM	20 MHz	1 Mbit	Surface Mount	SPI
Microchip Technology AT25M01-SHM-T	8-SOIC	5.3 mm	8-SOIC	0.209 "	5 ms	Non-Volatile	5.5 V	1.7 V	EEPROM	85 °C	-40 °C	128K x 8	EEPROM	20 MHz	1 Mbit	Surface Mount	SPI

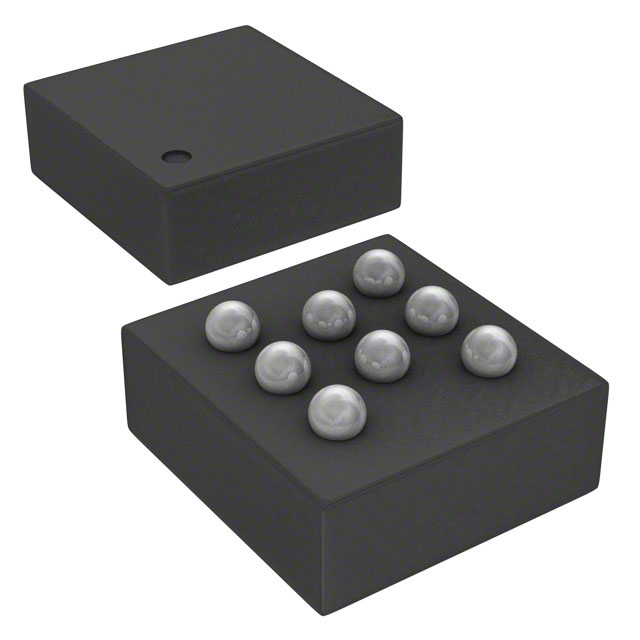

Microchip Technology AT25M01-UUM-T	8-WLCSP		8-UFBGA WLCSP		5 ms	Non-Volatile	5.5 V	1.7 V	EEPROM	85 °C	-40 °C	128K x 8	EEPROM	20 MHz	1 Mbit	Surface Mount	SPI

Catalog

1Mb SPI Serial EEPROM

Key Features

• + 128K x 8-bit (1 Mbit)

• + Supports SPI modes 0 and 3

• + Up to 20 MHz clock frequency

• + Self-Timed Erase and Write Cycles (5 ms max.)

• + Read current: 10 mA (Max) at 20 MHz

• + Write current: 7 mA (Max) at 5 V

• + Standby current: 3 µA (Max) at 1.7V, 5 µA (Max) at 5 V

• + Block Write Protection: Protect 1/4, 1/2 or Entire Array

• + More than 1 million erase/write cycles

• + Data retention 100 years

• + Industrial: -40°C to 85°C

• + Factory Programming Available

• + Available in standard packages including 8-lead SOIC and SOIJ, and advanced packages including 8-ball wLCSP and Die in wafer form

Description

The Microchip AT25M01 is a 1 Mb Serial EEPROM utilizing the industry standard Serial Peripheral Interface (SPI) compatible serial bus. The device is organized as one block of 128K x 8-bit and is optimized for use in consumer electronics, industrial, medical, and automotive applications where reliable and dependable nonvolatile memory storage is essential. Software write protection allows the user to protect ¼, ½, or the entire memory array. A hardware write protect pin is also provided, which additionally protects against inadvertent writes to the status register. The EEPROM is available in a variety of space-saving packaging options.
