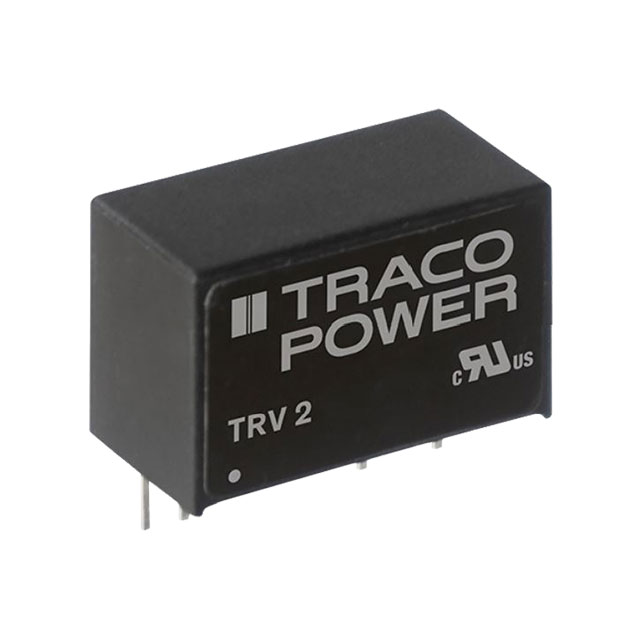

TRV 2M Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 9.6-14.4VIN 3.3VOUT 600MA 2W ENCAPSULATED SIP-9 MEDICAL, REGULATED
| Part | Package / Case | Type | Current - Output (Max) [Max] | Power (Watts) | Approval Agency | Voltage - Output 1 | Voltage - Isolation | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Standard Number | Voltage - Input (Min) [Min] | Number of Outputs | Voltage - Input (Max) [Max] | Mounting Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 9-SIP Module 4 Leads | Isolated Module | 600 mA | 1.98 W | CB cURus | 3.3 V | 7 kV | 79 % | -40 C | 95 °C | 19.6 mm | 12.5 mm | 0.77 in | 0.49 " | 9.9 mm | 0.39 in | 60601-1; 62368-1 | 9.6 V | 1 | 14.4 V | Through Hole | ITE (Commercial) Medical |
Traco Power | 9-SIP Module 4 Leads | Isolated Module | 600 mA | 1.98 W | CB cURus | 3.3 V | 7 kV | 78 % | -40 C | 95 °C | 19.6 mm | 12.5 mm | 0.77 in | 0.49 " | 9.9 mm | 0.39 in | 60601-1; 62368-1 | 4.5 V | 1 | 7 V | Through Hole | ITE (Commercial) Medical |
