MDF51 Series

Catalog

CONN HEADER SMD 2POS 13MM

Part	Fastening Type	Material Flammability Rating	Contact Shape	Contact Finish - Post	Termination	Shrouding	Mounting Type	Number of Positions Loaded	Insulation Color	Number of Positions	Style	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Voltage Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Insulation Material	Contact Type	Contact Material	Features	Contact Length - Post [custom]	Contact Length - Post
Hirose Electric Co Ltd MDF51SU-2P-13V(23)	Detent Lock	UL94 V-0	Rectangular	Tin	Solder	Shrouded - 4 Wall	Surface Mount	All	Beige	2	Board to Cable/Wire	85 °C	-35 °C	Header	3000 V	39.4 µin	1 µm	1	13 mm	0.512 in	0.256 in	6.5 mm	Nylon Polyamide (PA)	Male Blade	Brass

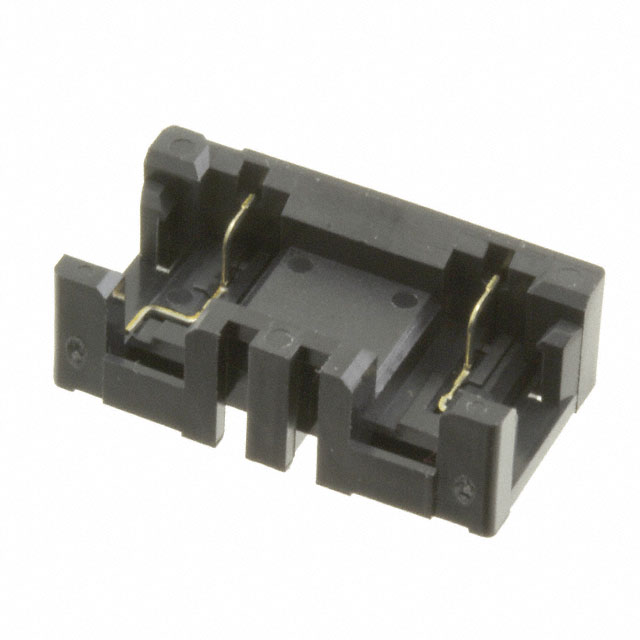

Hirose Electric Co Ltd MDF51K-2P-12DSA(20)	Detent Lock	UL94 V-0	Rectangular	Tin	Solder	Shrouded - 4 Wall	Through Hole	All	Black	2	Board to Cable/Wire	85 °C	-35 °C	Header	3000 V	39.4 µin	1 µm	1	12 mm	0.472 in	0.266 in	6.76 mm	Polybutylene Terephthalate (PBT)	Male Blade	Brass	Board Guide	0.11 in	2.79 mm
Hirose Electric Co Ltd MDF51SY-2P-13DSA(21)	Detent Lock	UL94 V-0	Rectangular	Tin	Solder	Shrouded - 4 Wall	Through Hole	All	White	2	Board to Cable/Wire	85 °C	-35 °C	Header	3000 V	39.4 µin	1 µm	1	13 mm	0.512 in	0.266 in	6.76 mm	Nylon Polyamide (PA)	Male Blade	Brass		0.11 in	2.79 mm
