DAC8222 Series
Manufacturer: Analog Devices
Beta
⌘K
DUAL 12-BIT DOUBLE-BUFFERED MULTIPLYING CMOS D/A CONVERTER
| Part | Supplier Device Package | Settling Time | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [custom] | Package / Case | Package / Case [custom] | Reference Type | Mounting Type | Architecture | Differential Output | Output Type | Number of Bits | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Data Interface | INL/DNL (LSB) | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

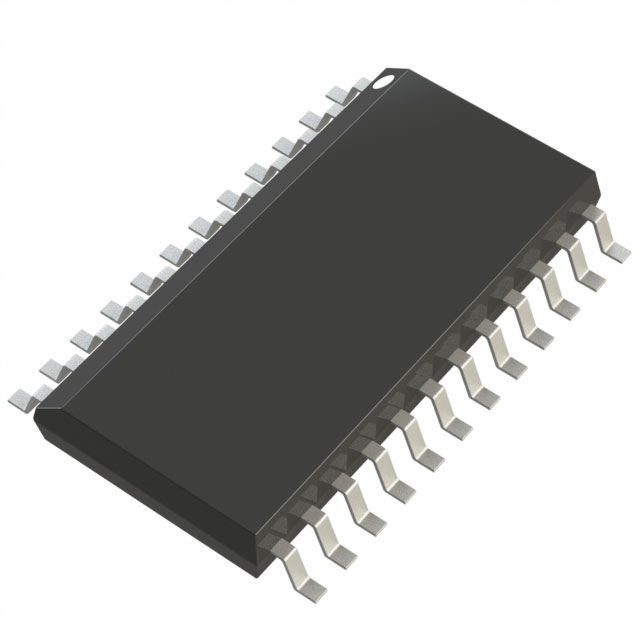

 Analog Devices | 24-SOIC | 1 µs | 85 °C | -40 °C | 7.5 mm | 24-SOIC | 0.295 in | External | Surface Mount | R-2R | Current - Unbuffered | 12 bits | 15 V | 5 V | Parallel | 1 LSB 4 LSB | 15 V | 5 V | |||
 Analog Devices | 24-PDIP | 24-DIP | Through Hole | 0.3 in | 7.62 mm |
