895-090 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 90POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Color	Card Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Number of Rows [custom]	Mounting Type	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Number of Positions	Contact Type	Features
EDAC Inc. 895-090-523-212	2	Polyphenylene Sulfide (PPS)	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	45	Solder	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Dual	2	Through Hole	0.1 "	2.54 mm	125 °C	-40 C	Gold	Copper Alloy	90	Cantilever

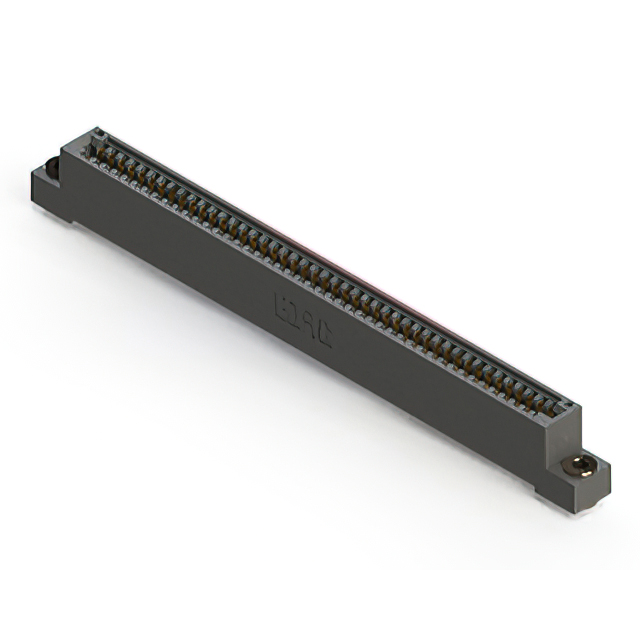

EDAC Inc. 895-090-556-203	2	Polyphenylene Sulfide (PPS)	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	45	Solder	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Dual	2	Board Edge Straddle Mount	0.1 "	2.54 mm	125 °C	-40 C	Gold	Copper Alloy	90	Cantilever	Card Extender
EDAC Inc. 895-090-520-804	2	Polyphenylene Sulfide (PPS)	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	45	Solder		0.156 "	3.96 mm	Dual	2	Through Hole	0.1 "	2.54 mm	125 °C	-40 C	Gold	Copper Alloy	90	Cantilever
EDAC Inc. 895-090-523-802	2	Polyphenylene Sulfide (PPS)	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	45	Solder		0.128 "	3.25 mm	Dual	2	Through Hole	0.1 "	2.54 mm	125 °C	-40 C	Gold	Copper Alloy	90	Cantilever
EDAC Inc. 895-090-500-807	2	Polyphenylene Sulfide (PPS)	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	45	Solder Eyelet(s)	M3 Threaded Insert Top Mount Opening			Dual	2	Through Hole	0.1 "	2.54 mm	125 °C	-40 C	Gold	Copper Alloy	90	Cantilever
EDAC Inc. 895-090-541-204	2	Polyphenylene Sulfide (PPS)	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	45	Wire Wrap	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Dual	2	Through Hole	0.1 "	2.54 mm	125 °C	-40 C	Gold	Copper Alloy	90	Cantilever

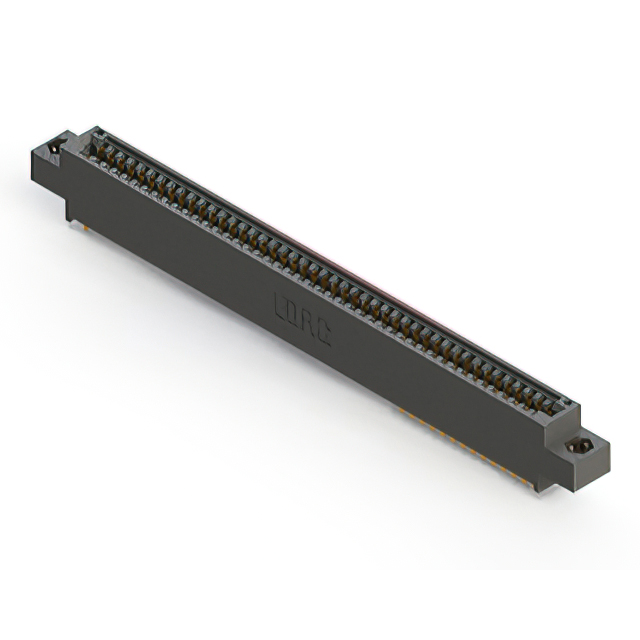

EDAC Inc. 895-090-520-808	2	Polyphenylene Sulfide (PPS)	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	45	Solder	4-40 Threaded Insert Top Mount Opening			Dual	2	Through Hole	0.1 "	2.54 mm	125 °C	-40 C	Gold	Copper Alloy	90	Cantilever
EDAC Inc. 895-090-500-502	2	Polyphenylene Sulfide (PPS)	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	45	Solder Eyelet(s)		0.128 "	3.25 mm	Dual	2	Through Hole	0.1 "	2.54 mm	125 °C	-40 C	Gold	Copper Alloy	90	Cantilever
EDAC Inc. 895-090-556-812	2	Polyphenylene Sulfide (PPS)	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	45	Solder	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Dual	2	Board Edge Straddle Mount	0.1 "	2.54 mm	125 °C	-40 C	Gold	Copper Alloy	90	Cantilever	Card Extender
EDAC Inc. 895-090-541-507	2	Polyphenylene Sulfide (PPS)	Black	Non Specified - Dual Edge	0.25 Ám	10 Áin	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	45	Wire Wrap	M3 Threaded Insert Top Mount Opening			Dual	2	Through Hole	0.1 "	2.54 mm	125 °C	-40 C	Gold	Copper Alloy	90	Cantilever
