EMIF02 Series

2-line EMI filter and ESD protection for microphones

Catalog

2-line EMI filter and ESD protection for microphones

Part	Package / Case	Mounting Type	Applications	Height [z]	Height [z]	Technology	Filter Order	Values	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Channel (Ohms)	Type	Size / Dimension [x]	Size / Dimension [y]	Number of Channels	Size / Dimension [y]	Size / Dimension [x]	Resistance - Channel (Ohms)	Attenuation Value	Center / Cutoff Frequency	Filter Order

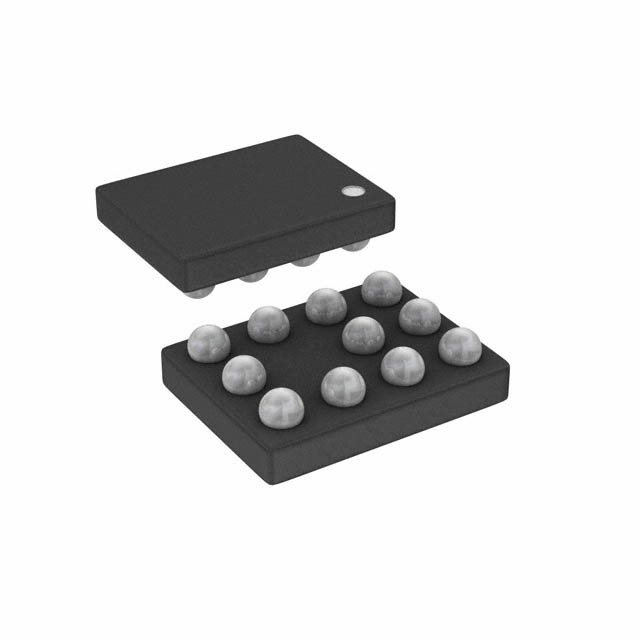

STMicroelectronics EMIF02-USB03F2	11-WFBGA FCBGA	Surface Mount	USB	0.028 in	0.7 mm	RC (Pi)	2	20 pF 33 Ohms	85 °C	-40 C	33 Ohms	Low Pass	0.076 " 1.94 mm	0.057 in 1.44 mm	2
STMicroelectronics EMIF02-USB04F3	9-UFBGA FCBGA	Surface Mount	Data Lines for Mobile Devices	0.022 in	0.55 mm	RC (Pi)	2	20 pF 33 Ohms	85 °C	-40 C	33 Ohms	Low Pass	1.14 mm	1.14 mm	3	0.045 "	0.045 in

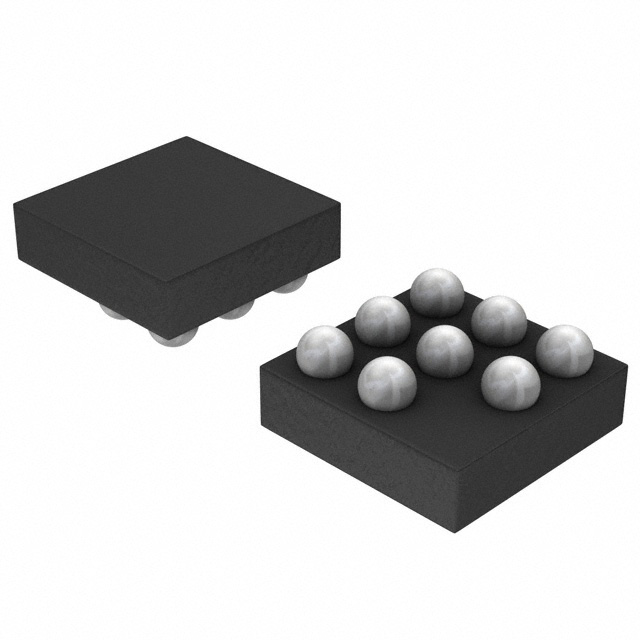

STMicroelectronics EMIF02-USB05F2	8-WFBGA FCBGA	Surface Mount	USB	0.028 in	0.7 mm	RC (Pi)	2	1.5 kOhms 30 pF 33 Ohms	85 °C	-40 C	33 Ohms	Low Pass	0.076 " 1.92 mm	0.036 " 0.92 mm	2			1.5k
STMicroelectronics EMIF02-USB05C2	8-WFBGA FCBGA	Surface Mount	USB	0.03 in	0.76 mm	RC (Pi)	2	1.5 kOhms 30 pF 33 Ohms	85 °C	-40 C	33 Ohms	Low Pass	0.076 " 1.92 mm	0.036 " 0.92 mm	2			1.5k

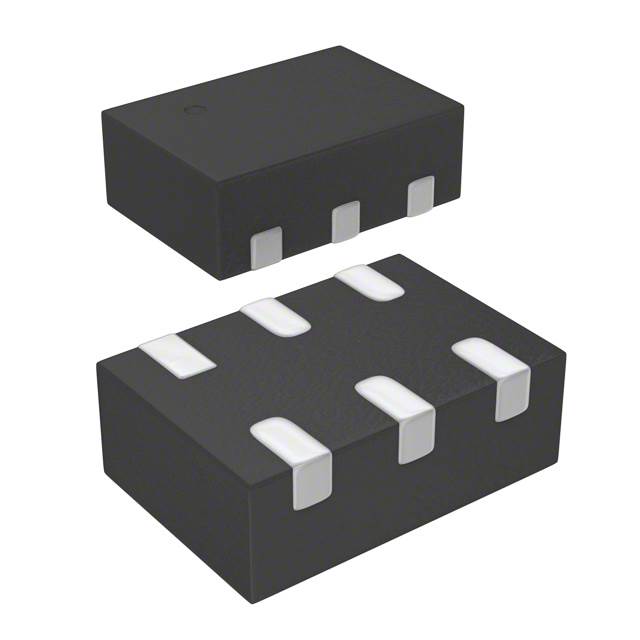

STMicroelectronics EMIF02-1003M6	6-UFDFN	Surface Mount	Data Lines for Mobile Devices	0.024 in	0.6 mm	RC (Pi)	2	30 pF 100 Ohms	85 °C	-40 C	100 Ohms	Low Pass	1.45 mm	1 mm	2	0.039 in	0.057 "		26 dB	900 MHz

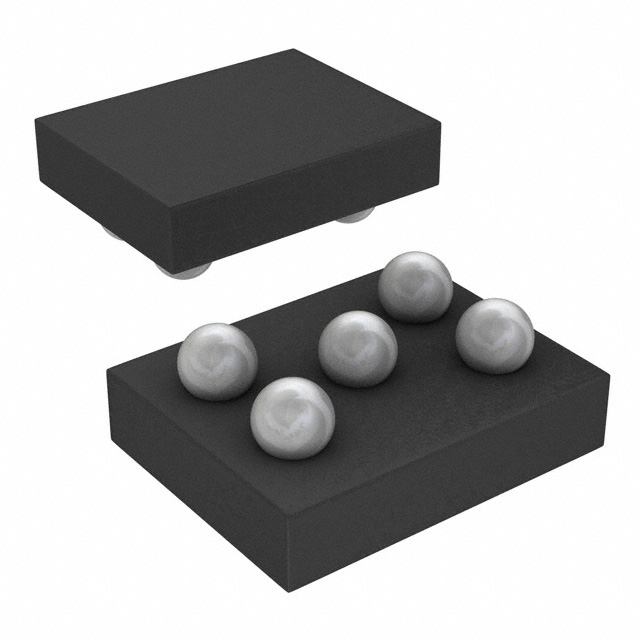

STMicroelectronics EMIF02-SPK01F2	5-WFBGA FCBGA	Surface Mount	Data Lines for Mobile Devices	0.026 in	0.65 mm	RC (Pi)	2	10 Ohms 200 pF	85 °C	-40 C		Low Pass	1.47 mm	1.07 mm	2	0.042 "	0.058 "
STMicroelectronics EMIF02-MIC03F2	5-WFBGA FCBGA	Surface Mount	Data Lines for Mobile Devices	0.028 in	0.7 mm	RC (Pi)	2	68 Ohms 100 pF	85 °C	-40 C	68 Ohms	Low Pass	1.47 mm	1.07 mm	2	0.042 "	0.058 "
STMicroelectronics EMIF02-SPK01M6	6-UFDFN	Surface Mount	Audio	0.024 in	0.6 mm	RC (Pi)	2	10 Ohms 220 pF	85 °C	-30 ░C		Low Pass	1.45 mm	1 mm	2	0.039 in	0.057 "
STMicroelectronics EMIF02-MIC07F3	8-WFBGA FCBGA	Surface Mount	Audio	0.026 in	0.65 mm	RC		25 Ohms 830 pF 1250 pF 2200 Ohms	85 °C	-40 C	25 Ohms	Low Pass	1.17 mm	1.17 mm	2	0.046 in	0.046 "	2.2k			3rd
STMicroelectronics EMIF02-MIC02F2	6-WFBGA FCBGA	Surface Mount	Audio	0.028 in	0.7 mm	RC (Pi)	2	16 pF 470 Ohms	85 °C	-40 C	470 Ohms	Low Pass	1.42 mm	0.92 mm	2	0.036 in	0.056 in

Catalog

2-line EMI filter and ESD protection for microphones

Description

The EMIF02-MIC03F2 is a highly integrated device designed to suppress EMI/RFI noise in all systems subjected to electromagnetic interferences. The EMIF02 Flip-Chip packaging means the package size is equal to the die size. This filter includes an ESD protection circuitry which prevents damage to the application when subjected to ESD surges up 15 kV.
