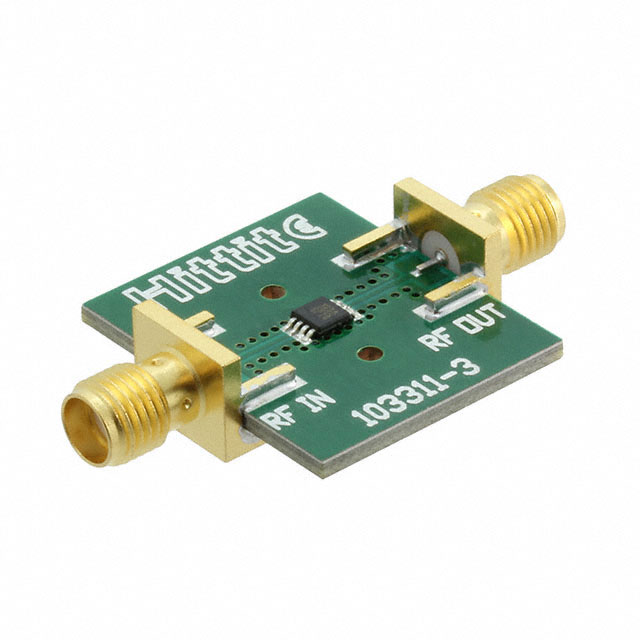

Passive SMT Freq. Doubler, 2 - 4 GHz
Key Features
• Conversion Loss: 13 dB
• Fo, 3Fo, 4Fo Isolation: 33 dB
• Input Drive Level: +10 to +15 dBm
Description
AI
The HMC189AMS8(E) is a miniature passive frequency doubler in a plastic 8-lead MSOP package. The suppression of undesired fundamental and higher order harmonics is 33 dB typical with respect to input signal levels. The doubler uses the same diode/balun technology used in Hittite MMIC mixers. The doubler is ideal for high volume applications where frequency doubling of a lower frequency is more economical than directly generating a higher frequency. The passive Schottky diode doubler technology contributes no measurable additive phase noise onto the multiplied signal.The HMC189AMS8(E) is a replacement for the HMC189MS8(E).ApplicationsWireless Local LoopLMDS, VSAT, and Point-to-Point RadiosUNII & HiperLANTest Equipment
