MS-156LP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

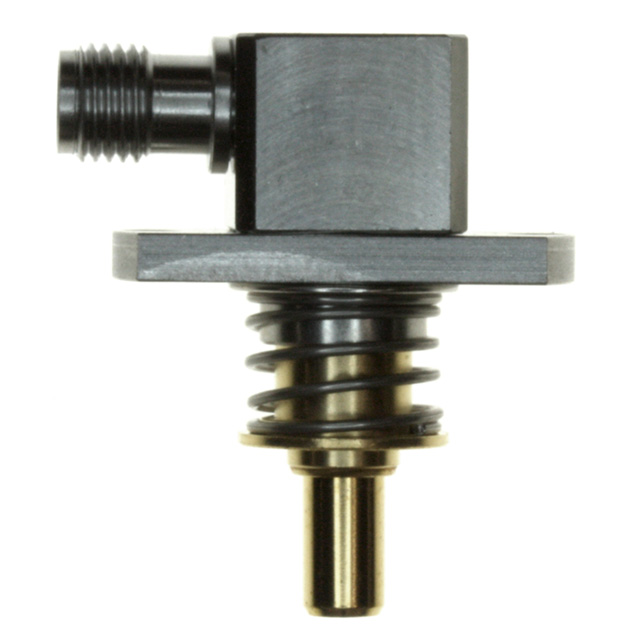

CONN ADAPT COAX PLUG TO SMA JACK
| Part | Mating Cycles | Body Material | Dielectric Material | Center Contact Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Frequency - Max [Max] | Convert From (Adapter End) | Convert To (Adapter End) | Adapter Type | Center Contact Plating | Conversion Type | Impedance | Adapter Series | Mounting Feature | Fastening Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 10000 | Beryllium Copper Stainless Steel | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Gold Passivated | 85 °C | -40 C | Panel Mount Right Angle | 6000 MHz | Coaxial Switch - 4mm Plug Dia Plug Male Pin | SMA Jack Female Socket | Plug to Jack | Gold | Between Series | 50 Ohms | SMA to Coaxial Switch | Flange | Push-Pull Threaded | Right Angle |
 Hirose Electric Co Ltd | Coaxial Switch - 4mm Plug Dia Plug Male Pin | SMA Jack Female Socket | Plug to Jack | Between Series | SMA to Coaxial Switch | Push-Pull Threaded | Right Angle |
