1628 Series

Catalog

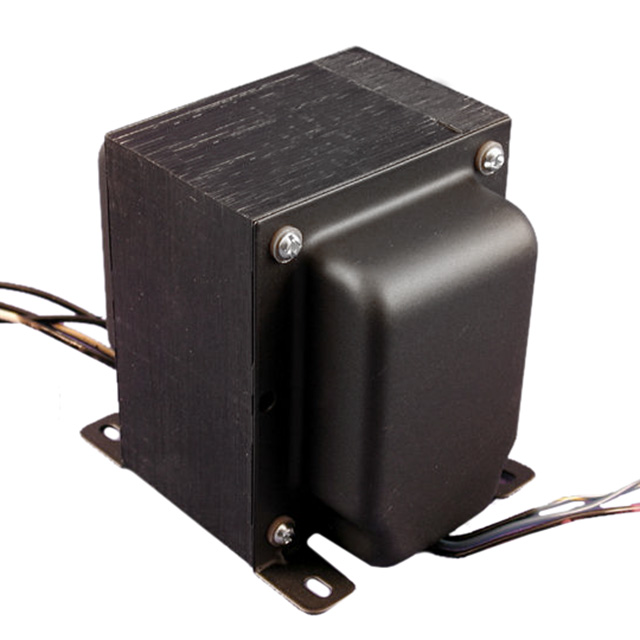

AUDIO TRANSFORMER 2000VRMS 171OHM PRIM. DCR 0.413OHM/0.514OHM/0.720OHM SEC. DCR 7 TERMINAL WIRE LEAD FLANGE MOUNT

Part	Weight	Weight	Frequency Response	Impedance - Secondary (Ohms)	Voltage - Isolation	Power Level	Transformer Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Impedance - Primary (Ohms)	Insertion Loss	Termination Style
Hammond Manufacturing 1628SEA	11 lbs	5 kg	1 dB	4 Ohms 8 Ohms 16 Ohms	2000 Vrms	30 W	Single Ended Audiophile Ultra-Linear - Tube Output	95.25 mm	3.75 "	4.5 in	114.3 mm	4.56 in	115.82 mm	20 kHz	20 Hz	Chassis Mount	5 kOhms	1 dB	Wire Leads
