HIF3BBG Series

Catalog

CONN HEADER VERT 64POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Connector Type	Overall Contact Length	Overall Contact Length	Termination	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Shape	Contact Material	Fastening Type	Contact Finish - Mating	Number of Rows [custom]	Contact Type	Shrouding	Insulation Material	Style	Contact Length - Mating	Contact Length - Mating	Insulation Color	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Insulation Height	Insulation Height
Hirose Electric Co Ltd HIF3BBG-64PA-2.54DSA(71)	78.7 µin	2 µm	8 µin	0.203 µm	All	Header	16.7 mm	0.657 in	Solder	0.1 "	2.54 mm	64	0.13 "	3.3 mm	UL94 V-0	Through Hole	-55 C	85 °C	Keying Slot	Square	Brass	Latch Lock/Eject Hooks	Gold	2	Male Pin	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	6 mm	0.236 in	Black	0.701 in	17.8 mm	Tin	200 V	0.1 in	2.54 mm

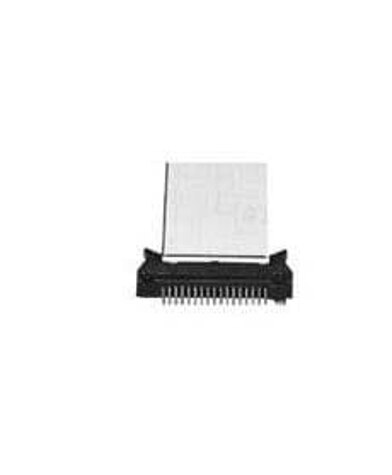

Hirose Electric Co Ltd HIF3BBG-64PA-2.54DSA(63)	78.7 µin	2 µm	8 µin	0.203 µm	All	Header			Solder	0.1 "	2.54 mm	64	0.13 "	3.3 mm	UL94 V-0	Through Hole	-55 C	85 °C	Keying Slot	Square	Brass	Latch Lock/Eject Hooks	Gold	2	Male Pin	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Board to Cable/Wire			Black	0.701 in	17.8 mm	Tin	200 V	0.1 in	2.54 mm	Varies by Wire Gauge
Hirose Electric Co Ltd HIF3BBG-60PA-2.54DS(63)	78.7 µin	2 µm	8 µin	0.203 µm	All	Header			Solder	0.1 "	2.54 mm	60	0.118 in	3 mm	UL94 V-0	Right Angle Through Hole	-55 C	85 °C		Square	Brass	Latch Lock/Eject Hooks	Gold	2	Male Pin	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Board to Cable/Wire			Black			Tin	200 V	0.1 in	2.54 mm	Varies by Wire Gauge	0.335 "	8.51 mm
Hirose Electric Co Ltd HIF3BBG-60PA-2.54DSA(63)	78.7 µin	2 µm	8 µin	0.203 µm	All	Header			Solder	0.1 "	2.54 mm	60	0.13 "	3.3 mm	UL94 V-0	Through Hole	-55 C	85 °C	Keying Slot	Square	Brass	Latch Lock/Eject Hooks	Gold	2	Male Pin	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Board to Cable/Wire			Black	0.701 in	17.8 mm	Tin	200 V	0.1 in	2.54 mm	Varies by Wire Gauge
Hirose Electric Co Ltd HIF3BBG-50PA-2.54DS(63)	78.7 µin	2 µm	8 µin	0.203 µm	All	Header			Solder	0.1 "	2.54 mm	50	0.118 in	3 mm	UL94 V-0	Right Angle Through Hole	-55 C	85 °C		Square	Brass	Latch Lock/Eject Hooks	Gold	2	Male Pin	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Board to Cable/Wire			Black			Tin	200 V	0.1 in	2.54 mm	Varies by Wire Gauge	0.335 "	8.51 mm
Hirose Electric Co Ltd HIF3BBG-64PA-2.54DS(63)	78.7 µin	2 µm	8 µin	0.203 µm	All	Header			Solder	0.1 "	2.54 mm	64	0.118 in	3 mm	UL94 V-0	Right Angle Through Hole	-55 C	85 °C		Square	Brass	Latch Lock/Eject Hooks	Gold	2	Male Pin	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Board to Cable/Wire			Black			Tin	200 V	0.1 in	2.54 mm	Varies by Wire Gauge	0.335 "	8.51 mm
Hirose Electric Co Ltd HIF3BBG-50PA-2.54DSA(63)	78.7 µin	2 µm	8 µin	0.203 µm	All	Header			Solder	0.1 "	2.54 mm	50	0.13 "	3.3 mm	UL94 V-0	Through Hole	-55 C	85 °C	Keying Slot	Square	Brass	Latch Lock/Eject Hooks	Gold	2	Male Pin	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Board to Cable/Wire			Black	0.701 in	17.8 mm	Tin	200 V	0.1 in	2.54 mm	Varies by Wire Gauge
Hirose Electric Co Ltd HIF3BBG-60PA-2.54DS(71)	78.7 µin	2 µm	8 µin	0.203 µm	All	Header			Solder	0.1 "	2.54 mm	60	0.118 in	3 mm	UL94 V-0	Right Angle Through Hole	-55 C	85 °C		Square	Brass	Latch Lock/Eject Hooks	Gold	2	Male Pin	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	6 mm	0.236 in	Black			Tin	200 V	0.1 in	2.54 mm		0.335 "	8.51 mm
