STEVAL-IFP017V3 Series

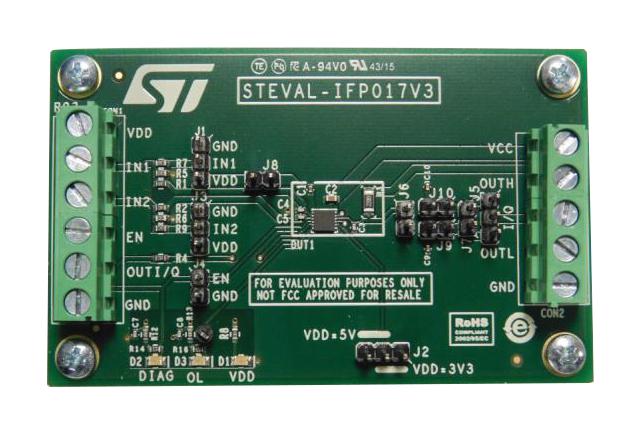

The STEVAL-IFP017V3 is an evaluation board designed to analyze the features of L6362A, including fast demagnetization, reverse polarity, overload, overtemperature, ground and supply open wire protections. The highly robust design of the L6362A allows the STEVAL-IFP017V3 to meet IEC 61000-4-4 (burst), IEC 61000-4-2 (ESD) and EN60947-5-2/IEC 61000-4-5 (surge) without additional external components. The STEVAL-IFP017V3 offers dedicated input and output screw connectors to facilitate easy and flexible connections for user requirements. The on-board red and green LEDs signal the IC status. On the STEVAL-IFP017V3, the exposed pad of the L6362A is connected to an electrically floating copper area which acts as a heatsink.
