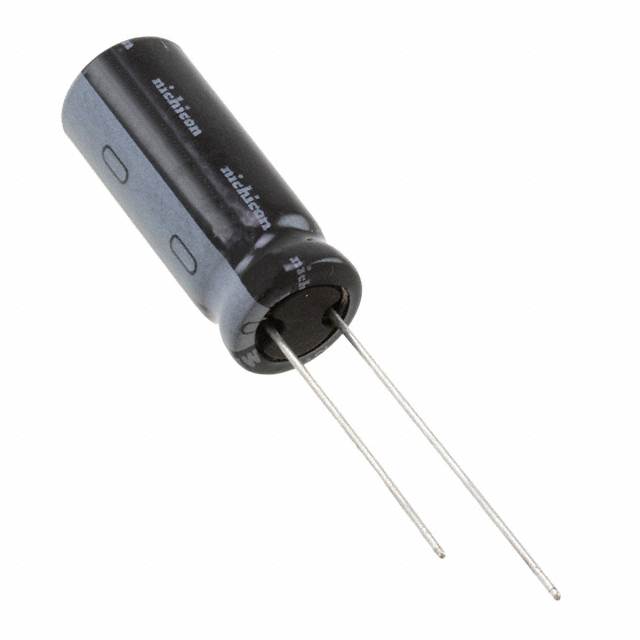

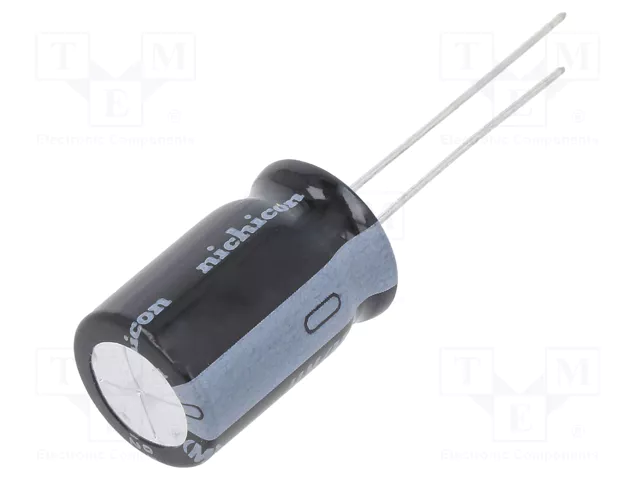

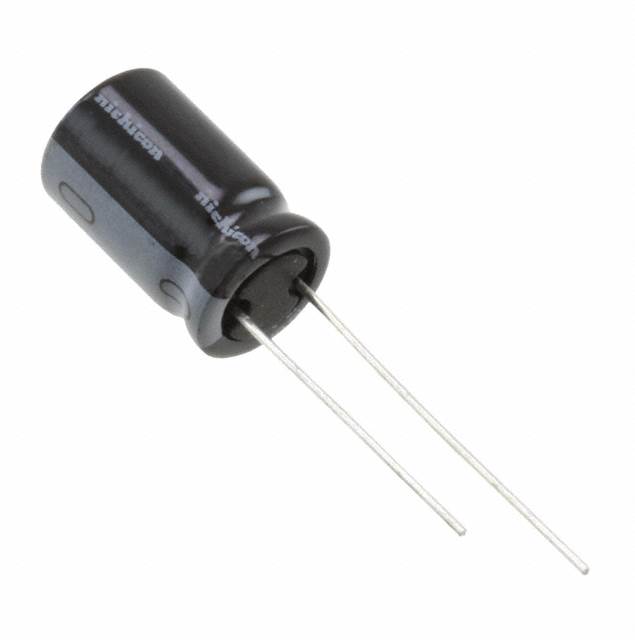

uhw Series

Manufacturer: Nichicon

Catalog

CAP ALUMINUM LYTIC 2200UF 35V 20% (12.5 X 35.5MM) RADIAL 5MM 4.12A 10000H 105°C BULK

Part	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Applications	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Mounting Type	Lifetime @ Temp.	Tolerance	Capacitance	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon UHW1V222MHD	4.12 A	3.09 A	General Purpose	0.197 "	5 mm	-40 C	105 ░C	11 mOhms	0.492 in	12.5 mm	Can Radial	35 V	1.476 in	37.5 mm	Polar	Through Hole	10000 Hrs	20 %	2200 µF
Nichicon UHW1H271MPD	2.06 A	1.03 A	General Purpose	0.197 "	5 mm	-40 C	105 ░C	30 mOhms	0.394 in	10 mm	Can Radial	50 VDC			Polar	Through Hole	10000 Hrs	20 %	270 µF	0.866 in	22 mm
Nichicon UHW1C122MPD6	2 A	1.2 A	General Purpose	0.197 "	5 mm	-40 C	105 ░C	30 mOhms	0.394 in	10 mm	Can Radial	16 V		0.689 in	Polar	Through Hole	10000 Hrs	20 %	1.2 mF			17.5 mm
Nichicon UHW1K102MHD	2.86 A	1.716 A	General Purpose	0.295 in	7.5 mm	-40 C	105 ░C	30 mOhms	0.63 in	16 mm	Can Radial	80 V	1.457 in		Polar	Through Hole	10000 Hrs	20 %	1000 µF				37 mm
Nichicon UHW2A681MHD	2.86 A	1.716 A	General Purpose	0.295 in	7.5 mm	-40 C	105 ░C	30 mOhms	0.63 in	16 mm	Can Radial	100 V	1.476 in	37.5 mm	Polar	Through Hole	10000 Hrs	20 %	680 µF
Nichicon UHW1J391MHD6	1.99 A	995 mA	General Purpose	0.197 "	5 mm	-40 C	105 ░C	65 mOhms	0.492 in	12.5 mm	Can Radial	63 V			Polar	Through Hole	10000 Hrs	20 %	390 µF					0.846 "	21.5 mm
Nichicon UHW1E821MPD6	2 A	1.2 A	General Purpose	0.197 "	5 mm	-40 C	105 ░C	30 mOhms	0.394 in	10 mm	Can Radial	25 VDC		0.689 in	Polar	Through Hole	10000 Hrs	20 %	820 µF			17.5 mm
Nichicon UHW1A122MPD	2 A	1.2 A	General Purpose	0.197 "	5 mm	-40 C	105 ░C	30 mOhms	0.394 in	10 mm	Can Radial	10 V		0.689 in	Polar	Through Hole	10000 Hrs	20 %	1.2 mF			17.5 mm
Nichicon UHW1E562MHD	4.2 A	3.36 A	General Purpose	0.295 in	7.5 mm	-40 C	105 ░C	10 mOhms	0.63 in	16 mm	Can Radial	25 VDC	1.476 in	37.5 mm	Polar	Through Hole	10000 Hrs	20 %	5.6 mF
Nichicon UHW2A121MPD	1.62 A	648 mA	General Purpose	0.197 "	5 mm	-40 C	105 ░C	72 mOhms	0.394 in	10 mm	Can Radial	100 V	1.043 in	26.5 mm	Polar	Through Hole	10000 Hrs	20 %	120 µF
